8

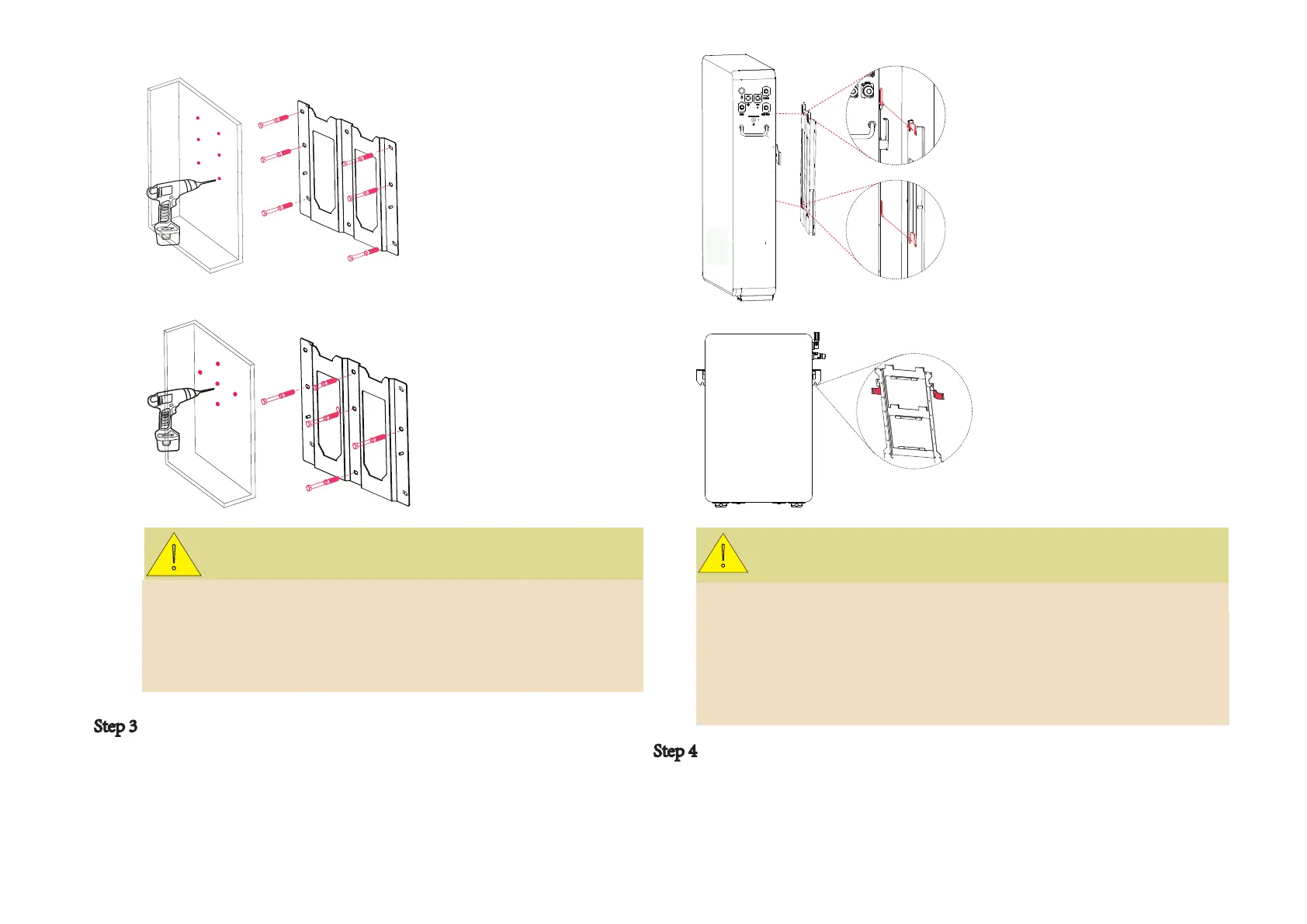

There are two spot drilling proposals available.
For installation on a wall with its main supporting beams at a distance
of 16 inches, it is recommended to adopt the first drilling spots.
For wall with its main supporting beam at a distance of 24 inches, it is
recommended to adopt the second drilling spots.
Proposal 1
Proposal 2
!
WARNING
Step 3 Fix battery on bracket.
Rotate the left latch leftward and the right latch rightward until they
keep perpendicular to the battery. Install battery from the top down
and lock the connection part of battery with the support plate of
bracket.
Rotate the left latch
rightward until the notch
locks limiting pin, rotate
the right latch leftward until
the notch locks limiting pin
too.
Leave a minimum clearance of 133mm before the front surface of battery.
In order to guarantee a stable connection between battery and bracket,
please visually check if the two upper joints are fixed. Try to move the
lower part of battery away from wall. The connection is proved qualified if
the battery cannot be moved at all. Otherwise, please connect the battery
and bracket again until confirming a fixed connection.
Step 4 Insert power cable and network cable into battery terminals.
Check and confirm battery is well fixed to wall. Plug the power
cables into battery terminals and DC Breaker. Plug network cable A
into network ports of battery and PCS. Please refer to Section 4.2 for
cable making details.
!
CAUTION
To Next Page
