21

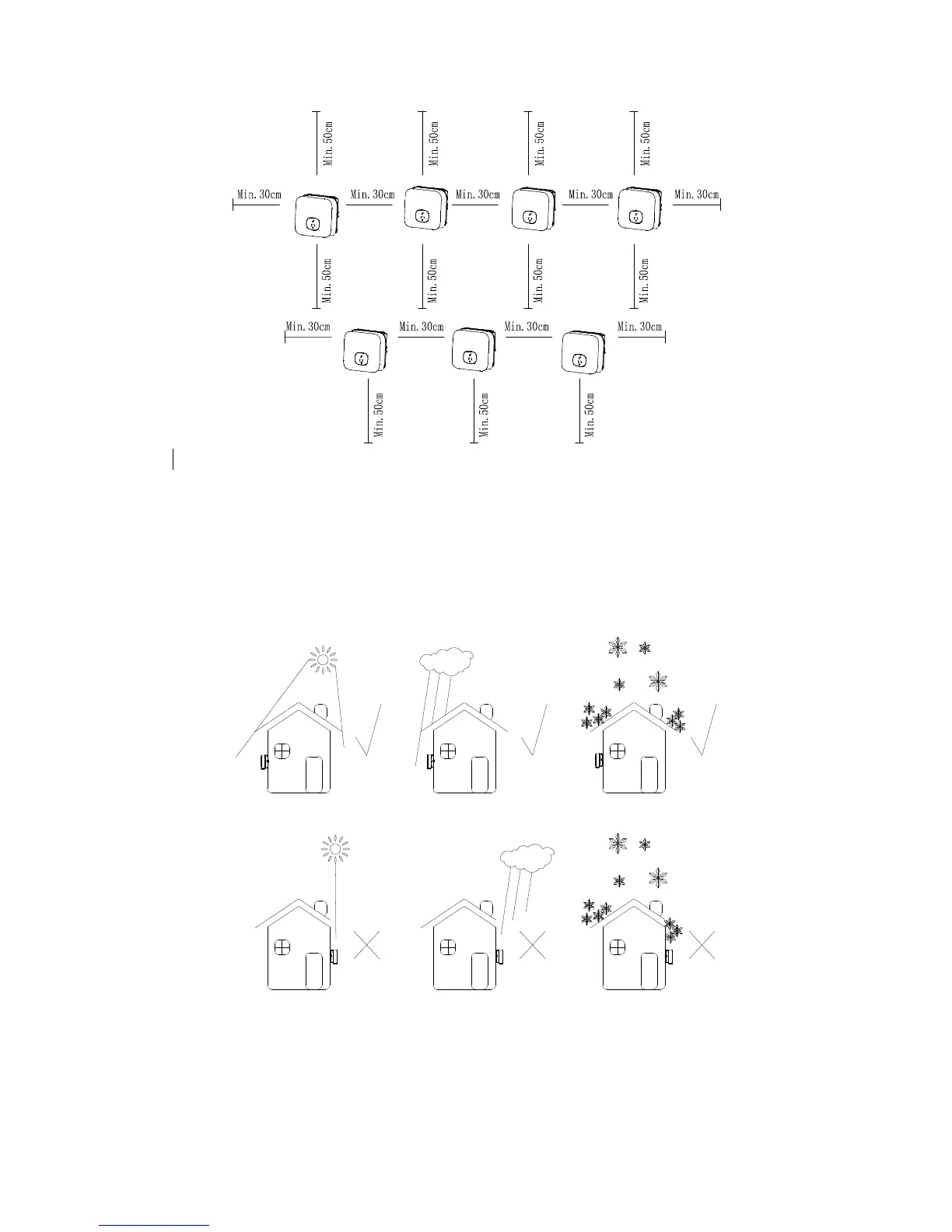

Ambient dimensions of series inverters
There must be sufficient clearance between the individual inverters to
ensure that the cooling air of the adjacent inverter is not taken in.
If necessary, increase the clearance spaces and make sure there is enough
fresh air supply to ensure sufficient cooling of the inverters.
The inverter cant install to solarizationdrenchfirn location. We suggest that the inverters should
be installed at the location with some cover or protection
Please make sure the inverter is installed at the right place.The inverter
cant install close to trunk

Other manuals for Growatt MIN 4200TL-X

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt MIN 4200TL-X and is the answer not in the manual?

Growatt MIN 4200TL-X Specifications

General IconGeneral
Product colorWhite
Overvoltage categoryCAT II
Power protection featuresOver voltage, Reverse polarity, Short circuit
International Protection (IP) codeIP65
Noise level35 dB
Product type-
Maximum power4200 W
Output current19 A
Number of phases1
Output frequency50/60 Hz
Starting voltage100 V
MPP voltage range80 - 550 V
Output power capacity (max)4.2 kVA
Input operation voltage (max)550 V
Input operation voltage (min)80 V
Output operation voltage (max)280 V
Output operation voltage (min)180 V
Total Harmonic Distortion (THD)3 %
Wi-FiYes
Display technologyOLED
Operating temperature (T-T)-25 - 60 °C
Weight and Dimensions IconWeight and Dimensions
Depth160 mm
Width375 mm
Height350 mm
Weight10800 g
