29
WARNING

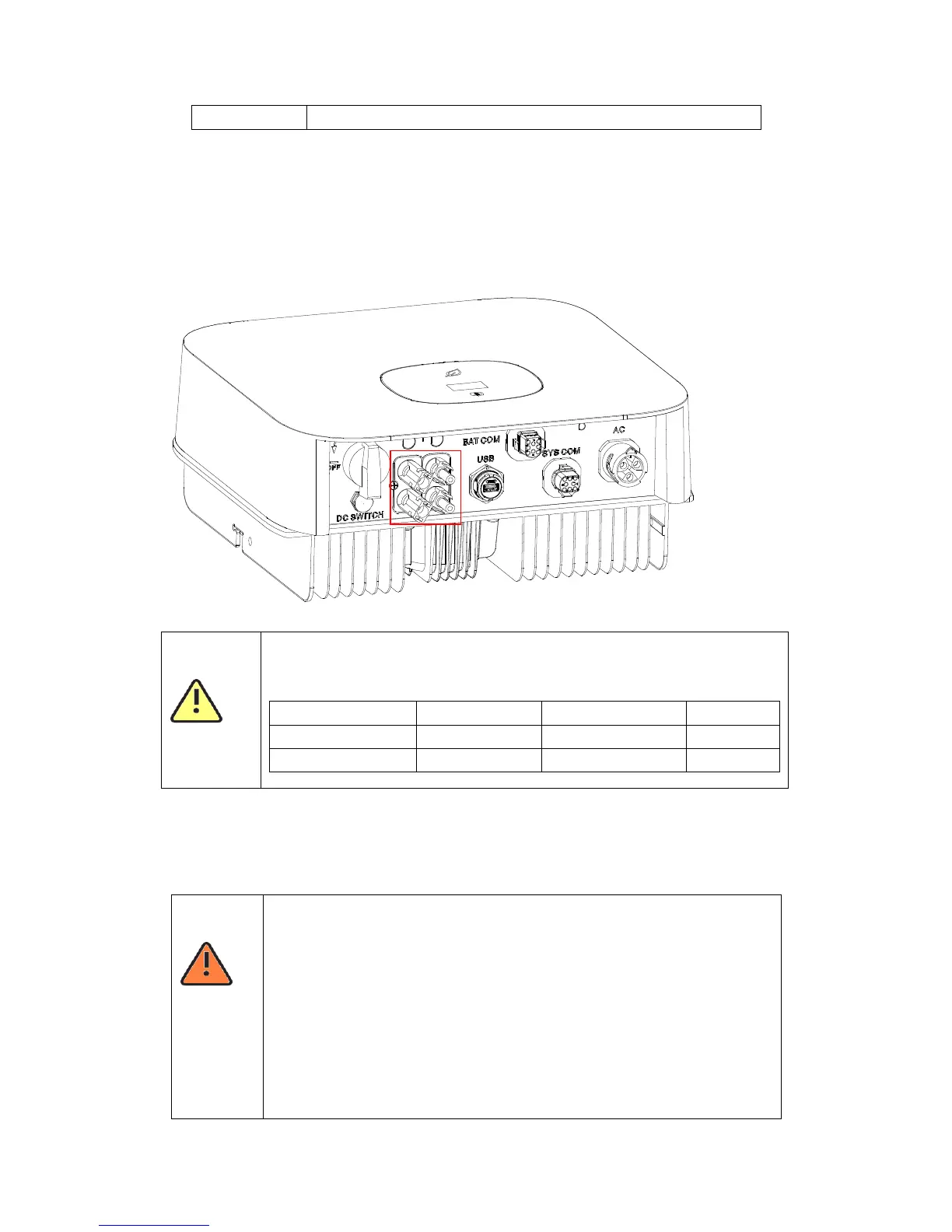

The MIN TL-X single-phase inverter has 2 independent input : PV1 & PV2
Notice that the connectors are in paired (male and female connectors). The connectors
for PV arrays and inverters are VP-D4 connectors;
CAUTION
If the inverter is not equipped with a DC switch but this is mandatory in the
country of installation, install an external DC switch.
The following limit values at the DC input of the inverter must not be exceeded:
Types
Max current PV1
Max current input B
Max voltage
2500-3600 TL-X
12.5A
12.5A
500V
4200-6000 TL-X
12.5A
12.5A
550V
6.4.2 Connecting the PV Array (DC input)
DANGER
Danger to life due to lethal voltages!
PV array supplies d.c voltage to inverter when exposed to light,before connecting
the PV array, conver some light screens above PV arrays,ensure that the DC
switch and AC breaker are disconnect from the inverter. NEVER connect or
disconnect the DC connectors under load.
Make sure the maximum open circuit voltage(Voc) of each PV string is
less than the maximum input voltage of the inverter.
Check the design of the PV plant. The Max. open circuit voltage, which can
occur at solar panels temperature of -10, must not exceed the Max. input

Other manuals for Growatt MIN 4200TL-X

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt MIN 4200TL-X and is the answer not in the manual?

Growatt MIN 4200TL-X Specifications

General IconGeneral
Product colorWhite
Overvoltage categoryCAT II
Power protection featuresOver voltage, Reverse polarity, Short circuit
International Protection (IP) codeIP65
Noise level35 dB
Product type-
Maximum power4200 W
Output current19 A
Number of phases1
Output frequency50/60 Hz
Starting voltage100 V
MPP voltage range80 - 550 V
Output power capacity (max)4.2 kVA
Input operation voltage (max)550 V
Input operation voltage (min)80 V
Output operation voltage (max)280 V
Output operation voltage (min)180 V
Total Harmonic Distortion (THD)3 %
Wi-FiYes
Display technologyOLED
Operating temperature (T-T)-25 - 60 °C
Weight and Dimensions IconWeight and Dimensions
Depth160 mm
Width375 mm
Height350 mm
Weight10800 g
