Growatt MIN 4200TL-X User Manual

25
unit for each inverter in order to ensure that the inverter can be safely disconnected
under load.
We suggest you choice the AC breaker rating current in this table:
MIN 2500 TL-X
16A/230V
MIN 3000 TL-X
16A/230V
MIN 3600 TL-X
20A/230V
MIN 4200 TL-X
25A/230V
MIN 4600 TL-X
25A/230V
MIN 5000 TL-X
32A/230V
MIN 6000 TL-X
32A/230V
The AC wiring step:

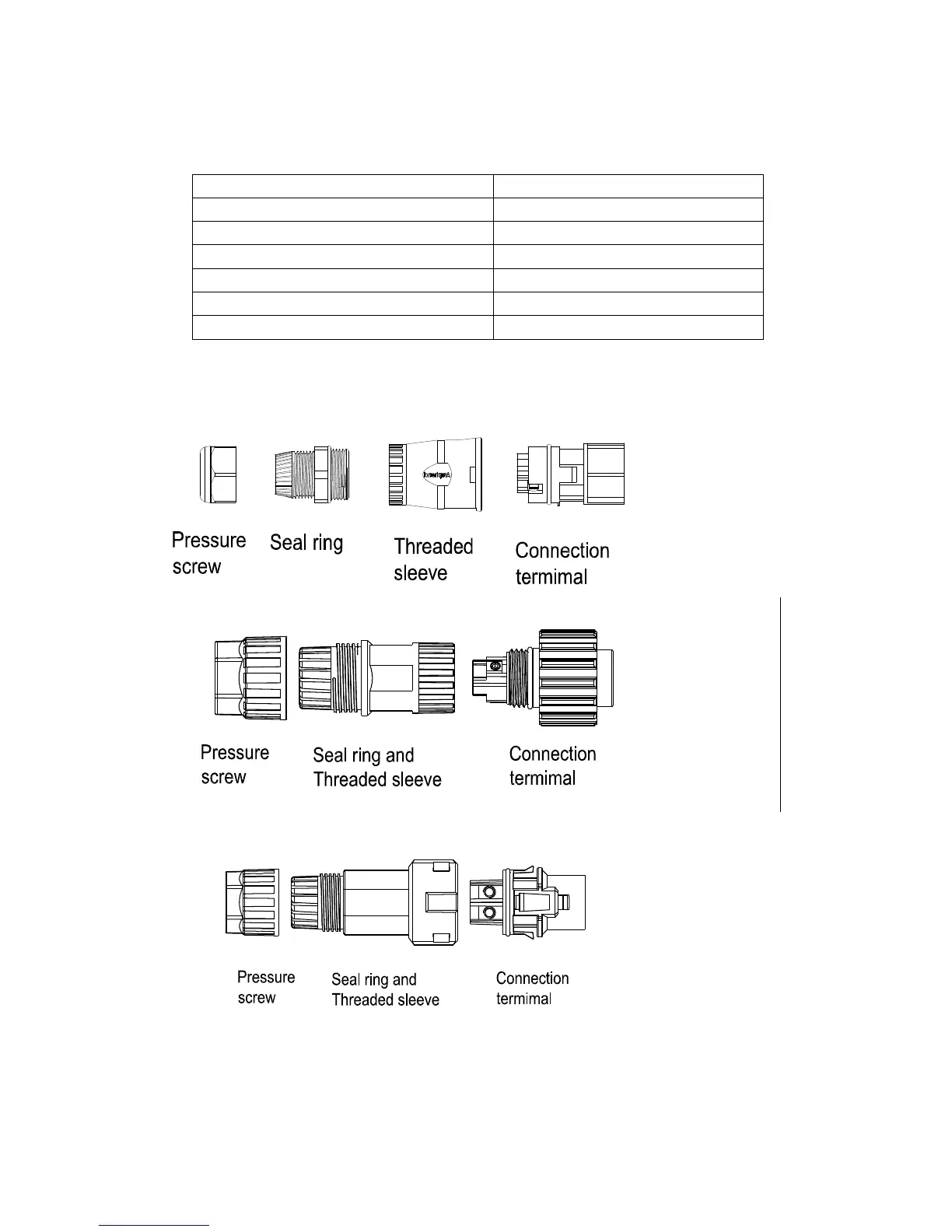

1. Uninstall the parts of the AC connection plug from the accessory bag.
2. Insert the stripped and bared cable through pressure screw, seal ring, threaded sleeve in
sequence, insert cables into connection terminal according to polarities indicates on it and
tighten the screws firmly. Please try to pull out the wire to make sure the it’s well connected.

Growatt MIN 4200TL-X Specifications

General

Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Reverse polarity, Short circuit
International Protection (IP) code	IP65
Noise level	35 dB
Product type	-
Maximum power	4200 W
Output current	19 A
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
MPP voltage range	80 - 550 V
Output power capacity (max)	4.2 kVA
Input operation voltage (max)	550 V
Input operation voltage (min)	80 V
Output operation voltage (max)	280 V
Output operation voltage (min)	180 V
Total Harmonic Distortion (THD)	3 %
Wi-Fi	Yes
Display technology	OLED
Operating temperature (T-T)	-25 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
