Growatt MIN 5000TL-X User Manual

7
8

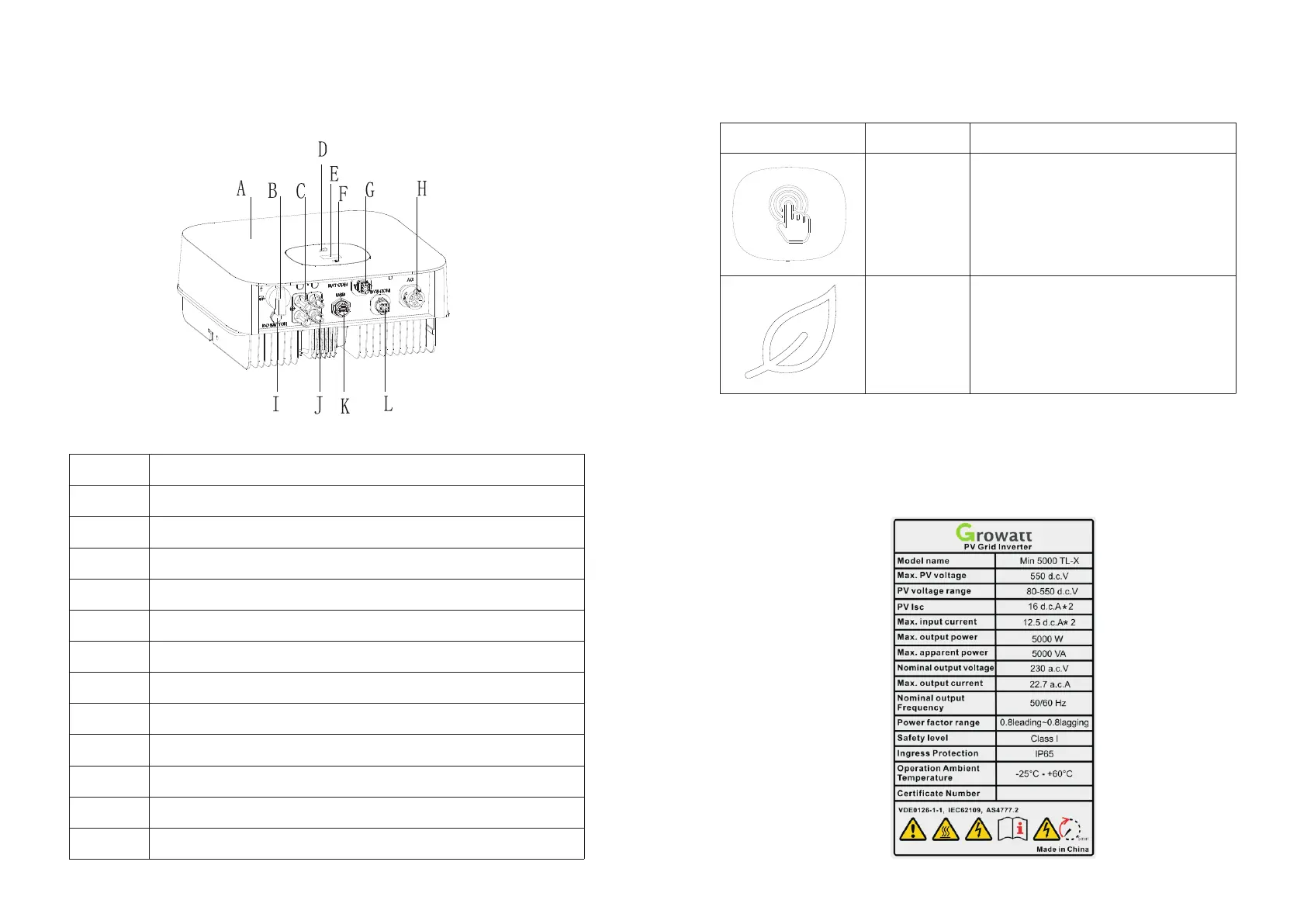

3 Product description
Symbol on the inverter
3.1 TL-X Overview
3.2 Type label
A
B
C
D
E
F
G
H
I
J
K
L
Position Description
COVER
DC SWITCH
PV INPUT +
LED
OLED
TOUCH BUTTON
DRM PORT (Australia or EU)
AC OUTPUT
VENTILATION VALVE
PV INPUT-
USB PORT
COM PORT
Symbol
Description Explanation
Touch symbol
Touch button.We can switch the OLED
display and set parameter by touching.
Inverter status
symbol
Indicates inverter operation status:
Red:Fault.
Green:Nomal.
Red leaf flash:Warning or DSP Programming.
Green leaf flash:M3 Programming.
The type labels provide a unique identification of the inverter (The type of product,
Device-specific characteristics, Certificates and approvals). The type labels are on the
left-hand side of the enclosure.

Growatt MIN 5000TL-X Specifications

General

Purpose	Solar panel
Efficiency	98.4 %
Noise level	35 dB
Output power	5000 W
Input current	22.7 A
Input voltage	80 - 500 V
Output voltage	180 - 280 V
Input frequency	50/60 Hz
Power supply type	Indoor
Power current type	DC1-to-DC2
Maximum input power	7000 W
Maximum input voltage	500 V
Nominal output voltage	230 V
International Protection (IP) code	IP65
Display type	OLED
Product color	White
Built-in display	Yes
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
