Procedure:

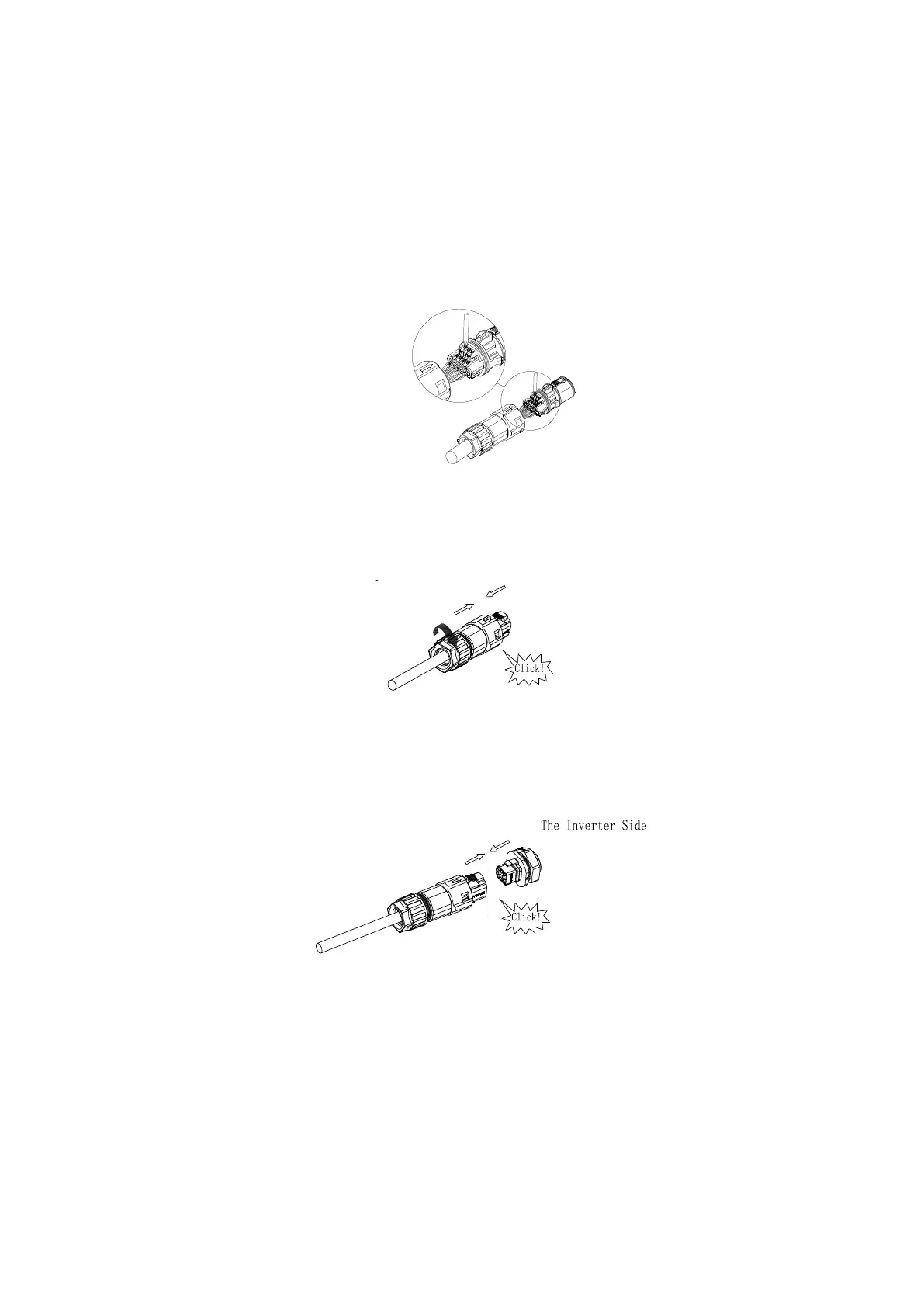

Step 1 Insert the stripped and bared cable through pressure screw, seal ring, threaded
sleeve in sequence, insert cables into connection terminal according to number
indicates on it and tighten the screws firmly. Please try to pull out the wire to make
sure the it’s well connected.
Step 2 Push the threaded sleeve into the socket, Tighten up the cap on the
terminal.
Step 3 Push the threaded sleeve to connection terminal until both are locked
tightly on the inverter.
Uninstall signal connector
Step 1 Press the fasteners and pull it out from the inverter.
