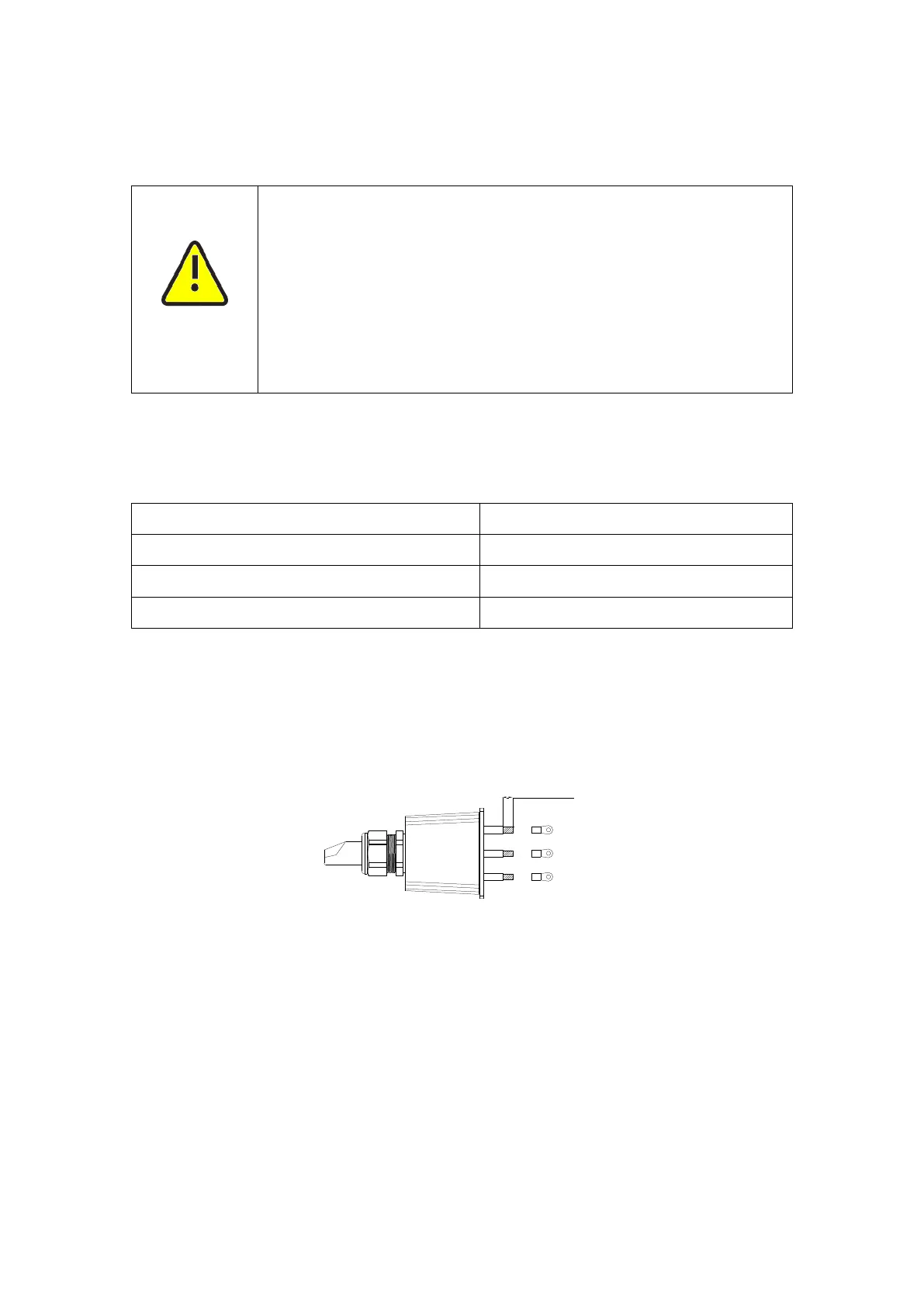

6.2 Wiring AC Output
You must install a separate single-phase circuit-breaker or other
load disconnection unit for each inverter in order to ensure that
the inverter can be safely disconnected under load.
NOTE :The inverter has the function of detecting residual current
and protecting the inverter against residual current. If your inverter
must equip a AC breaker which has the function of detecting residual
current ,you must choose a Type A RCD breaker with the rating
residual current more than 300mA.
You must install a separate single-phase circuit-breaker or other load disconnection
unit for each inverter in order to ensure that the inverter can be safely disconnected
under load.
We suggest you choice the AC breaker rating current in this table:
The AC wiring step:
1. Uninstall the parts of the AC connection plug from the accessory bag.
2. Pass the 3 wires (L or L1,N or L2 and PE wires) through the AC shield,connect
them to the power grid, and then crimp the OT terminal.
3. Lock the AC cable to the corresponding AC terminal.
