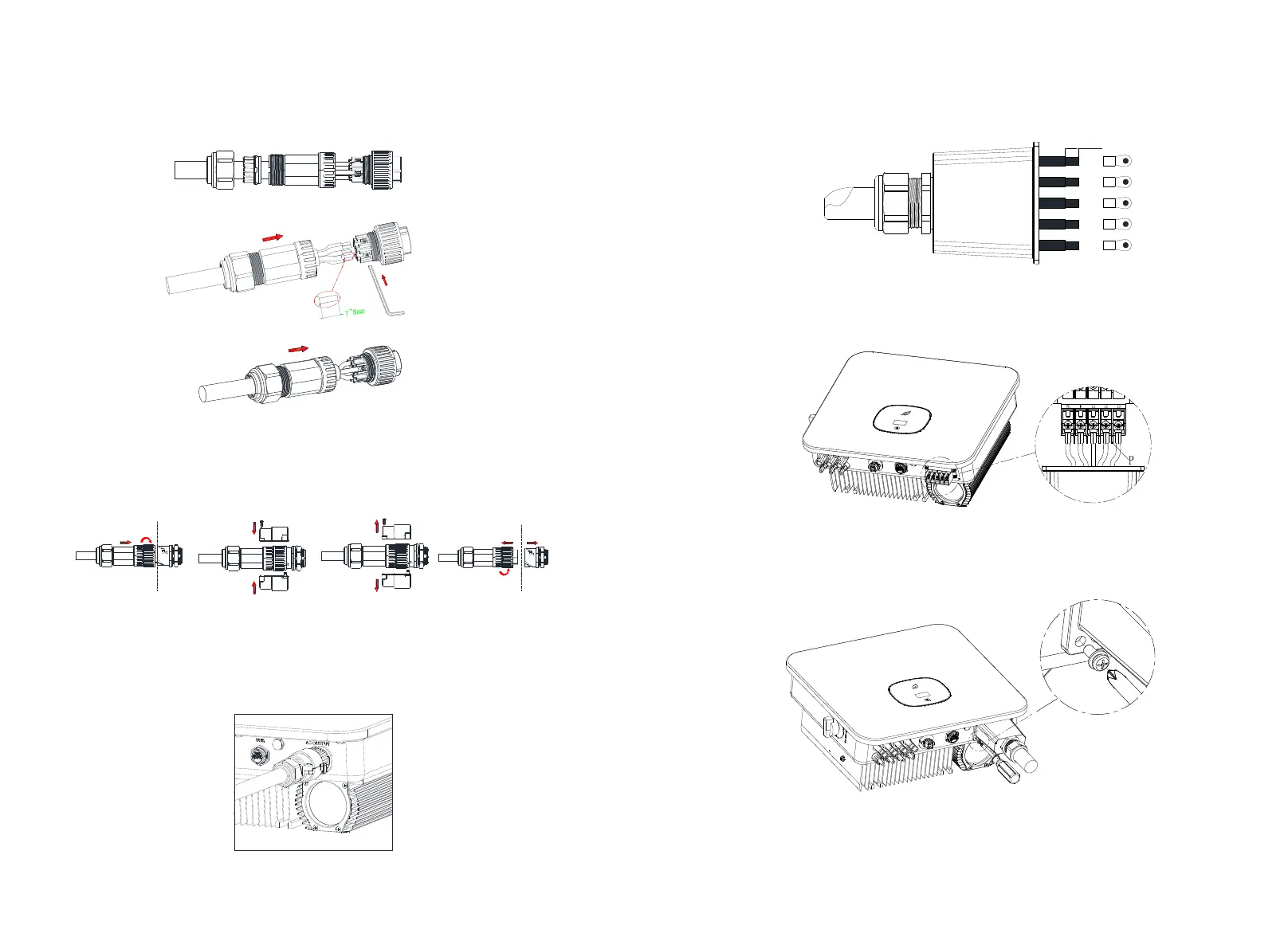

AC connection steps (For MOD 7-15K use only):
1.Pass the 5 wires (A,B,C,N and PE wires) through the AC shield,crimp the O/U terminal
and connect to the screw terminals on the AC connector.
a
b
c
2. Lock the AC cable to the corresponding AC terminal.
Fig 6.5 AC output wiring diagram
3.Lock the protective cover on the inverter frame, and finally tighten the protective cover
hole.
Fig 6.6 Wiring diagram of AC terminal
Fig 6.7 AC quick connection diagram
AC connection steps(just for Vietnam models):
1.Pass the 5 wires (A,B,C,N and PE wires) through the AC shield,connect them to the
power grid, and then crimp the O/U terminal.
2. Lock the AC cable to the corresponding AC terminal.
3.Lock the protective cover on the inverter frame, and finally tighten the protective cover
hole.
Fig 6.8
Fig 6.9
Fig 6.10
10-12mm
19
20
Th eInve rterSi de
Th eInver terSid e
