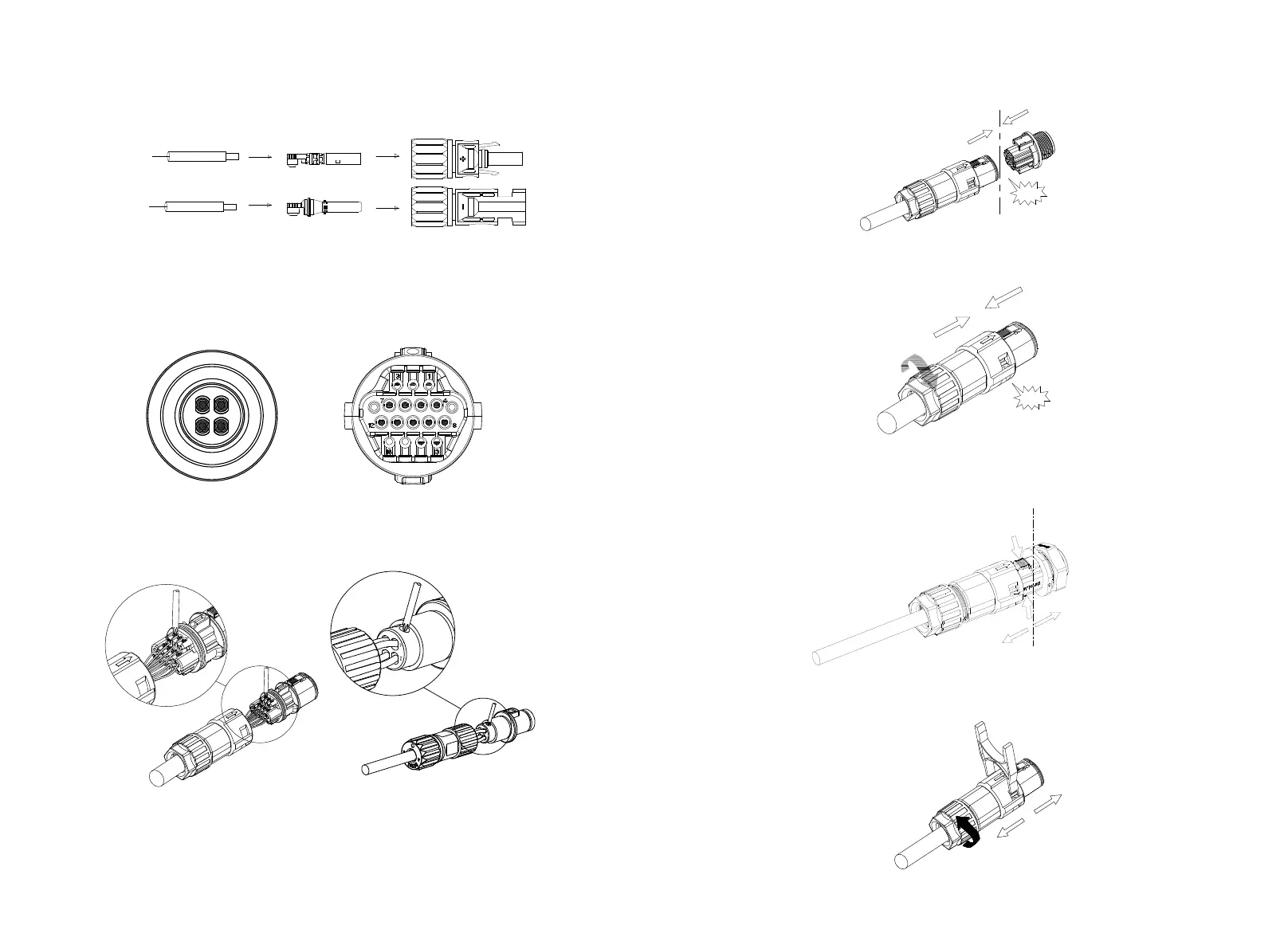

6.4 Connect the signal cable
The MOD series inverter has an 4-Pin or 16-Pin signal connector except Vietnam
models.The client signal line port is as follows:
1.Strip the cable 10mm through the waterproof gland, thread sleeve, and tighten the
screws.
Connect DC terminal
Cables
Cables
Positive metal terminal
Positive connector
Negative connector
Negative metal terminal
4~6mm²
4~6mm²
Fig 6.12
Fig 6.13
Fig 6.14
1
2
3
4
A just for Vietnam models
B just for Vietnam models
B
A
Fig 6.15
Fig 6.16
Fig 6.17
Fig 6.18
2. Push the threaded sleeve into the socket and tighten the waterproof gland.
3.Connect the client to the inverter plug until both are tightly locked on the inverter.
Remove the signal connector
1.Press down the fastener and pull it out of the inverter.
the inverter side
2. Insert the H-shaped tool and pull it out of the socket.
Click!
Click!
Inverter side
