Page 14/43

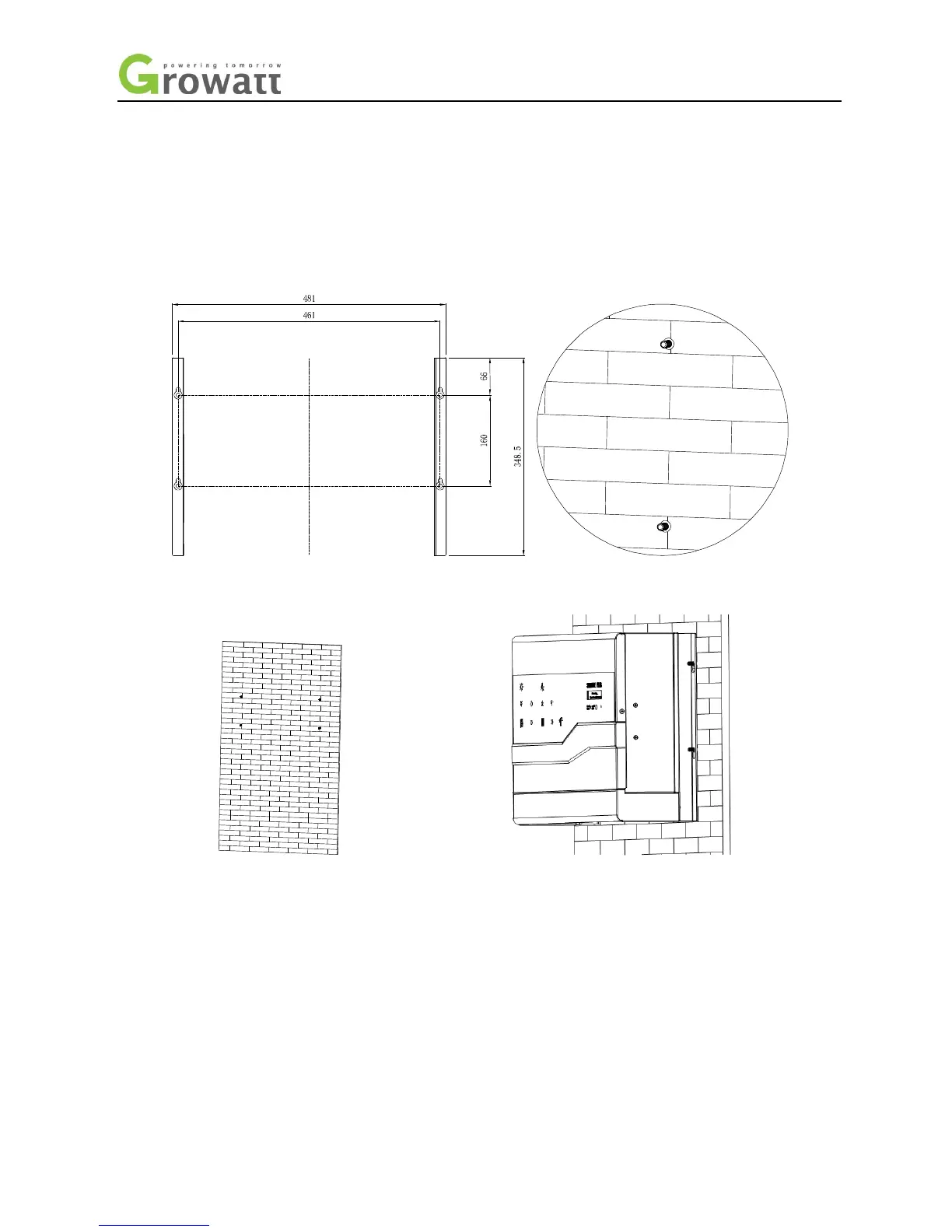

1. Project the machine’s probably size on the wall, Make sure the drill position（As the chart 5.5a below）
2. Drill setscrew of M6 on the wall（As the chart 5.5b below）
3. Install four setscrews of M6（As the chart 5.5c below）
4. Hang the energy storage machine on the four setscrews（As the chart 5.5d below）
5.Lock the nut of setscrew（As the chart 5.5e below）
6. The whole installation has finished（As the chart 5.5f below）
a) b)
c) d)
