5.4.4 Installation of sensor connection
There is a current transformer in sp 2000 monitoring the power consumption situation of residential users.
The current transformer should be installed at the wire-inlet side.
Chart 5.19

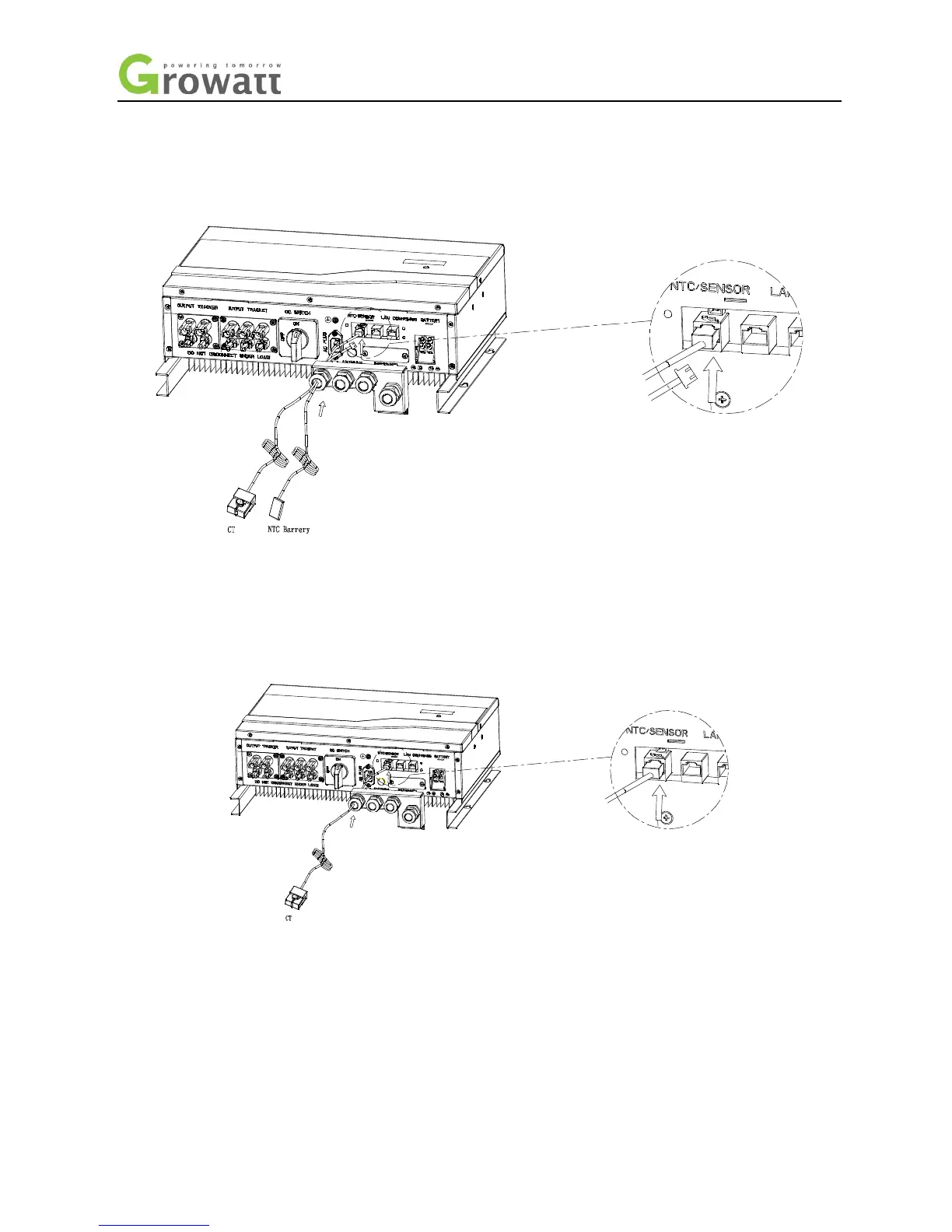

Installation of Sensor for lead-acid battery as the diagram above.
When it is unnecessary to install the NTC battery, please insert the RJ45 plug of the sensor into the section marked
with the words: NTC/SENSOR.
Chart 5.20
Remark: Sensor lead wire (5m in length) specification: RJ45, standard LAN line (one end with 8P modular plug, the
other connected with sensor). But if the length is not enough, customer can add cable, so the length can be
increased to 15m, the operation is as follow chart:
