Grundfos CRN Series Product Guide

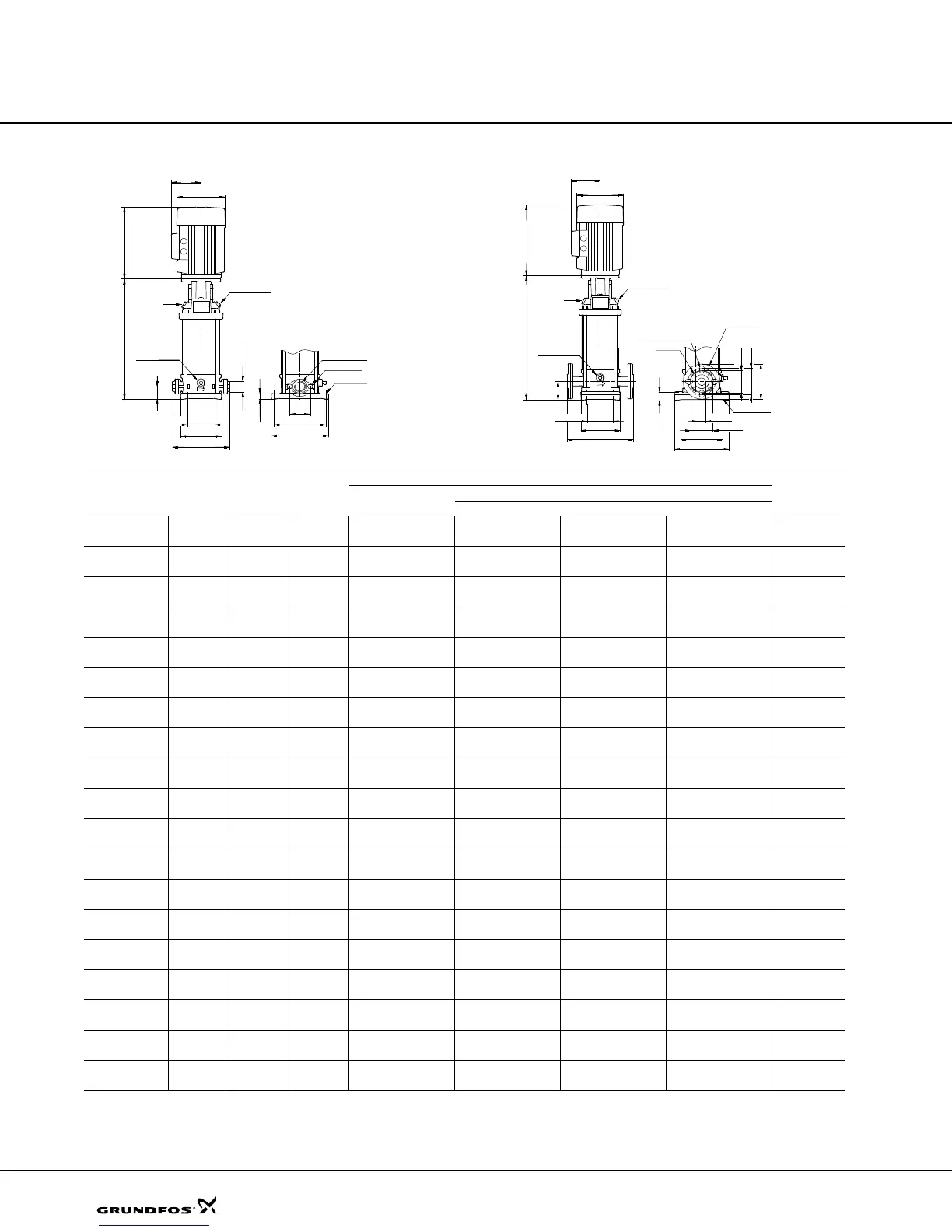

Technical data
28
All dimensions in inches unless otherwise noted.
*Oval flanged pump B1 and B1+B2 dimension is one inch less than ANSI flanged pump and weight is approximately 9 lbs. less.
• Available.
TM03 1452 2205
G 1/2 PLUG
B1
WITH 1/4"TAP
FOR GAUGE/
SENSOR
PRIMING
PORT (G 1/2)
DISCHARGE
SUCTION AND
1"NPT (F)
PLUG (G 1/2)
DRAIN
3"
M10 x 40
4 x 1/2"
ø1 11/16"
2"
13/16"
5 15/16"
3 15/16"
8 5/16"
7 1/16"
8 5/16"
B2
D2
D1
TM03 1453 2205
G 1/2 PLUG
B1
WITH 1/4"TAP
FOR GAUGE/
SENSOR
PRIMING
PORT (G 1/2)
DISCHARGE
SUCTION AND
1 1/4"300 lb.R.F.
PLUG (G 1/2)
DRAIN
3"
3/4 x 1 1/16"
ø1 1/4"
ø5 1/2"
1 3/8"
5 15/16"
3 15/16"
9 7/8"
ø4 1/8"
ø3 1/2"
7 1/16
8 1/4"
4 x ø1/2"
ø1/2"
ø3 3/8"
B2
D2
D1
Pump type
P2
[hp]
Ph. Oval*
ANSI dimensions [inch]
Ship Wt.
[lbs.]
B1
TEFC
D1 D2 B1+B2
CRI 1s-2 1/3
1•
12.09 6.19 5.18 21.38 64
3•
12.09 5.55 4.57 19.53 62
CRI 1s-3 1/3
1•
12.09 6.19 5.18 21.38 64
3•
12.09 5.55 4.57 19.53 62
CRI 1s-4 1/3
1•
12.80 6.19 5.18 22.09 65
3•
12.80 5.55 4.57 20.24 63
CRI 1s-5 1/3
1•
13.50 6.19 5.18 22.79 66
3•
13.50 5.55 4.57 20.94 64
CRI 1s-6 1/2
1•
14.21 6.19 5.18 23.50 70
3•
14.21 5.55 4.57 21.65 65
CRI 1s-7 1/2
1•
14.92 6.19 5.18 24.21 71
3•
14.92 5.55 4.57 22.36 65
CRI 1s-8 1/2
1•
15.63 6.19 5.18 24.92 72
3•
15.63 5.55 4.57 23.07 66
CRI 1s-9 3/4
1•
16.34 6.19 5.18 26.25 77
3•
16.34 5.55 4.57 23.78 68
CRI 1s-10 3/4
1•
17.05 6.19 5.18 26.96 78
3•
17.05 5.55 4.57 24.49 69
CRI 1s-11 3/4
1•
17.76 6.19 5.18 27.67 79
3•
17.76 5.55 4.57 25.20 70
CRI 1s-12 3/4
1•
18.46 6.19 5.18 28.37 79
3•
18.46 5.55 4.57 25.90 70
CRI 1s-13 1
1•
19.17 7.19 5.73 30.36 96
3•
19.17 5.55 4.57 26.61 71
CRI 1s-15 1
1•
20.59 7.19 5.73 31.78 97
3•
20.59 5.55 4.57 28.03 73
CRI 1s-17 1 1/2
1•
22.01 7.19 5.73 33.69 102
3•
22.01 5.55 4.57 30.63 79
CRI 1s-19 1 1/2
1-
23.43 7.19 5.73 35.11 104
3-
23.43 5.55 4.57 32.05 81
CRI 1s-21 1 1/2
1-
24.84 7.19 5.73 36.52 106
3-
24.84 5.55 4.57 33.46 82
CRI 1s-23 1 1/2
1-
26.26 7.19 5.73 37.94 107
3-
26.26 5.55 4.57 34.88 84
CRI 1s-25 2
1-
27.68 7.19 5.73 40.24 120
3-
27.68 7.01 4.33 38.90 111
CRI 1s-27 2
1-
29.09 7.19 5.73 41.65 122
3-
29.09 7.01 4.33 40.31 113
CRI 1s

Grundfos CRN Series Specifications

General

Pump Type	Centrifugal, multistage
Material	Stainless steel (AISI 304 or 316)
Applications	Water supply, pressure boosting, industrial processes
Impeller Material	Stainless steel (AISI 304 or 316)
Connections	Flanged or threaded
Speed	2900 rpm
Temperature Range	-10°C to +120°C
Inlet/Outlet Size	DN 25 to DN 100
