56
Product Guide

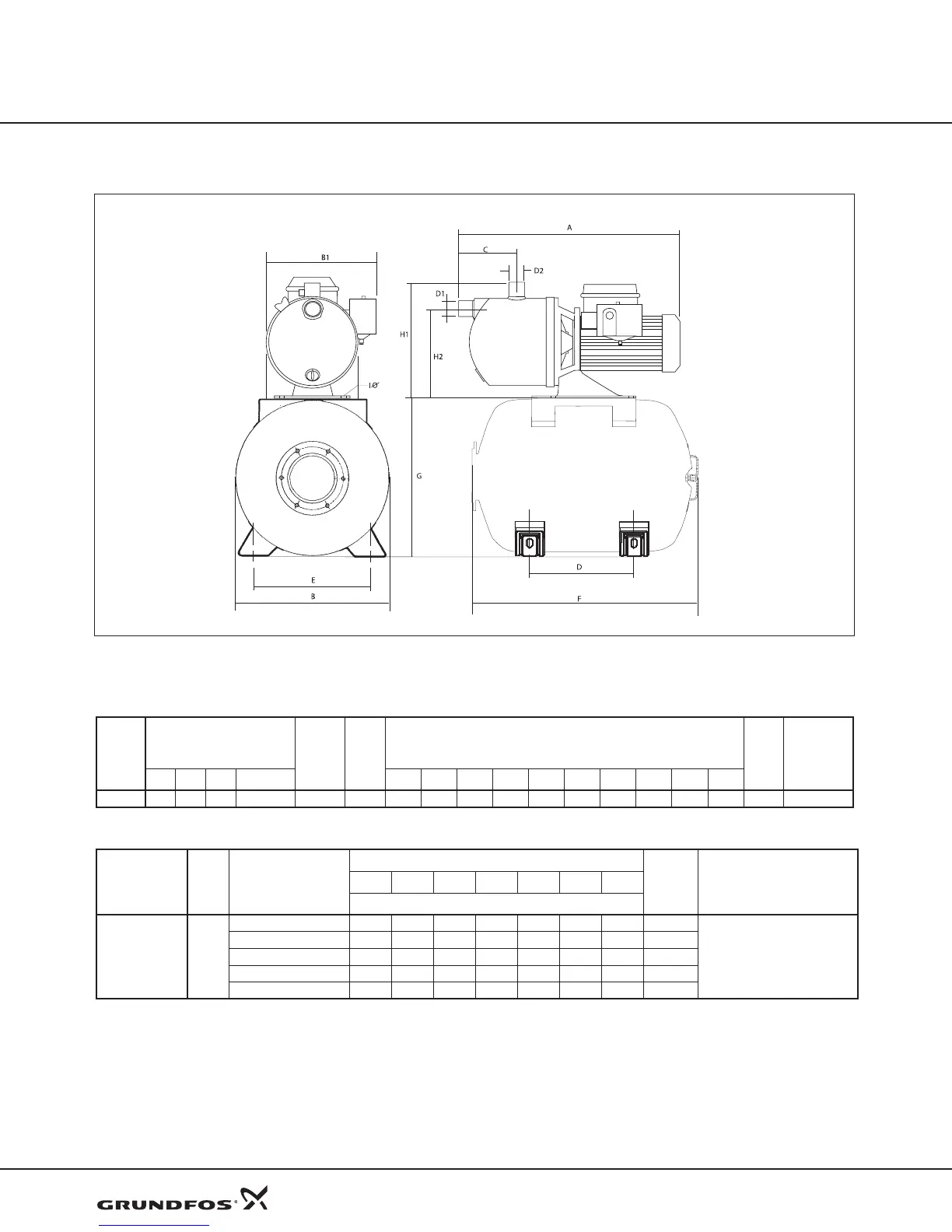

Dimensional Drawings
Dimensions and Weights
Pump
Type
Motor Data
D1
Suction
NPT
D2
Disch.
NPT
Dimensions (inches) Ship
Wt.
(lbs)
Ship Vol.
(Cu Ft.)
HP S.F. PH Volts A B B1 C E F G H1 H2 IØ
JPS2A 1/2 1.6 1 115 or 230 1’’ 1’’ 14.8 11.9 9.3 3.7 7.1 15.2 11.9 8.5 6.0 0.38 45.0 5.0
Shallow Well Performance Chart
Model HP Depth to Water
Discharge Pressure (PSI)
Shut-
off
(PSI)
Pressure Switch Settings
(PSI)
20 30 35 40 45 50 55
Capacities (U.S. gpm)*
JPS2A 1/2
5 15 13 11 8 6 4 2 62
30-50
10 14 12 10 7 5 3 1 59.5
15 13 11 9 6 4 2 57
20 10 10 8 5 3 1 54.5
25 8 8 7 4 2 52
* Capacities given are for near-sea level installations.
JPS2A Pump Package*
Stainless Steel Body Construction
*Available in Canada
Company name:
Prepared by:
Phone number: ( ) -
Fax number: ( ) -
Submittal Data Sheet
Date: Page 1 of:
Quote number:
Project title: Client name:
Reference number: Client number:
Client contact: Client phone no: ( ) -
For: Unit:
Site: Service:
Address: City: State: Zip Code:
Technical Data Motor Information
Flow (GPM) HP:
Head (Ft) Phase:
Motor Voltage:
Max Fluid Temp Enclosure:
Min Fluid Temp
Max Working Pressure
Min Required Inlet Pressure
Connection Type and Size
Model Information from Type Key and Codes:
Quantity Required: Example: MQ 3-35
Minimum required flow: NPSH required at duty point:
Product Guide additional information pages
Materials page number: Performance curve page number:
Technical data page number: Motor data page number:
Custom-built pump information (optional):
Location Information
Client Information
Additional Information
Pump Information
L-DWS-PG-01 8-09.indd 56 11/12/11 12:49 AM
