Grundfos LC 108

Appendix
40

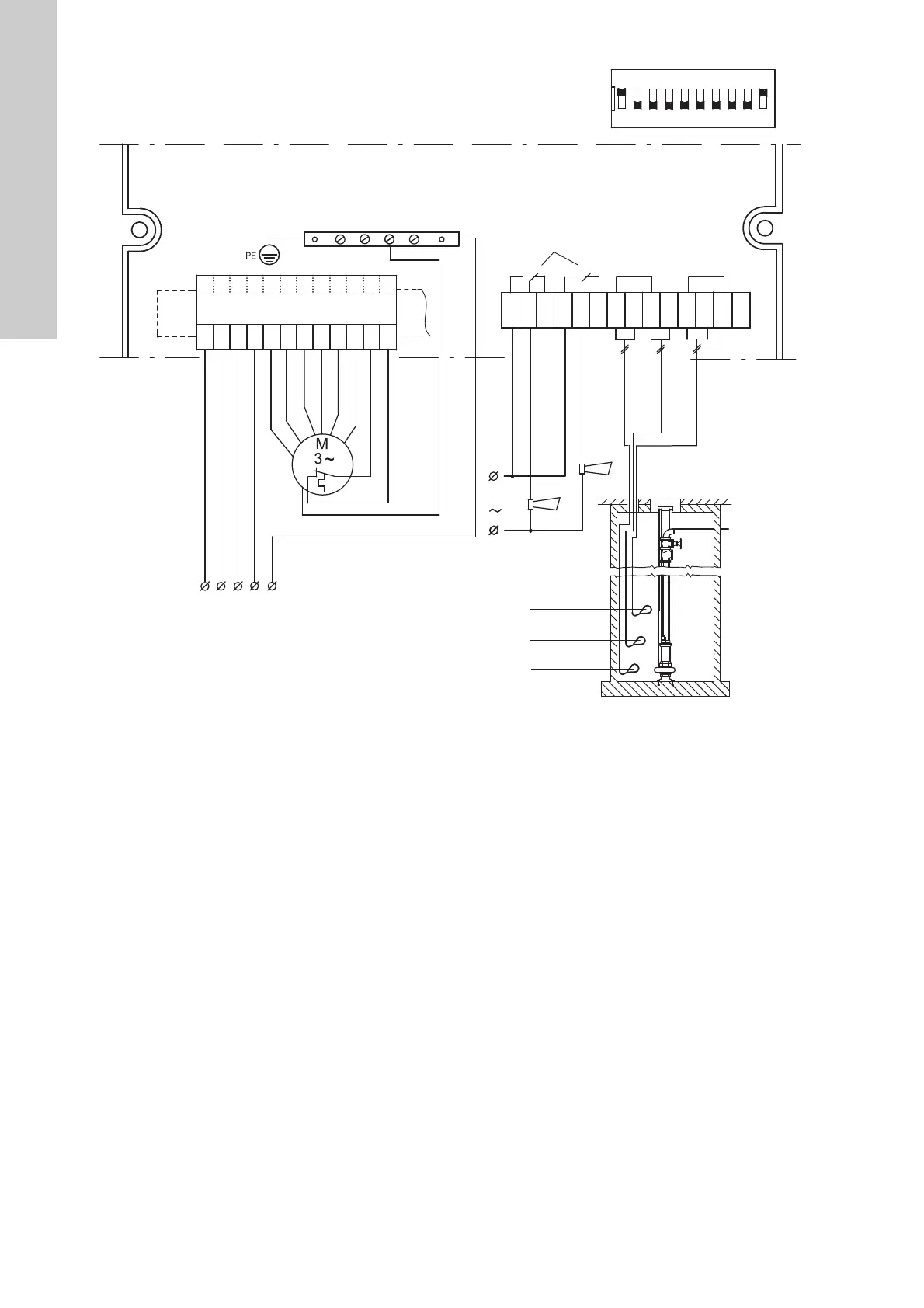

Fig. 4
TM01 8128 1808
U1
V1
W1
N1
1U2
1V2
1W2 2W2
2U2
2V2
T11 T12
H-NO
H-COM
H-NC
G-NO
G-COM
G-NC
11
12 21 22 31 32 41 42
ON DIP
2
3
1
12345678910
Ext.
L1 L2 L3 N PE
max. 230V
max. 2A
LC 108
