Grundfos LC 108

Appendix
50

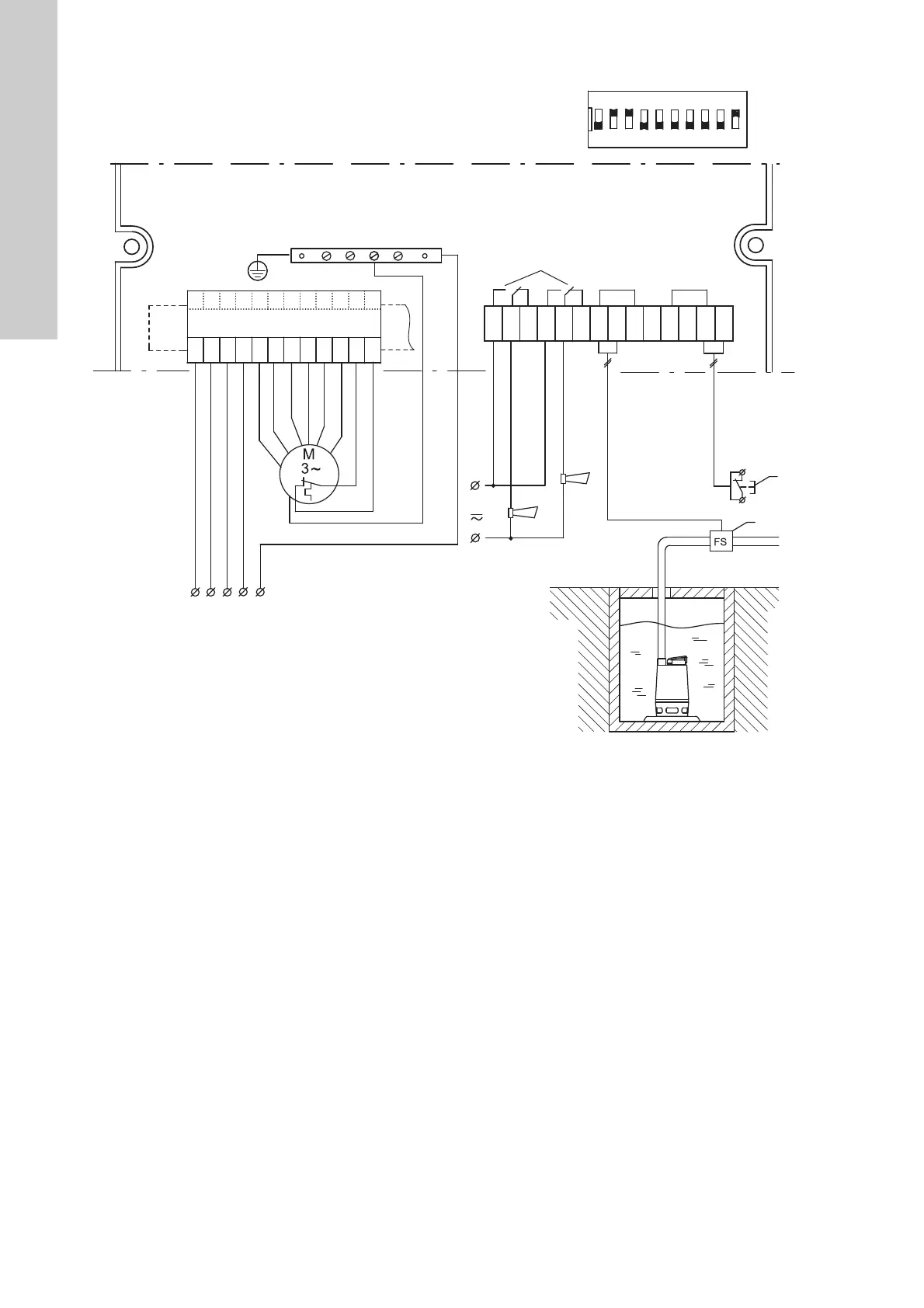

Fig. 14
TM01 8131 1808
H-NO
H-COM
H-NC
G-NO
G-COM
G-NC
11 12 21 22 31 32 41 42
U1
V1
W1
N1
1U2
1V2
1W2 2W2
2U2
2V2
T11 T12
ON DIP
12345678910
Ext.
1
2
L1 L2 L3 N PE
LC 108
PE
max. 230V
max. 2A
