Grundfos MLE 80 - Service Tools

English (GB)
5

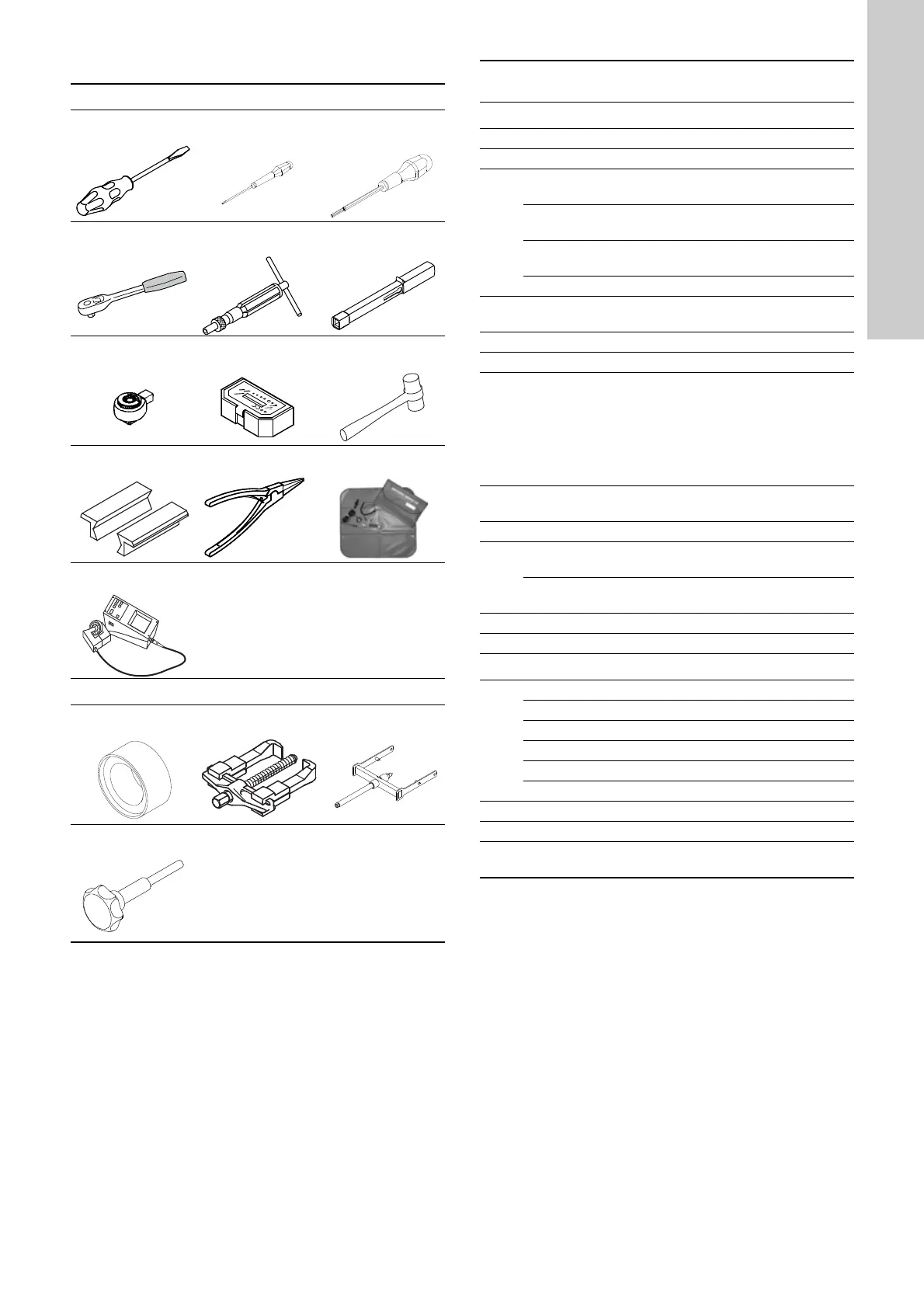

5. Service tools
Standard tools
ABC
DEF
GH I
JKL
M
Special tools
NOP
Q
Pos. Designation For pos.
Further
information
Standard tools
A Screwdriver 156, 252b Straight slot, 8 mm
B Screwdriver 273b, 502 Straight slot, 3 mm
C
Screwdriver
273a,
277a, 288a
Tor x2 0
Screwdriver
152,181
268, 251d
Tor x2 5
Tor x2 7
Screwdriver
178, 185,
192, 289a
Tor x3 0
Screwdriver 286 Torx40
D
Ratchet spanner with
socket
J, K 17 mm
E Torque screwdriver - 0.5 - 4 Nm
F+G Torque wrench - 4-20 Nm
H Bits kit
152,
178,181
185, 251d,
268, 273a,
277a, 286,
287a,
288a, 289a
Tx20, Tx25, Tx27,
Tx30, Tx40
I
Plastic hammer or
press
156
1300 N (axial
force)
JSoft jaws - For vice
K
Locking-ring pliers,
internal ring
187 ∅50-65 (62) mm
Locking-ring pliers,
external ring
188 ∅20-30 (25) mm
L Antistatic service kit - 96884939
M Bearing heater 153, 154
Special tools
N
Punch D20 156c 98394718
Punch D25 156c 98394719
Punch D30 156c 98394720
Punch D35 156c 99124636
Punch D40 156c 99124641
Punch D45 156c 99124643
O Puller for bearing 153, 154
P Puller for rotor 172 99110642
Q
Flange mounting tool
for MGE 132/160
155 99110656
