8.3 Assembly of pump set on site
1. Use pipe clamps when handling the motor.
2. Place the motor in vertical position at the
borehole. See fig. 17.

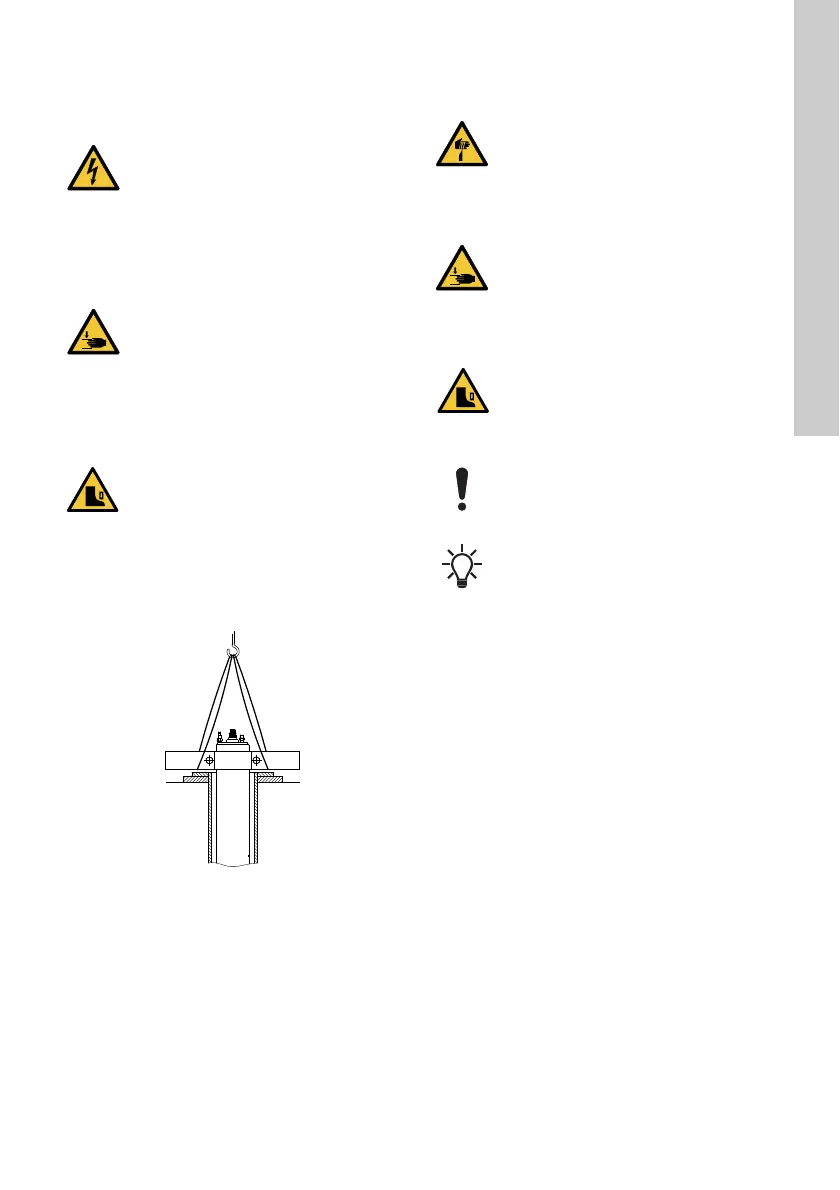

Fig. 17 Motor in vertical position
8.4 Fitting the pump to the motor
DANGER
Electric shock
Death or serious personal injury
- Switch off the power supply before
starting any work on the product.
- Make sure that the power supply cannot
be accidentally switched on.
- Do not lower or lift the product by
means of the motor cable.
WARNING
Crushing of hands
Death or serious personal injury
- When the motor is to be assembled with
the pump at the borehole, make sure to
use suitable pipe clamps.
- Stay clear of the wire and cable while
placing the motor in the borehole.
WARNING
Crushing of feet
Death or serious personal injury
- When the motor is to be assembled with
the pump at the borehole, make sure to
use suitable pipe clamps.
- Stay clear of the wire and cable while
placing the motor in the borehole.
TM02 5259 2402
WARNING
Sharp element
Death or serious personal injury
- When mounting the facilitating pipe,
wear personal protective equipment to
avoid cutting on sharp edges.
WARNING
Crushing of hands
Death or serious personal injury
- Make sure to use suitable pipe clamps.
- Stay clear of the wire and cable while
placing the motor in the borehole.
WARNING
Crushing of feet
Death or serious personal injury
- Make sure to use suitable pipe clamps.
- Stay clear of the wire and cable while
placing the motor in the borehole.
Be careful not to bend or damage long
pump sets when moving them from
horizontal to vertical positions.
Grundfos recommends that a maximum 30
cm long facilitating pipe be fitted to the
pump to facilitate handling of the pump
during installation.
