CONNECTION AND PREPARATION
---------------------------------------
Setting up or hanging
7
Select a location so that no direct sunlight falls
on the screen.
Setting up with stand
7
To mount the stand, refer to the installation
instructions included.
7
Place the TV set on a hard, level surface.
Preparing for mounting on
the VESA bracket
You will need:
7
A pair of scissors,
7
A crosstip screwdriver.
Follow the installation instructions for the VESA
bracket.
1 Place the TV set in the film on a smooth
surface with the screen facing down.
2 Cut open the film on the back side using the
scissors.
3 Connect the required cables to the connec-
tors on the TV set. See the “Connections”
section in this manual.
4 Tie the cables so they do not hang down
onto the floor.

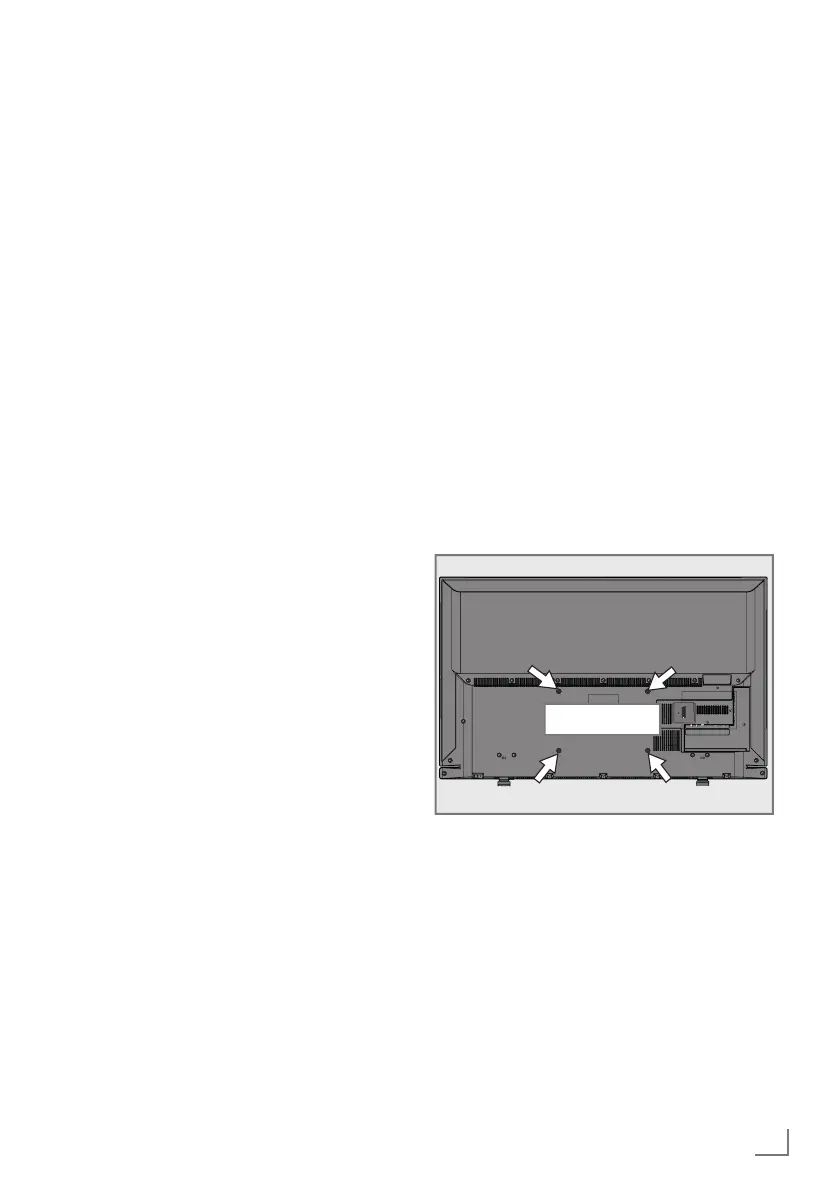

5 Screw the VESA bracket onto the TV set
and mount it according to its installation
instructions.
