Grundig Chassis D5 - Page 17

GRUNDIG Service Chassis D5
3 - 3

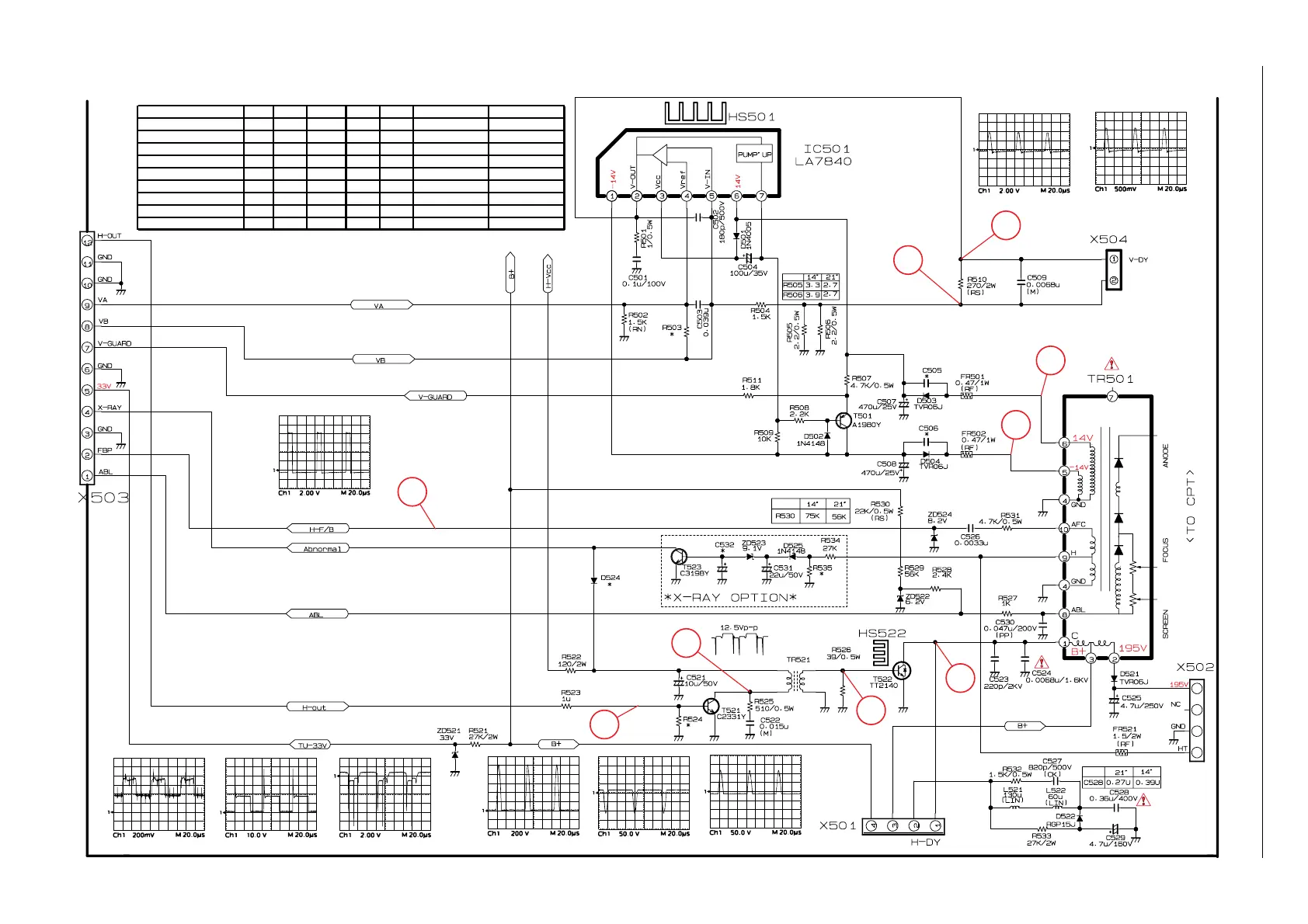

ZL6.190-03 - Ablenkung / Deflection
5
6
7
8
10
9
13
14
11
5
6
7
9
8
0
!
#
$
Bildröhre / CRT +B C524 FR521 R505 R506 TR501 TR602
A33EKC01X01 111V 6.8NF 0.47R 3.9R 3.3R 759551053200 759551053500
A33EKC02X01 111V 6.8NF 0.47R 3.9R 3.3R 759551053200 759551053500
A34EAC01X06 DY-BRZ 111V 6.8NF 1.5R 3.3R 3.9R 759551053200 759551053500
A34EJL02X31 111V 6.8NF 1.5R 3.9R 3.9R 759551053200 759551053500
A34KPU02XXB 111V 6.8NF 1.5R 3.3R 4.7R 759551053200 759551053500
A51EKS41X11 759551056500 759551056400
A51ERF135X80 130V 7.5NF 0.68R 3.3R 2.7R 759551056500 759551056400
A51ELD032X001 (DY)
132V 7.2NF 0.1R 2.7R 2.7R 759551056500 759551056400
A51ELD032X001 132V 6.8NF 0.22R 2.7R 2.7R 759551056500 759551056400
