Grundig DSB 950 - Operation; Audio Input Operations; ARC and Bluetooth Operation

ENGLISH
19

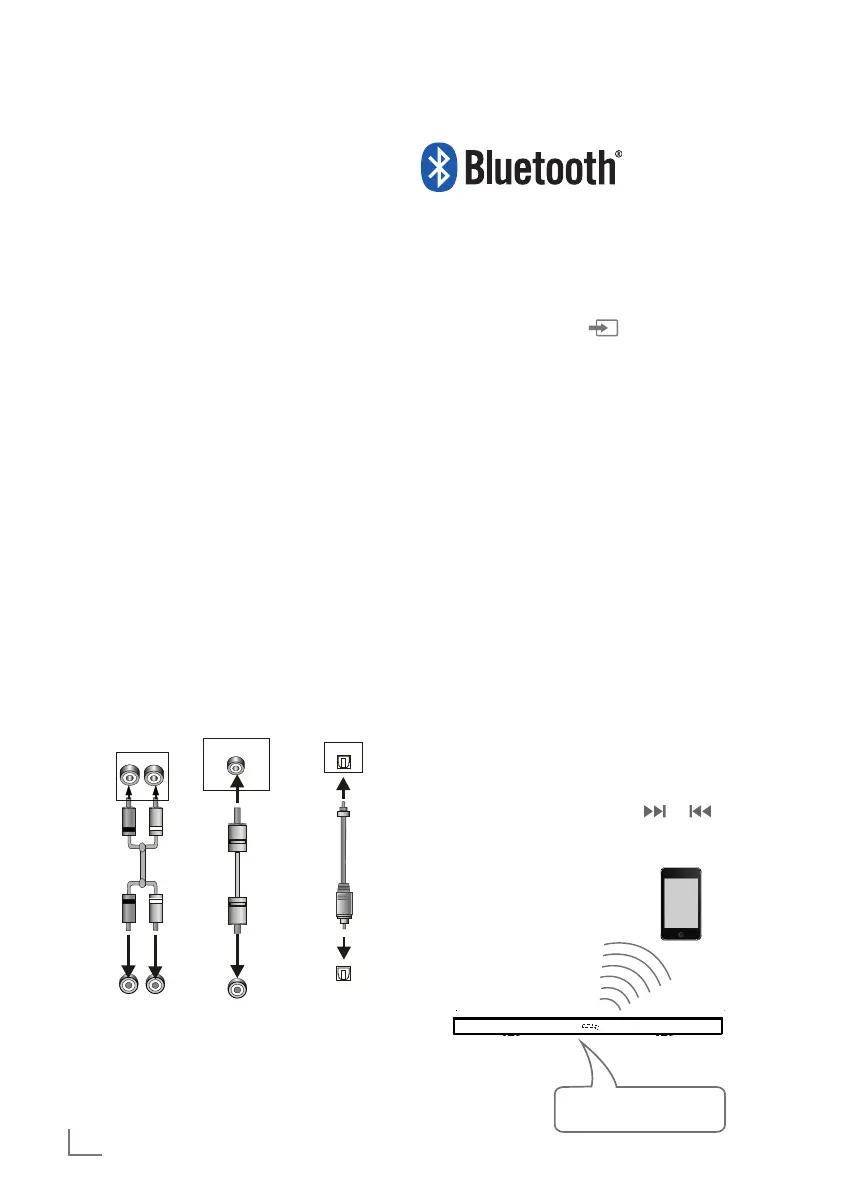

AUX IN/LINE IN
This sound base have two extra groups of audio
input terminals. You can input the analogue stereo
audio signals from extra devices such as VCD, CD,
VCR, DVD player, etc.
Use the audio cable to connect the stereo audio
output terminals of a VCD, CD, VCR,DVD player
to the stereo input terminals AUX IN/LINE IN of
this sound base.
Its corresponding signal source is AUX IN/LINE IN
which can be available by pressing [SOURCE] on
the remote control.
Optical Input
Use the optical cable to connect the optical input
of this sound base to the optical output of VCD,
CD, VCR, DVD player.
ARC(AUDIO RETURN CHANNEL)
ARC is audio return channel function,it is used in
digital audio output of liquidcrystal
display television in order to get the optimal syn-
chronous sound quality .
Use the HDMI cable to connect the HDMI-ARC in-
put port of this sound base to the ARC output port
of the liquid-crystal display television.
OPERATION
------------------------------------------------------------------------------------------------------------------------------
Bluetooth mode
Your device can
be paired with all
current, Bluetooth-
enabled devices
applying to smartphones, laptops and tablet PCs
for example.
1 Press standby button »
8
« to power on the
sound base.
2 Press source button » « to switch the cor-
responding bluetooth mode.
–The bt will be flashing quickly in the display .
screen.
3 The sound base is in searching bluetooth signa
status.
4 Use your smart phone to search the bluetooth
signal of the sound base.
5 Select ''Grundig Connected Soundbar'' on
your list.
6 The sound base will synchronize to play songs
on your mobile phone while the bt keep solid
light in the display screen means to be con-
nected successfully.
7 Disconnected the bluetooth on the smart phone
to switched off the bluetooth connection.
Note:
7
Bluetooth connection range in 10 meters
7
The model ''Grundig Connected Soundbar''
in your device was not deleted.
7
In bluetooth mode, »eII«, » «, » «, »+«,
»–« etc. are also active.
Grundig Connected Soundbar
OP TIC AL
Optical Input
Optical Output
LINE IN
ou
stereo audio
the
AUX IN/LINE IN
on
OP TIC AL
Optical Input
Optical Output
the optical
AU X O utput
AUX Input
ou
stereo audio
the
AUX IN/LINE IN
on
OP TIC AL
Optical Input
Optical Output
the optical
AU X O utput
AUX Input
R
L
L
R
ou
stereo audio
the
AUX IN/LINE IN
on
OP TIC AL
Optical Input
Optical Output
the optical
AU X O utput
AUX Input
R
L
L
R
AUX IN
LINE IN
AUX IN
AUDIO INPUT
AUDIO OUTPUT
LINE IN
