Model:
MPPT30-1
Operating Instructions
Please read these instructions before use
MPPT30-1-R5
Unit 2, 1 St James Place, Seven Hills ,NSW, 2147, Australia
1700W Solar Battery Charger
Maximum Power Point Tracker
V
OC
V
MP
12V Charging 24V Charging
48V Charging
21 16
42 32

63 48
 
84 64
 
42 32

84 64
 

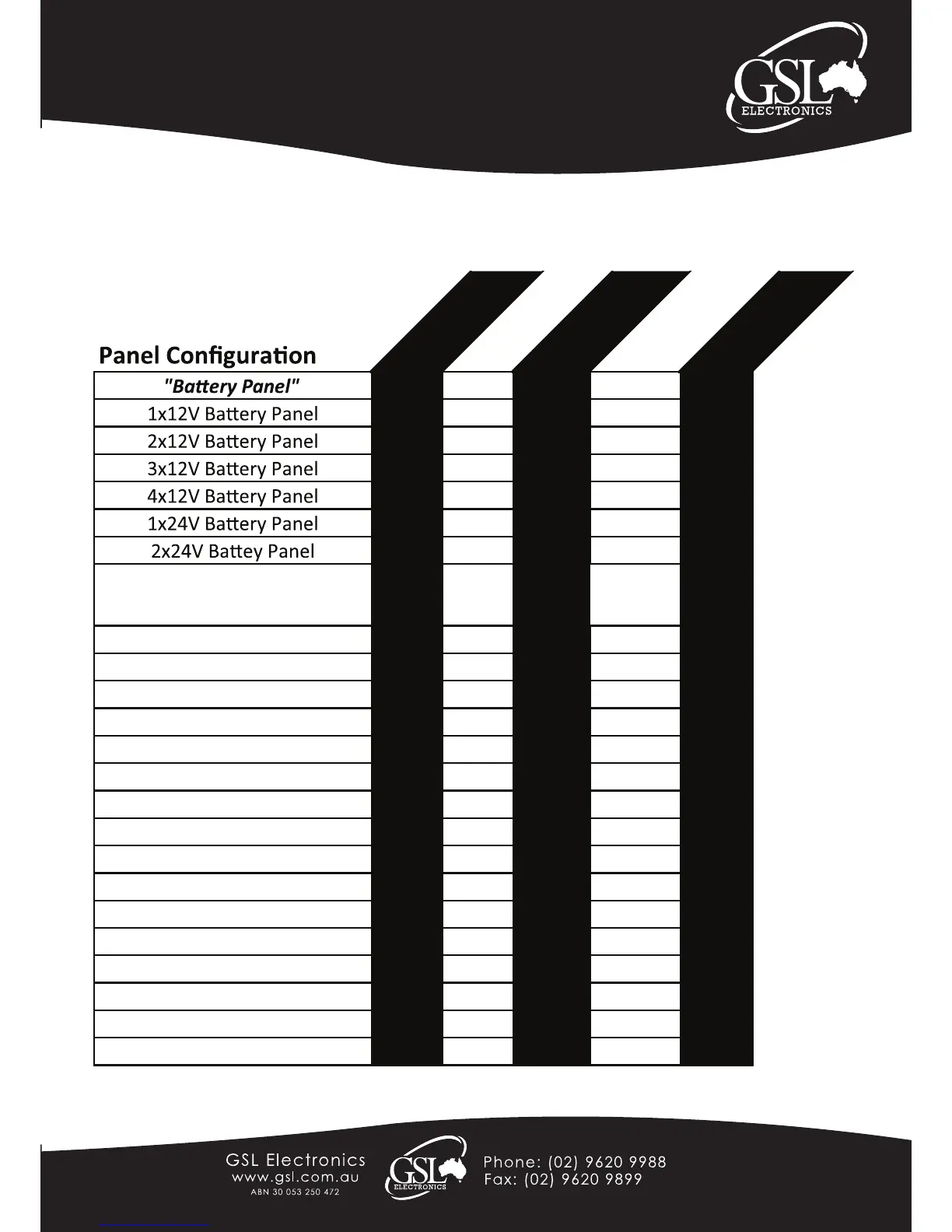

Grid Connect Panel
(size
= no. cells in grid)
1x18 Cell Grid 10 8
1x48 Cell Grid 28 23

2x48 Cell Grid 56 46
 
3x48 Cell Grid 84 69
 
1x52 Cell Grid 31 25

2x52 Cell Grid 62 50
 
3x52 Cell Grid 93 75
  
1x54 Cell Grid 32 26

2x54 Cell Grid 64 52
 
3x54 Cell Grid 96 78
  
1x60 Cell Grid 36 29

2x60 Cell Grid 72 58
 
1x72 Cell Grid 44 36
 
2x72 Cell Grid 88 72
 
1x96cgsp 65 55
 
For optimal performance from panel and MPPT please use the following table to
determine the best setup for your situation.
