Model:
MPPT30-1
Unit 2, 1 St James Place, Seven Hills ,NSW, 2147, Australia
Operating Instructions
Please read these instructions before use
1700W Solar Battery Charger
Maximum Power Point Tracker
Changing Battery Type Setting Procedure
1.Ensure all the MPPT wires are disconnected.
2.Remove 7 front panel screws and the front panel and slide out cover – see Figure 1.
3.Locate connector J4 – see Figure 1.
4.Shift link on J4 to vented position – see Figure 2.
5.Slide back cover and t in front panel carefully, insuring led ts properly into housing,
and screw back the 7 mounting screws.
• The above procedure can be repeated to turn back to sealed mode – see Figure 3.

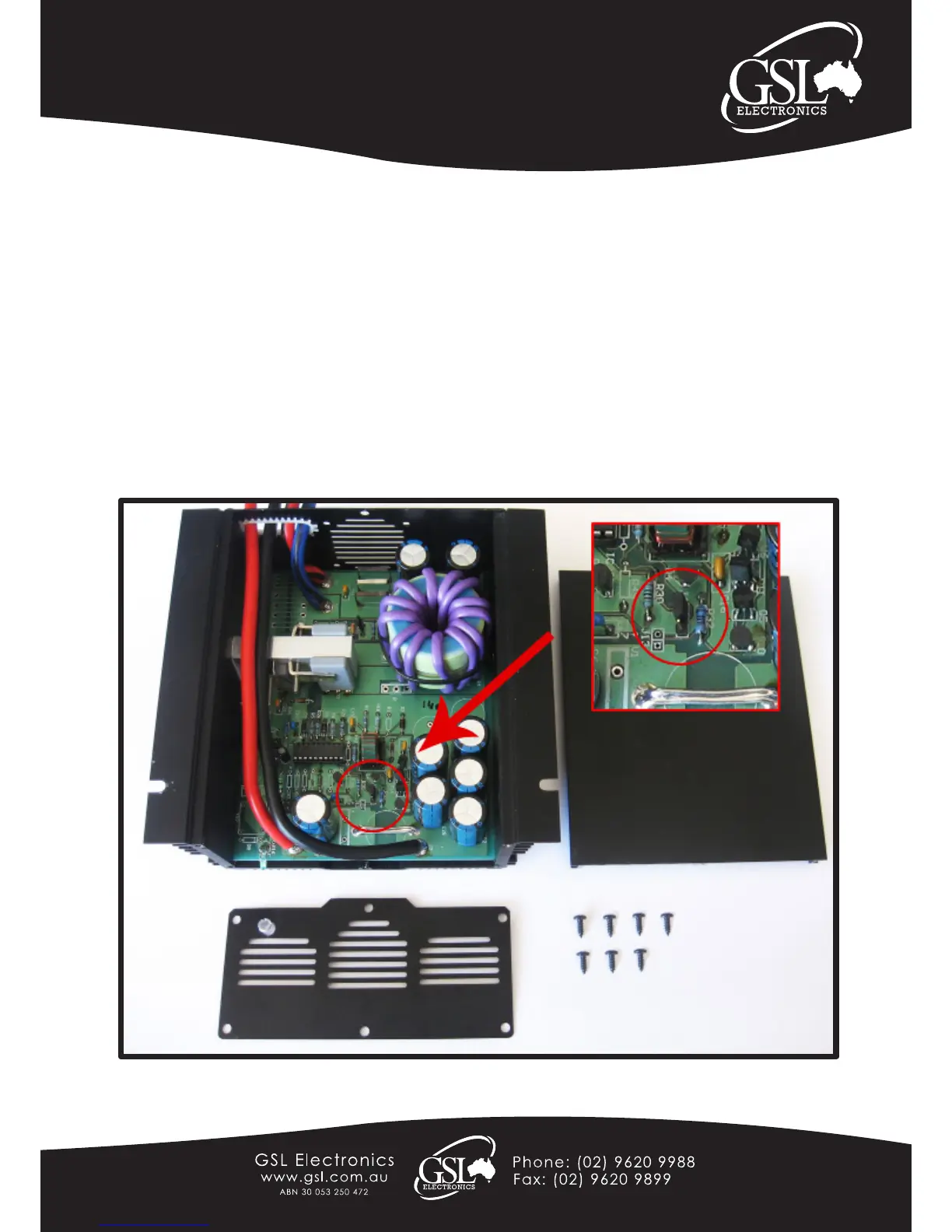

Figure 1.
