GT Fury - Page 13

13
Technical Information

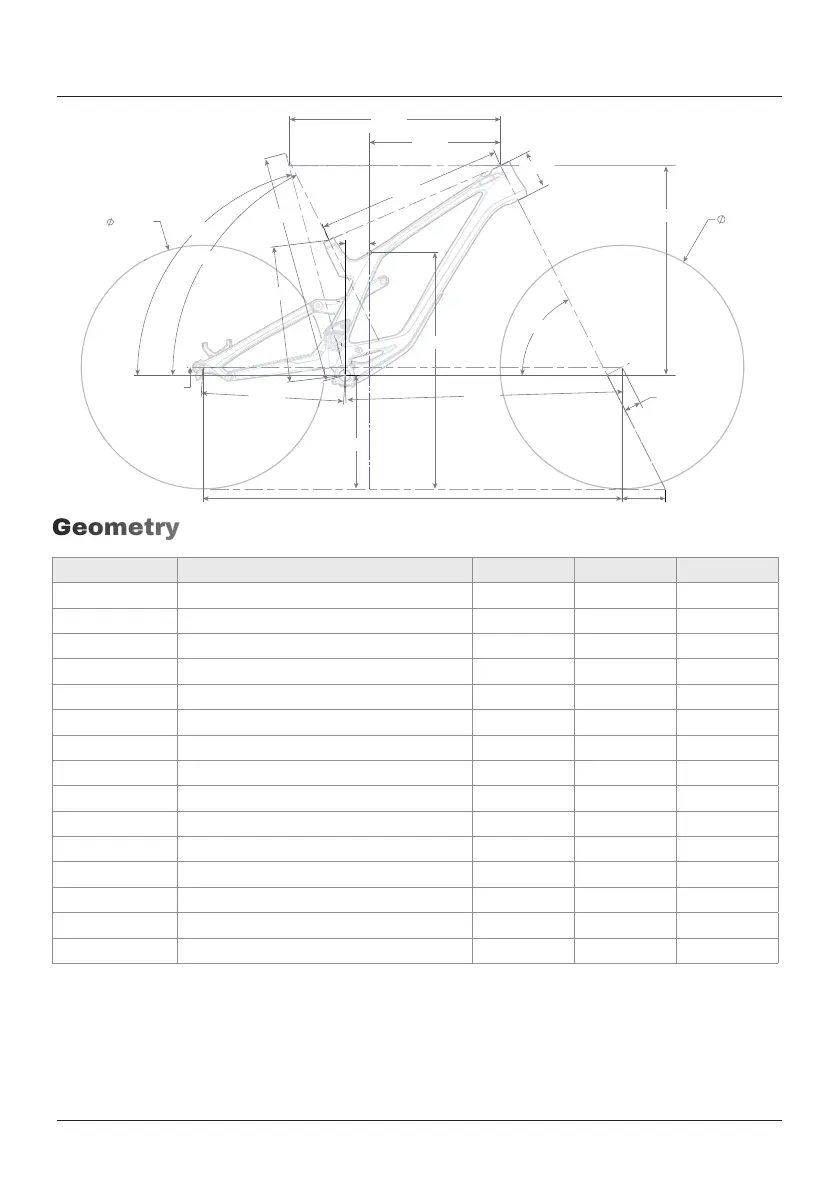

Geometry
Geometry
RC
75.00
RAKE
WDIA_F
WDIA_R
FC
BBH
SO
HTA
HTL
STL_A
SEAT_H
STACK
REACH
TTL_H
TTL_A
WB
STA_E
STA_A
TRAIL
DROP
Dimensions = millimeter
Sizes (mm) MD LG XL
STL_A Seat tube length 410 420 430
STA_E Seat tube angle eective 75.0 ° 75.0 ° 75.0 °
TTL_H Top tube horizontal 621 653 686
TTL_A Top tube actual 546 577 609
HTA Head tube angle 63.5 ° 63.5 ° 63.5 °
STA_A Seat tube angle 75.0 ° 75.0 ° 75.0 °
SO Standover 720 730 730
HTL Head tube length 110 120 130
WB Wheelbase 1260 1295 1329
FC Front center 821 856 890
RAKE Fork rake 52 52 52
TRAIL Trail 133 133 133
STACK Stack 638 647 656
REACH Reach 450 480 510
Travel front 200 200 200
Notes:
Rear axle Flip Chip adjusts the Chainstay Length between 440mm and 450mm with a 29er rear wheel
and 435mm and 445mm with a 27.5 rear wheel. No other frame geomtery changes when switching
between 29 and 27.5 rear wheels when using the Flip Chip. The Shock Flip Chip changes shock progres-
sion and has no eect on frame geometry.
