Fury Owner’s Manual Supplement
Technical Information
Shock Link
192927 Rev 0 (11/23)
a
b
3
2
5
4
12
11
7
8
13
6 1 9
11
10
9
10
12
4
13

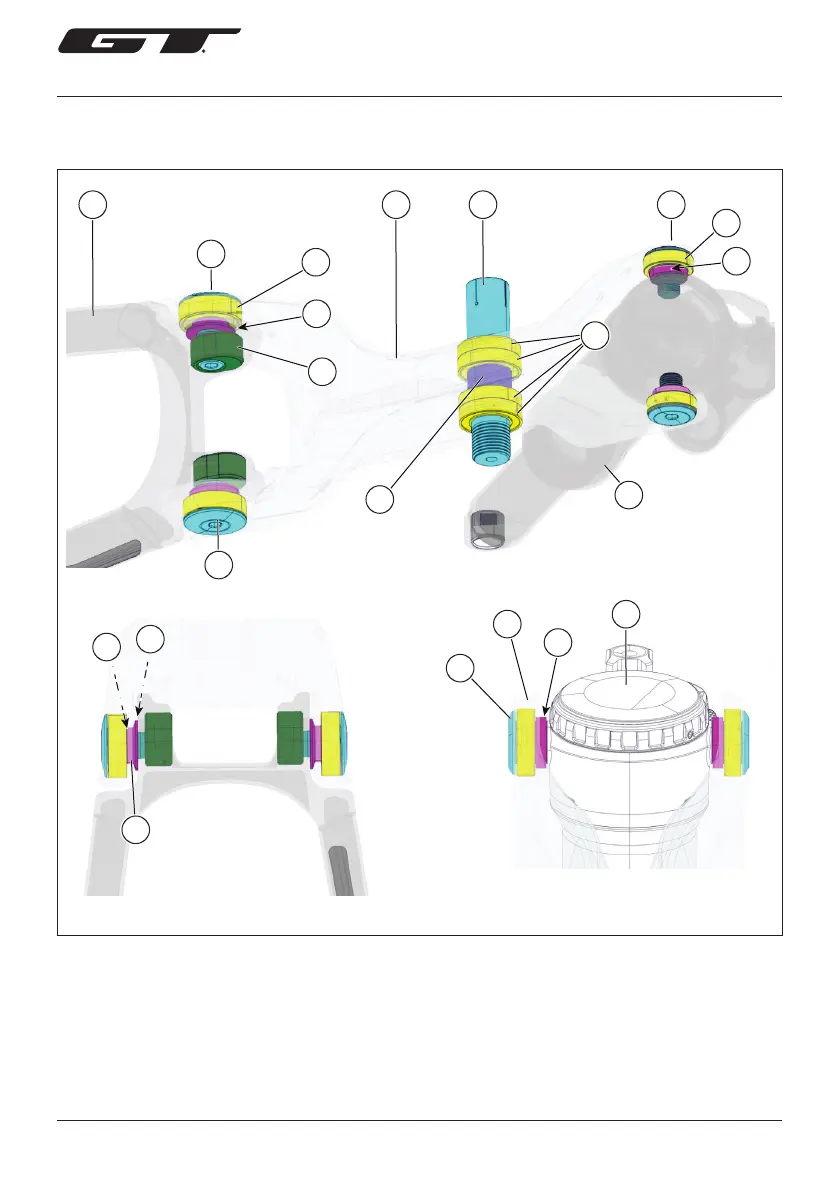

Shock Link
1. Link
2. Seatstay
3. Seatstay/Link chip (2X)
4. Bearing spacer (2X)
5. Link bearing, rear (2X)
6. Link pivot axle
7. Link, pivot bearings (4X)
8. Link, pivot axle bearing
spacer
9. Shock bolts, upper (2X)
10. Link bearing, front (2X)
11. Bearing, spacer (2X)
12. Rear shock
13. Pivot axle (2X)
a. small end
b. large end
Identification
