Technical Information
Cable Routing
5
3
4
3
3
4
1
2
1
2
6

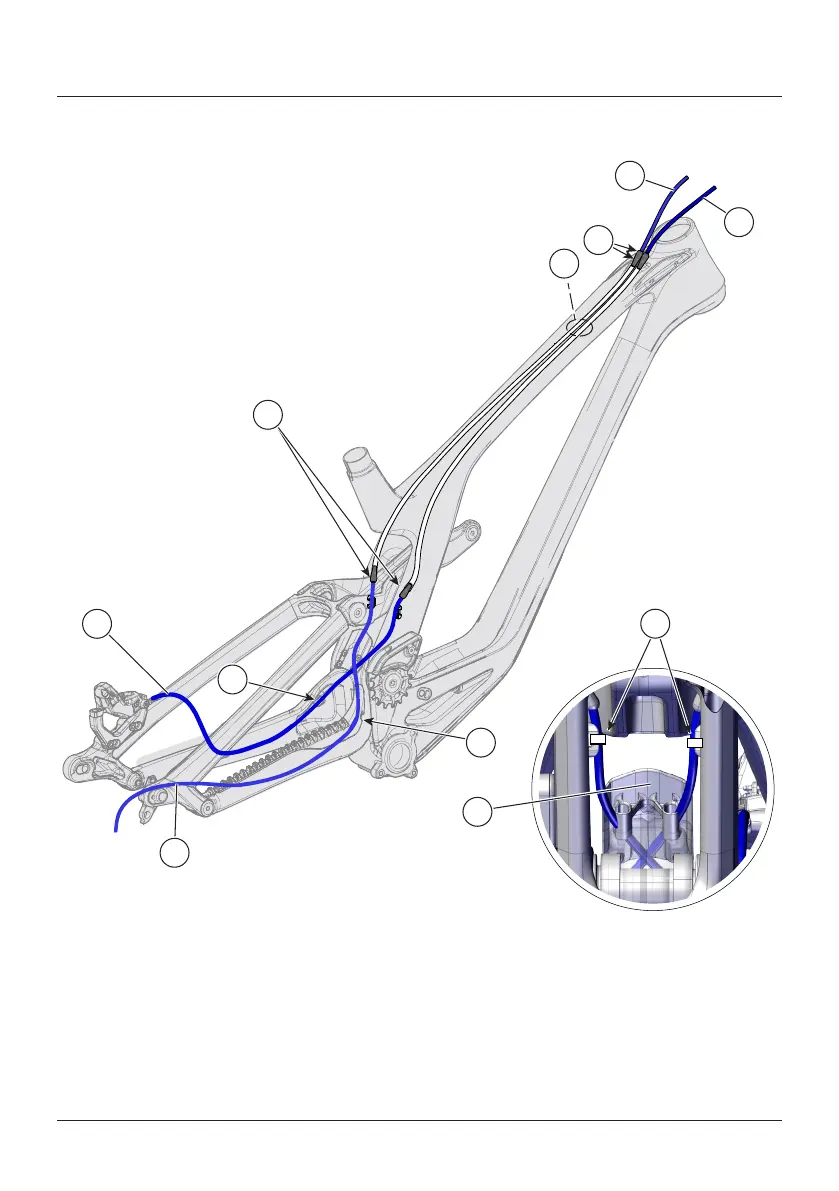

Cable Routing
Identification
1 . Rear brake
2. Rear Derailleur
3. Cable tie, location
4. Tubing end grommet
5. Internal cable tubing
6. Fender cable guide
• Please note that at the fender cable guide the
two housing cross.
• Please note that the housing in the area of the
fender cable guide are to be secured to the frame
on the frame guides (3) using zip ties.
