GT Fury - Page 26

26
Fury Owner’s Manual Supplement
Technical Information
Tightening Torques
192927 Rev 0 (11/23)

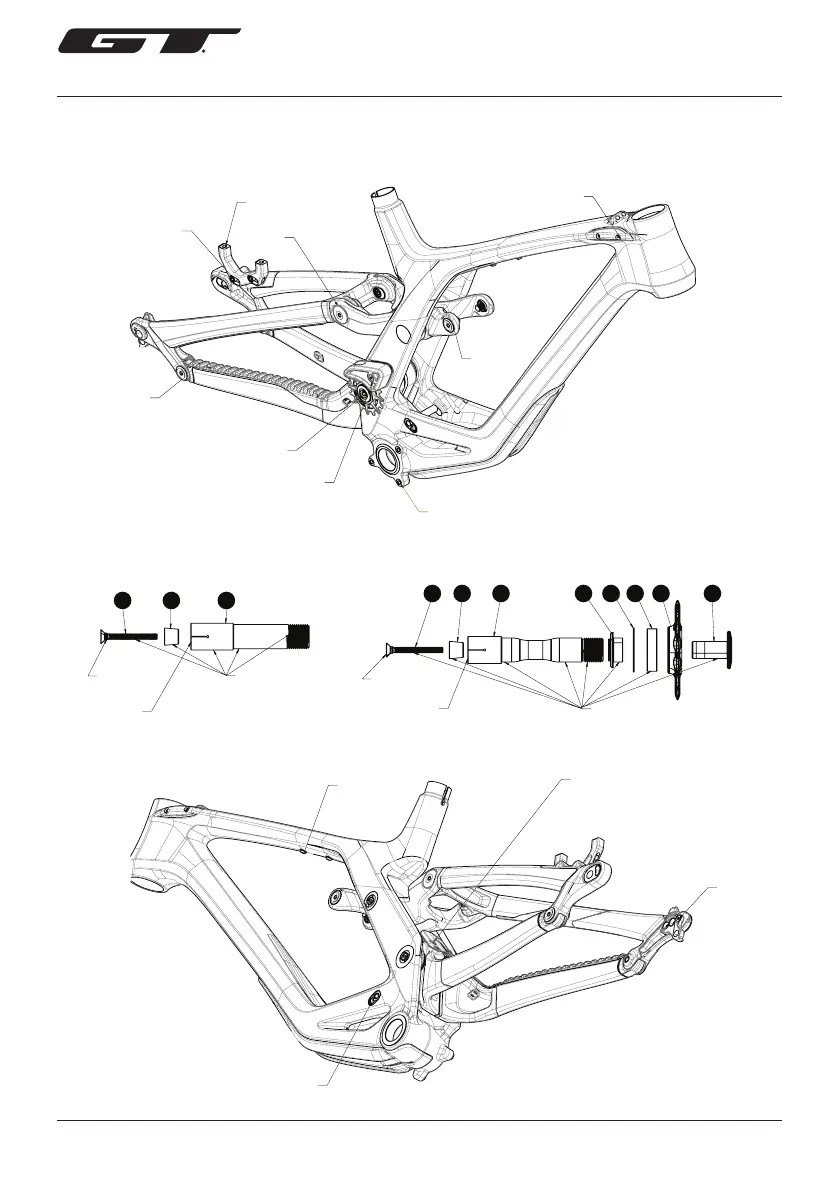

Tightening Torques
4X 1 Nm
4 Nm
10 Nm
2X 1 Nm
NO LOCTITE
2 Nm
2X 5 Nm
(3X 6 Nm)
2X 5 Nm
2X 7 Nm
2X 7 Nm
(2X 8 Nm)
4X 1 Nm
6 Nm
IDLER BOLT
LINK PIVOT ASSEMBLY
BALLOON NUMBER INDICATES STEP NUMBER
MAIN PIVOT ASSEMBLY
BALLOON NUMBER INDICATES STEP NUMBER
12
3 2 1
2 56 4
123 4567 8
GREASE
M6 HEX
TORQUE TO 5 Nm
T25
TORQUE TO 5 Nm
M6 HEX
TORQUE TO 5 Nm
T25
TORQUE TO 5 Nm
GREASE
