GT RT400 - Belt Replacement (OP 3); Brake Kit Replacement (OP 4)

Repair Procedures
This document is our property. It can't be used, duplicated or given to third parties without our written authorization
OP 3. Belt replacement
-If belt replacement is necessary, follow the OP1 "Driven pulley removal" and OP2 "Driver pulley
removal".
-In most cases, parts of the both driver and driven pulley may have been damage, and might also
need to be replaced.
Important note: When reassembling the components, respect the tightening
torque of the different screws and use Loctite 454.
OP 4. Brake kit replacement
-After tearing down the transmission, visually check all the components below. If the brake lever is
damaged, the brake kit 79247 needs to be replaced.
-If the brake spring is broken or missing, the spring can be replaced only.
10
Important note: When reassembling the components, respect the tightening torque of
the screw, 28.3±1 lb.-in
General Transmissions recommends using
Loctite 454 when tightening the screws

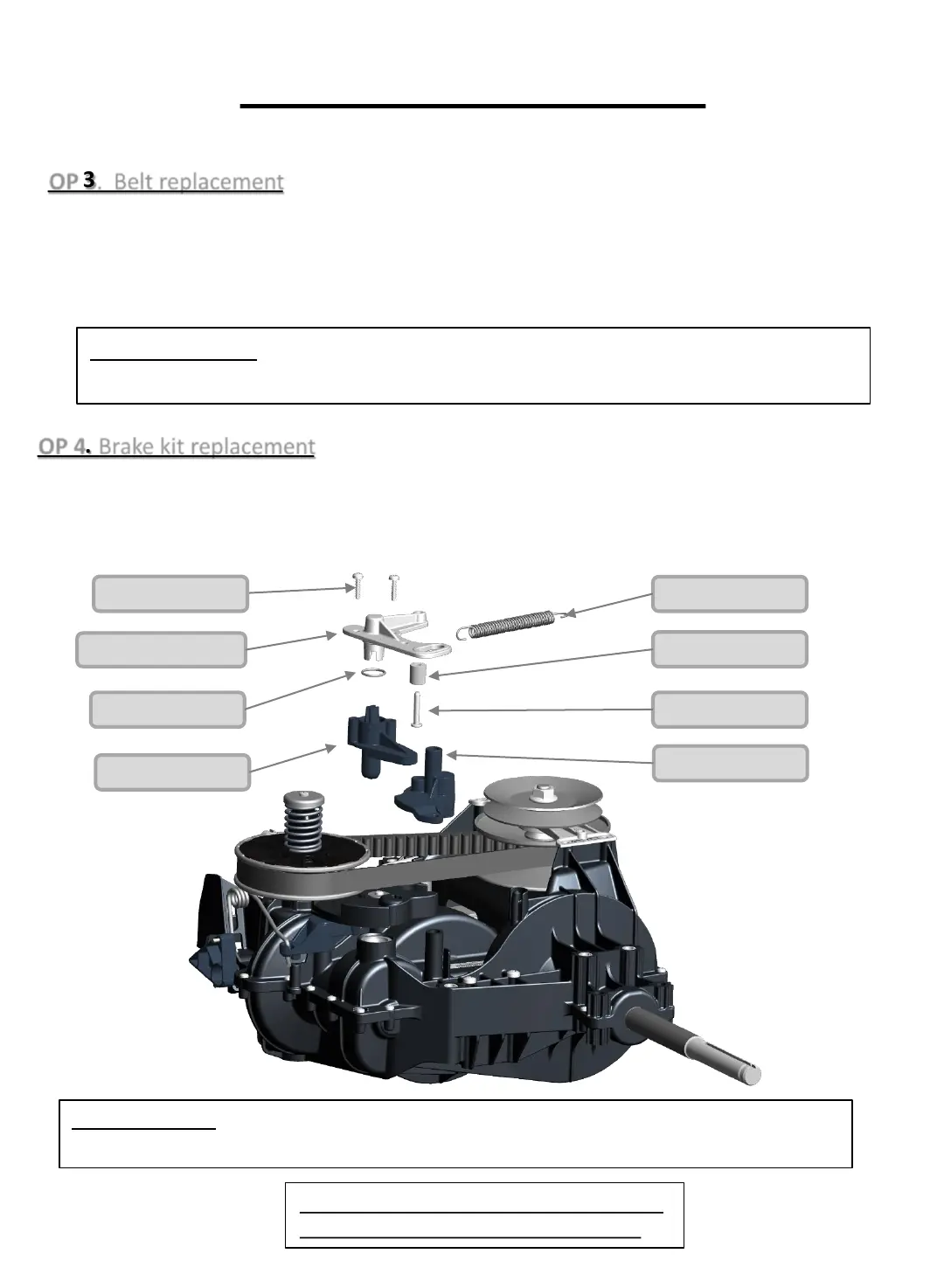

Axle
Roller
Spring
Brake lever
O-ring
Bypass lever
Aluminum lever
Screw
