Repair Procedures
OP 1. Driven kit replacement

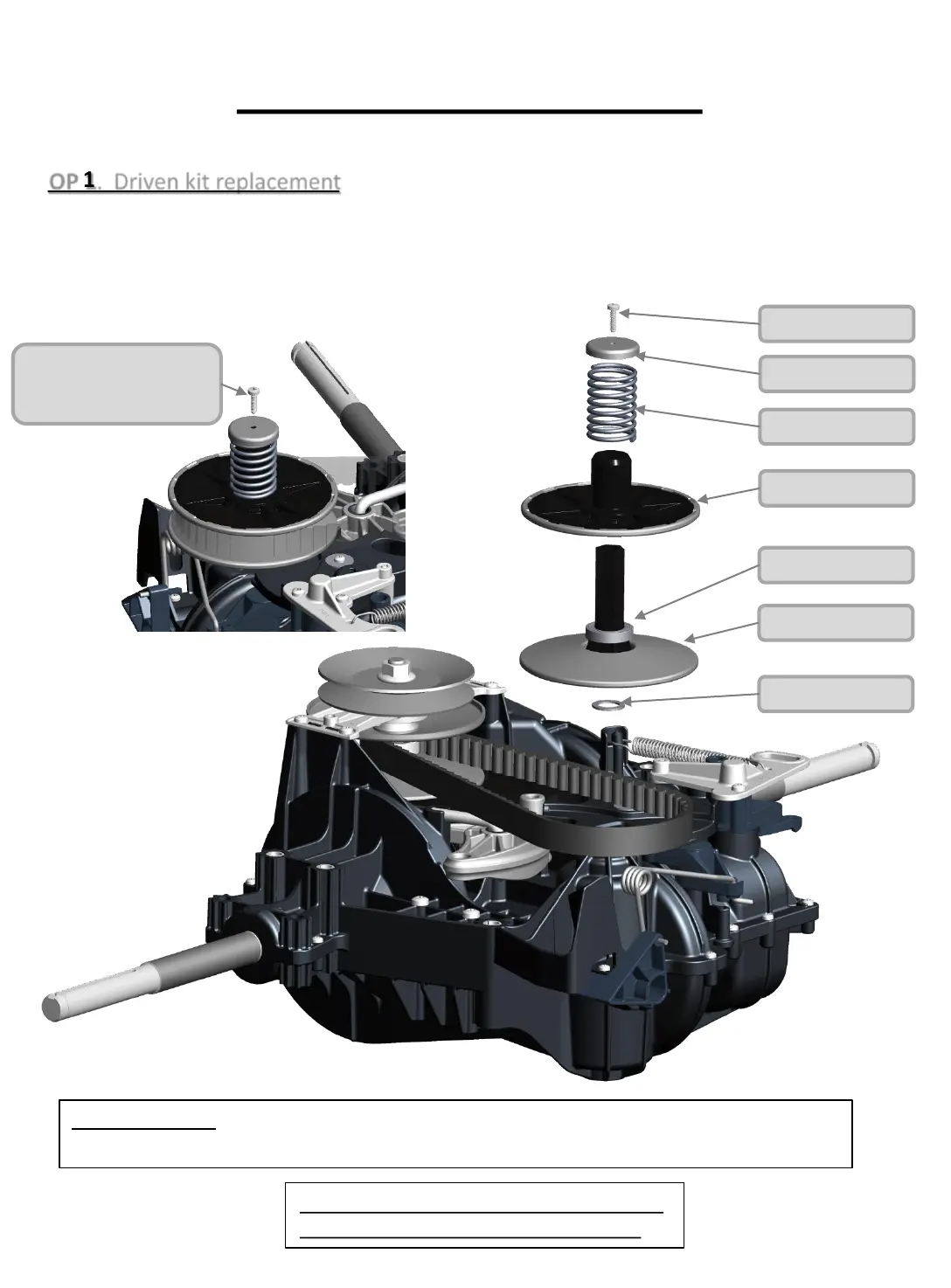

-After tearing down the transmission, visually check all the components shown below. If one of the
components is damaged, the driven kit needs to be replaced.
-In certain cases the belt and parts of the driver pulley may have been damaged, and might also
need to be replaced.
This document is our property. It can't be used, duplicated or given to third parties without our written authorization
Important note: When reassembling the components, respect the tightening torque of
the screw, 19.5±1 lb.-in
8
General Transmissions recommends using
Loctite 454 when tightening the screws
Remove the screw
to release the
components
Screw
Spring washer
Spring
Mobile flange
Bearing
Fixed flange
Washer
