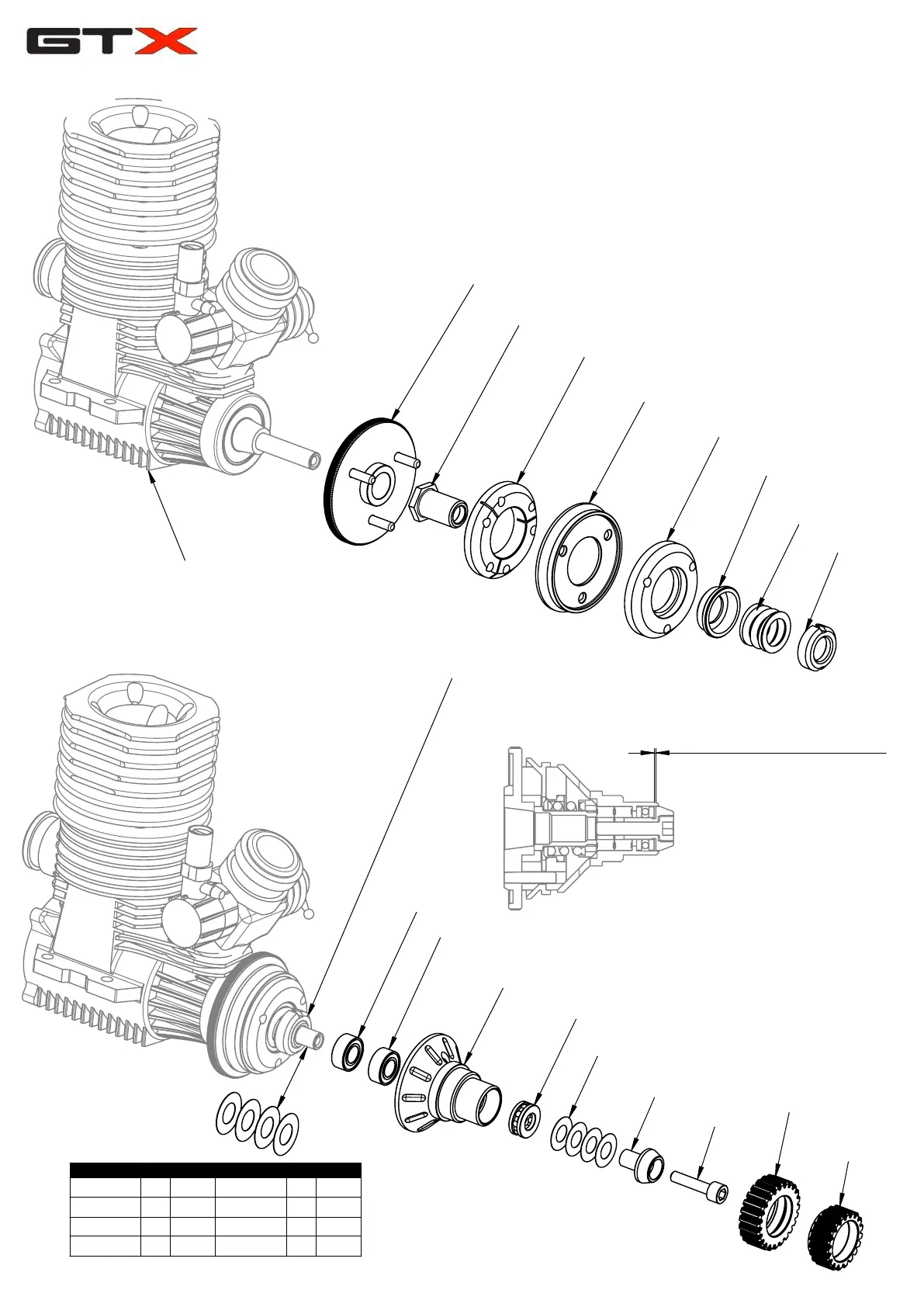

GTX 6 - 27; Vista del disegno1; Vista del disegno2; Vista del disegno10

03214-1
03214-8
03214-2
03214-6
03214-3
03214-7
03214-11
03214-9
ENGINE
NOT INCLUDED
90000
5-10-4
03214-4
90000
5-10-4
90018
5-10-4
03225
5-10-0.1
03214-10
91000
M3 X14
03212-24
24T
03211-19
19T
SCREW ONE TURN
WHEN THE NUT TOUCH SPRING
(PRELOAD 0.5mm)
GAP SHOULD BE 0.6 mm
ADJUSTING WITH SMALL SHIMS
PUT SMALL SHIMS TO
REDUCE THE GAP
0.6 TO 0.1/0.2mm)
24T
23T
03212-25
OPTIONAL
COD (2ND)
03212-23
03212-24
STANDARD
25T
OPTIONAL
SPEED GEAR
STANDARD
19T 03211-19
18T 03211-18
COD (1ST)
OPTIONAL
03211-20 20T
OPTIONAL
BAG 16
27
