RING PLIERS
ALLEN:
1.5 MM.
2.0 MM.
2.5 MM.
3.0 MM.
SIDE CUTTER
SCISSORS
POCKET BOOSTER STARTER
TECHNICAL INFORMATION
- BODY: PROTOTIPE MODEL (NOT INCLUDED)
- ADJUSTABLE FRONT TOE, CAMBER AND CASTER
- ADJUSTABLE REAR TOE AND CAMBER
- BUMPER /FRONT BACKSTOP
- ALUMINIUM CHASSIS
- FULL BALL BEARING
- CARBON RADIO PLATE
- TRANSMISSION: TRIPLE BELT 4WD
- FRONT DIFFERENTIAL: ONE-WAY
- REAR DIFFERENTIAL: SOLID AXLE
- FRONT AND REAR ADJUSTABLE ANTI-ROLL BARS
- PIVOT BALL SUSPENSIONS
TECHNICAL DATA
- LENGHT .............................................435 MM.
- WIDTH .............................................260 MM.
- WHEEL BASE ............adjustable 294-298 MM.
- WEIGHT CHASSIS.............................2080 GR.
REQUIRED BUT NOT INCLUDED IN THE KIT

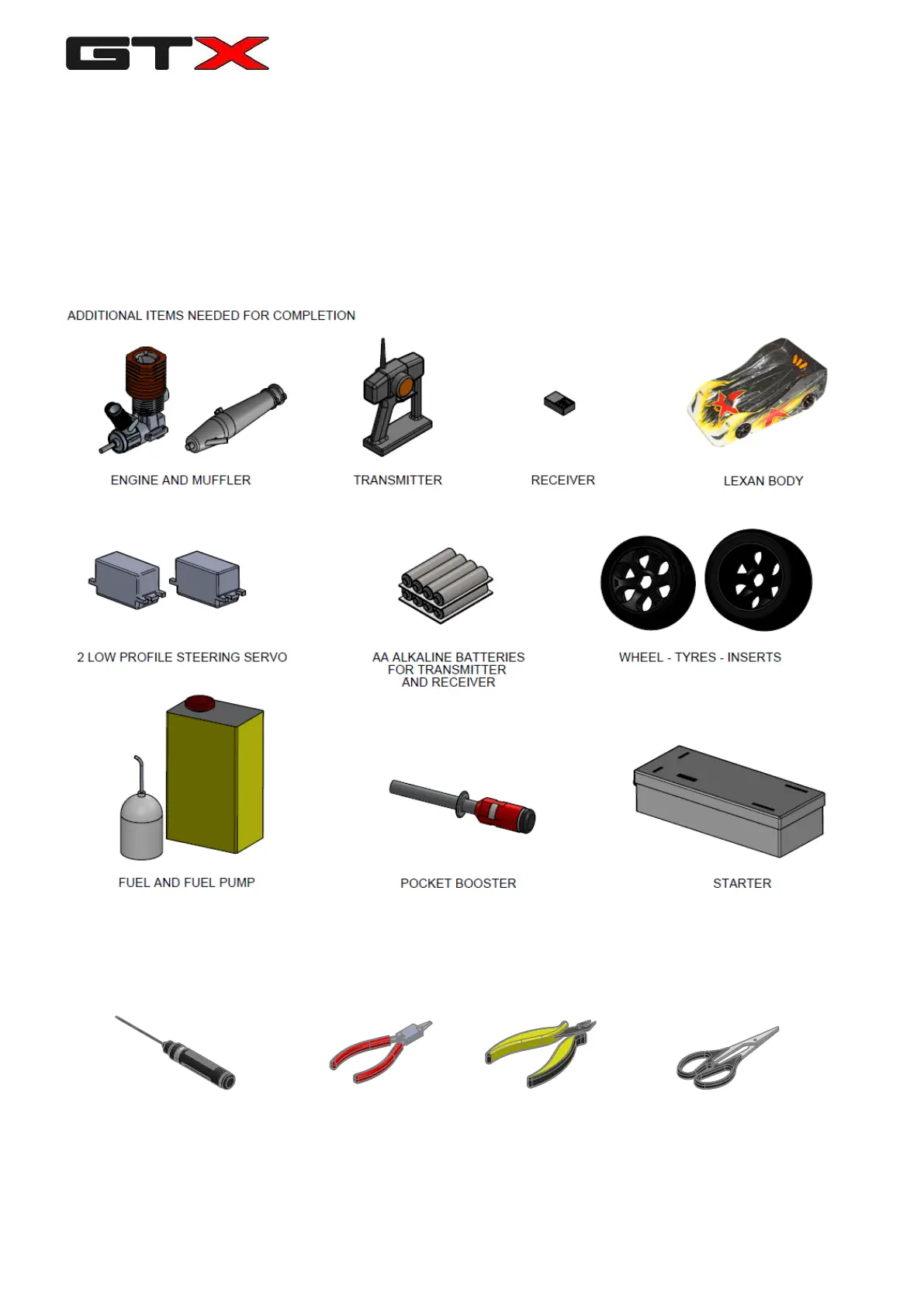

ADDITIONAL ITEMS NEEDED FOR COMPLETION
ENGINE AND MUFFLER
TOOLS REQUIRED
THESE TOOLS ARE NOT INCLUDED IN THE KIT BUT ARE REQUIRED FOR PROPER ASSEMBLY
2 LOW PROFILE STEERING SERVO
TRANSMITTER
THE FOLLOWING ITEMS ARE NEEDED FOR COMPLETION OF THE GTX; THEY ARE NOT INCLUDED IN THIS KIT (UNLESS NOTED) AND
SHOULD BE OBTEINED FROM YOUR LOCAL HOBBY SHOP.
BE SURE TO READ THE INSTRUCTION COMPLETELY PRIOR TO ASSEMBLY
NOTICE:
RECEIVER
AA ALKALINE BATTERIES
FOR TRANSMITTER
AND RECEIVER
WHEEL - TYRES - INSERTS
LEXAN BODY
FUEL AND FUEL PUMP
2
