Guardian 628 User Manual
5
of 1
of 1 rating
26 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
23
25
Table of Contents
Table of Contents
2
Symbols and Icons
2
Inventory
3
Installation Hardware
3
Preparation
4
Tools Required
4
Before Beginning Installation
4
To Test Your Garage Door
4
Asssembling T-Rail
5
Tension the Belt/Chain
6
Mounting Header Bracket
7
To Install Header Bracket
7
Wall-Mounting
7
Alternative Ceiling-Mounting
7
Attaching Rail to Header Bracket and Mounting Door Bracket
8
Mounting Opener to Ceiling
9
Fastening Hanging Brackets to Structural Supports
9
Securing Opener to Hanging Brackets
9
Attaching Door Arms
10
To Connect Door Arm
10
Installing Light and Emergency Release Knob
11
Wiring Instructions
12
Connecting Photo Eye Safety System
13
About the Photo Eye Safety System
13
Installing the Photo Eye Safety System
13
Alternative Floor-Mounting
13
Connecting Wall Panel
14
To Install the Wall Panel
14
Using the Wall Panel
14
Connecting Power
15
Aligning the Photo Eye Safety System
15
Permanent Wiring
15
Travel Limit Adjustment
16
Setting up Limit
16
Setting down Limit
17
Auto Force Adjustment
18
Final Adjustments and Testing
19
Testing the Safety Reverse System
19
Testing the Photo Eye Safety System
19
Programming Hand-Held Transmitter
20
Removing All Transmitters
20
Replacing Transmitter Battery
20
Operating the Opener
21
Activating the Opener
21
Actual Operating Scenario
21
Door Status Vs.activation
22
Courtesy Light/Buzzer Responses
22
Manual Operation
22
To Disconnect Trolley for Manual Operation
22
Maintenance
23
Troubleshooting
23

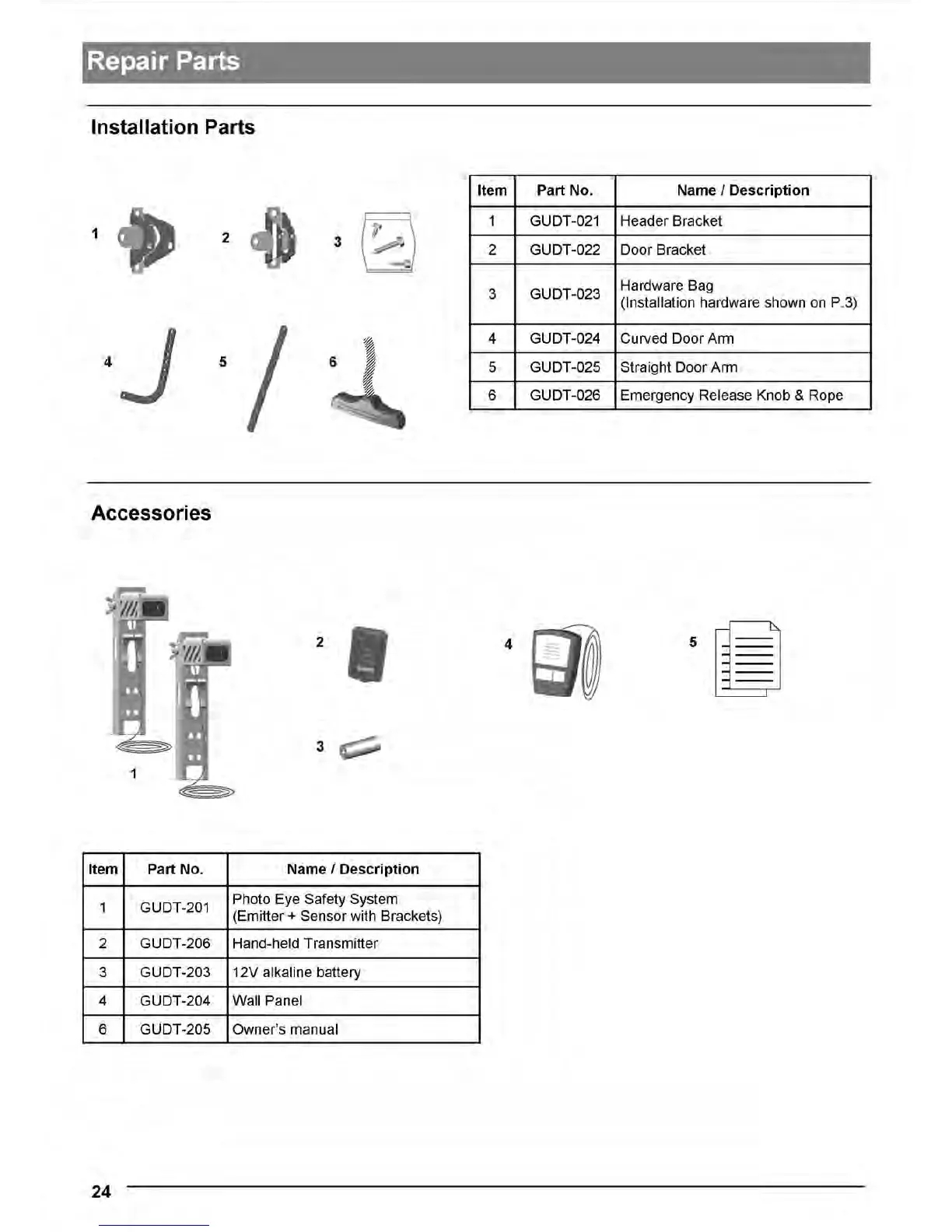

Repair Parts
24
Installation Parts
24
Accessories
24
Opener Assembly Parts
25
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Guardian 628 and is the answer not in the manual?
Ask a question
Guardian 628 Specifications
General
Horsepower
1/2 HP
Drive Type
Chain Drive
Frequency
60 Hz
Security
Rolling Code Technology
Battery Backup
No
Voltage
120V
Remote Control
Yes
