Guardian DCS2 User Manual

19

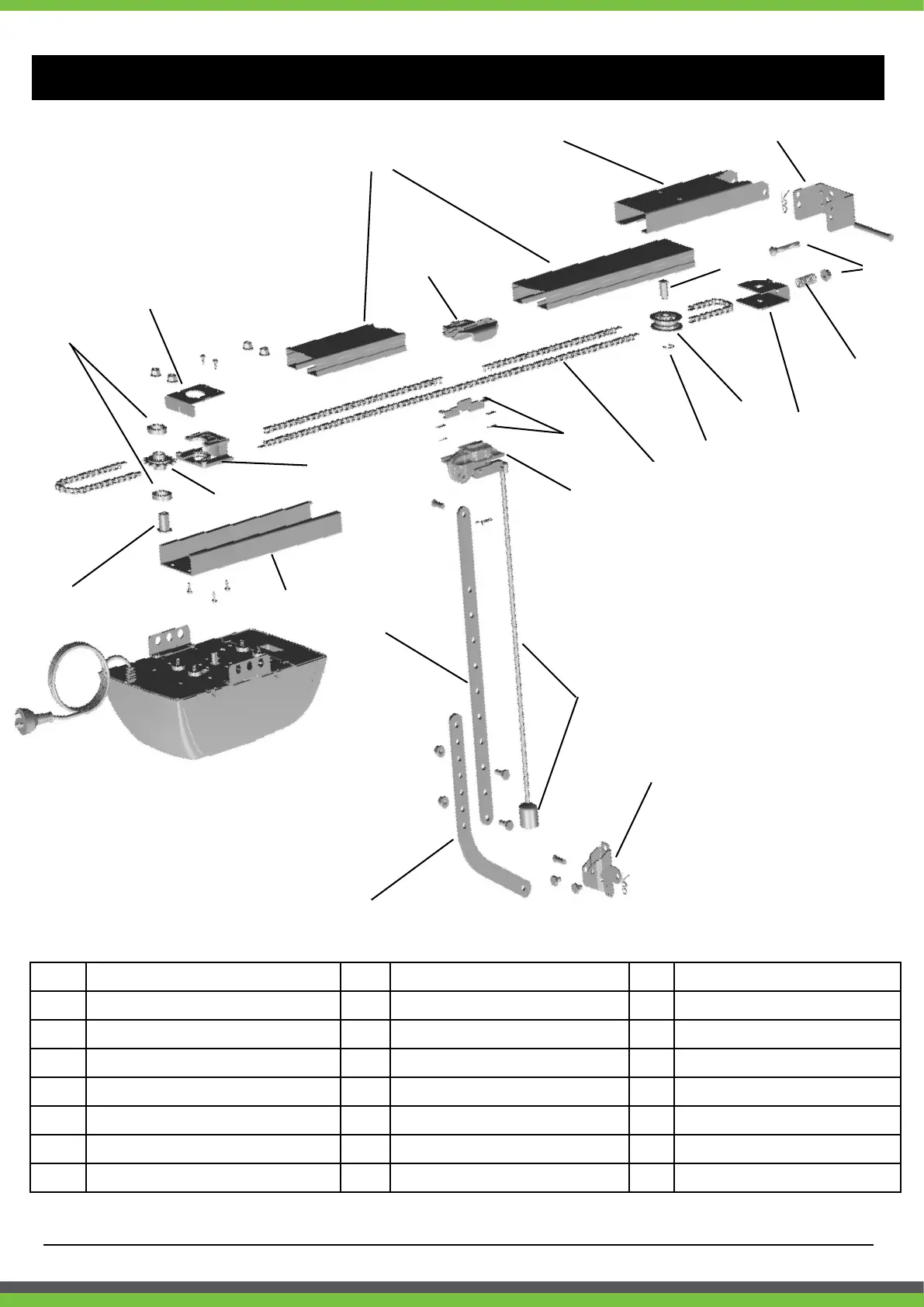

Rail and Hardware Parts List
B-1 Motor Shaft Adaptor B-2 Bearings B-3 Drive Shaft Retainer
B-4 Drive Sprocket Assembly B-5 Head End Bracket B-6 Curved Door Arm
B-7 Sprocket Brace B-8 Straight Door Arm B-9 Rail
B-10 Trolley Plate B-11 Emergency Pull-Cord w/ Knob B-12 Connector/Connector Link
B-13 Trolley B-14 Door End Bracket B-15 Door Bracket
B-16 Chain B-17 E-Ring B-18 Pulley Spindle
B-19 Return Pulley B-20 Jamb Bracket B-21 Pulley Brace
B-22 Compression Spring B-23 Tension Bolt
B-7
B-5
B-9
B-14
B-10
B-12
B-21
B-18
B-19
B-8
B-17
B-3
B-13
B-16
B-4
B-11
B-20
B-2
B-1
B-22
B-6
B-15
B-23
