Guardian DCS2 User Manual

6
#12x1＂Lag Screw
Pre-Drawn
Vertical Line
1/2 Door Frame
1/2 Door Frame
Pre-Drawn
Horizontal
Header Bracket
05
Assembly 02
06

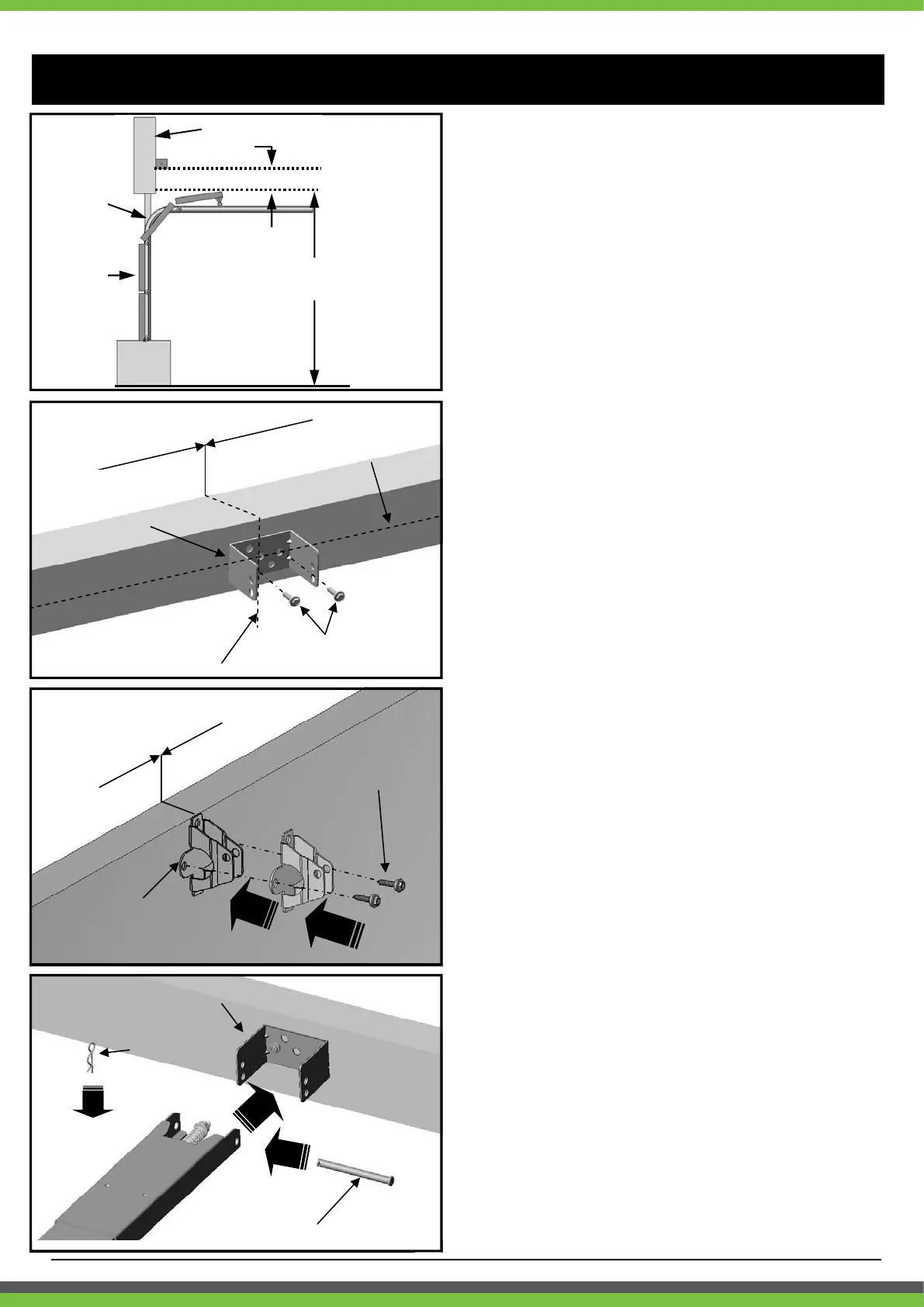

STEP 5.
Install head bracket. The height is seen in fig.5 Head
bracket position is higher than header wall and mark the
horizontal line.
STEP 6.
Make a centerline on door frame, and cross the previous
horizontal line. Fasten the cross point with screws.
STEP 7.
Mount door bracket at the position of center of top panel
with screws.
STEP 8.
Connect track end and header bracket using clevis pin
long. Insert hitch pin into clevis pin long .
Support
Block
Door
Track
Header Wall
High Point of
Door Travel
5cm Clearance
1
2
07
1/2 Door Panel
1/2 Door Panel
Clevis Pin
Hitch Pin
#12x1” Lag
Screw
Door Bracket
Header Bracket
3
2
1
08
