Gude Expert Power Control 8042 Series User Manual

9
Expert Power Control 8042 © 2020 GUDE Systems GmbH
Device Description
1.4 Installation

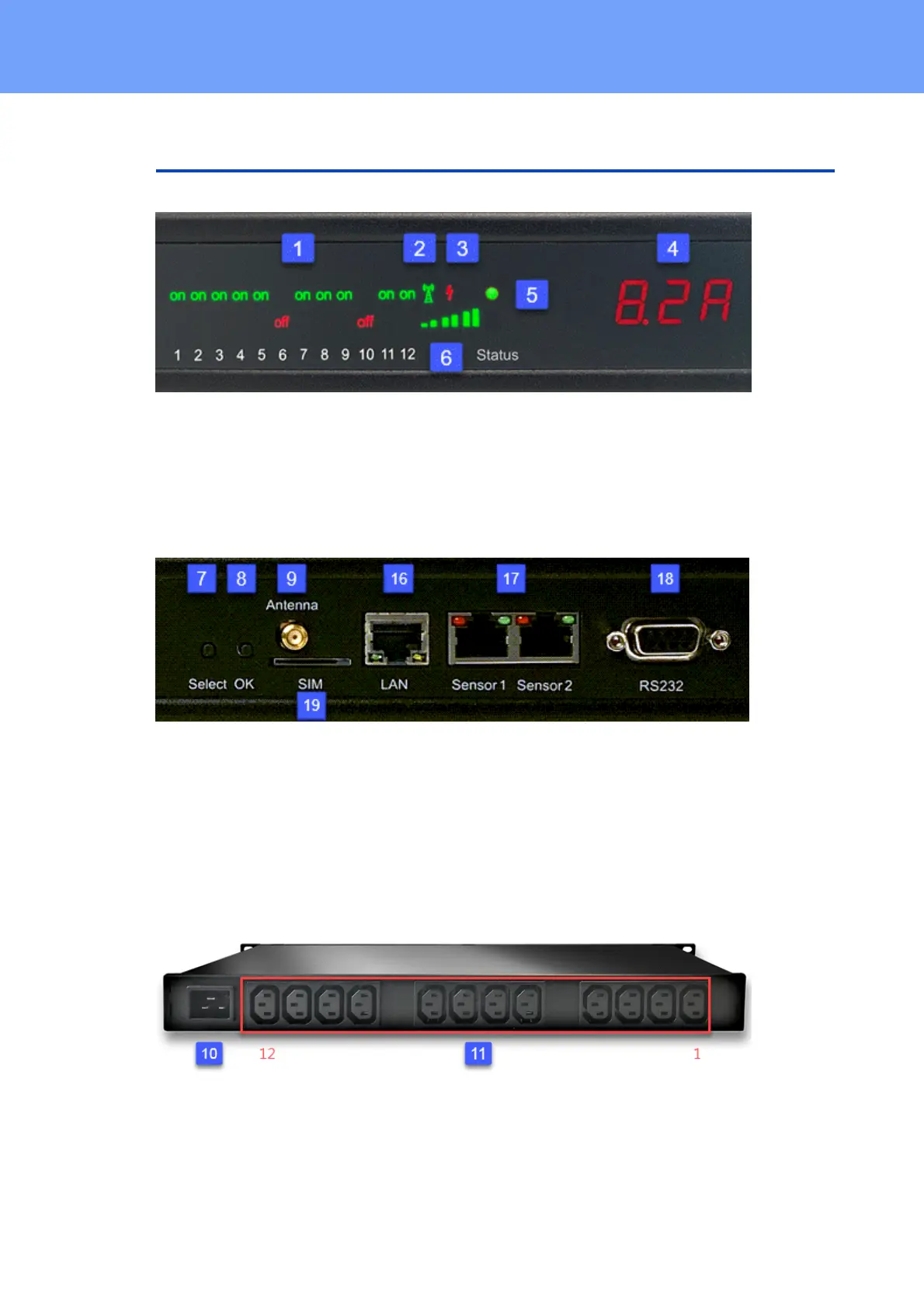

1. 12 plain text displays (on/off) for the state of the outputs
2. Antenna symbol when GSM is switched on
3. LED indicator for Over Voltage Protection (red - surge protection is inactive)
4. Current power consumption (7-segment display)
5. Status LED
6. GSM signal strength (3 Led's)
5. Select button
6. Ok button
7. Ethernet connector (RJ45)
8. External sensor connectors (RJ45)
9. RS232 connector
16. Antenna connection
17. SIM card slot
Expert Power Control 8042 - 1
10. Mains supply (IEC C20, max.16 A)
11. 12 x Load outputs (IEC C13, max. 16 A)
Expert Power Control 8042 - 2

Gude Expert Power Control 8042 Series Specifications

General

Brand	Gude
Model	Expert Power Control 8042 Series
Category	Controller
Language	English
