9 of 15
Step 20
：Attach the door crossbar(TS305.15) to the door upright rail (TS305.16) by using one 1/4"-20×2" bolt
(48153B), one nylon washer blk 5/16" and one 1/4" lock nut (48752B). Leave these hand tight for now
.
(Figure
21)
Step 21：Attach the door crossbar (TS305.15) to the door upright left rail(TS305.22) by using one spring lock pin
(63282)
. (Figure 22)

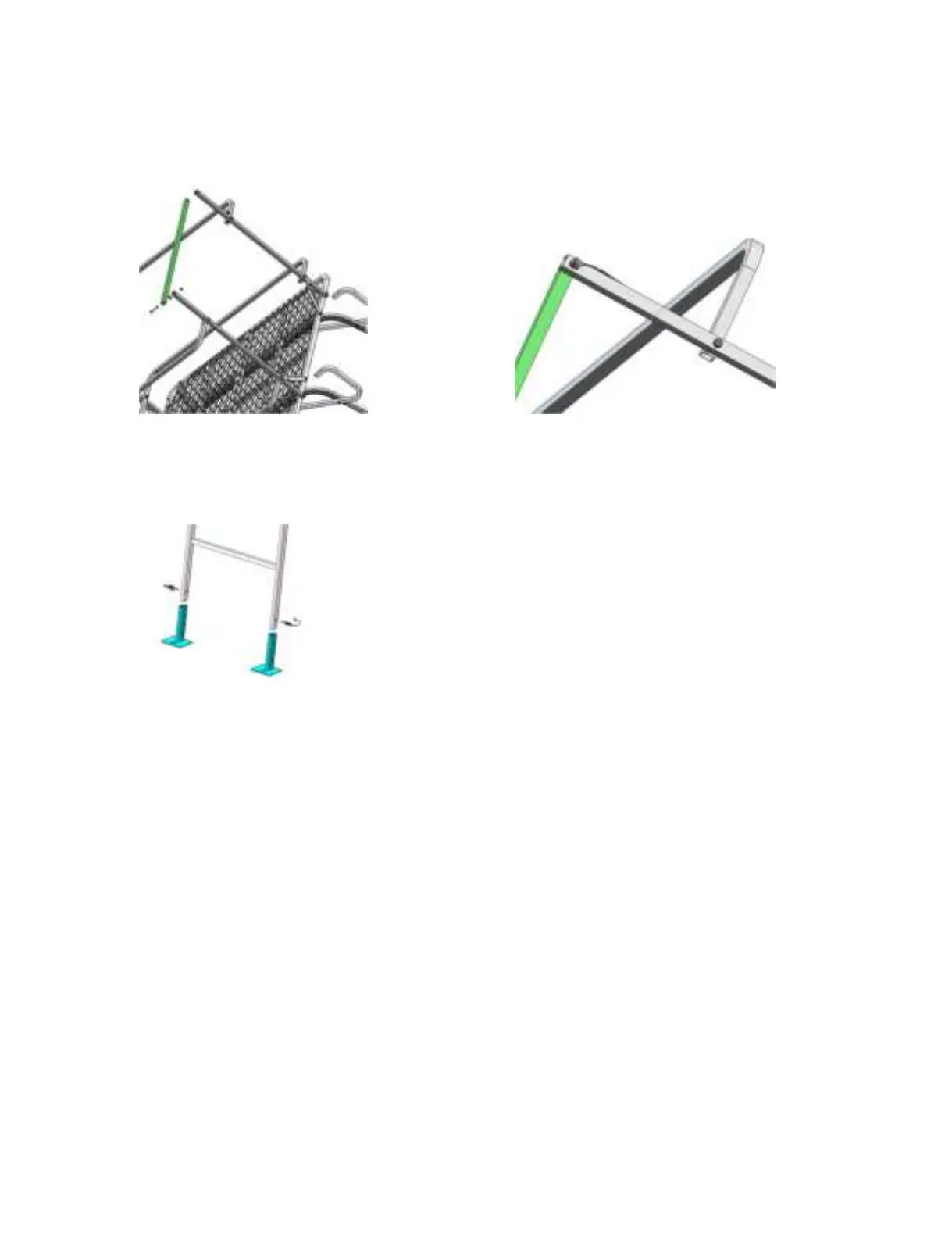

Figure 21 Figure 22
Step 22
：Attach the two ladder feet (TS305.01) to the ladder section (TS305.02) by using two two spring lock
pins (63281). (Figure 23)
Figure 23
Step 23
： You may now tighten all nut & bolt assemblies. Be sure not to over tighten as this could cause the
tubing to be crushed or damaged!
NOTE: Please recheck all nuts/bolts/pins to ensure all are tightened and installed correctly.
