8 of 15

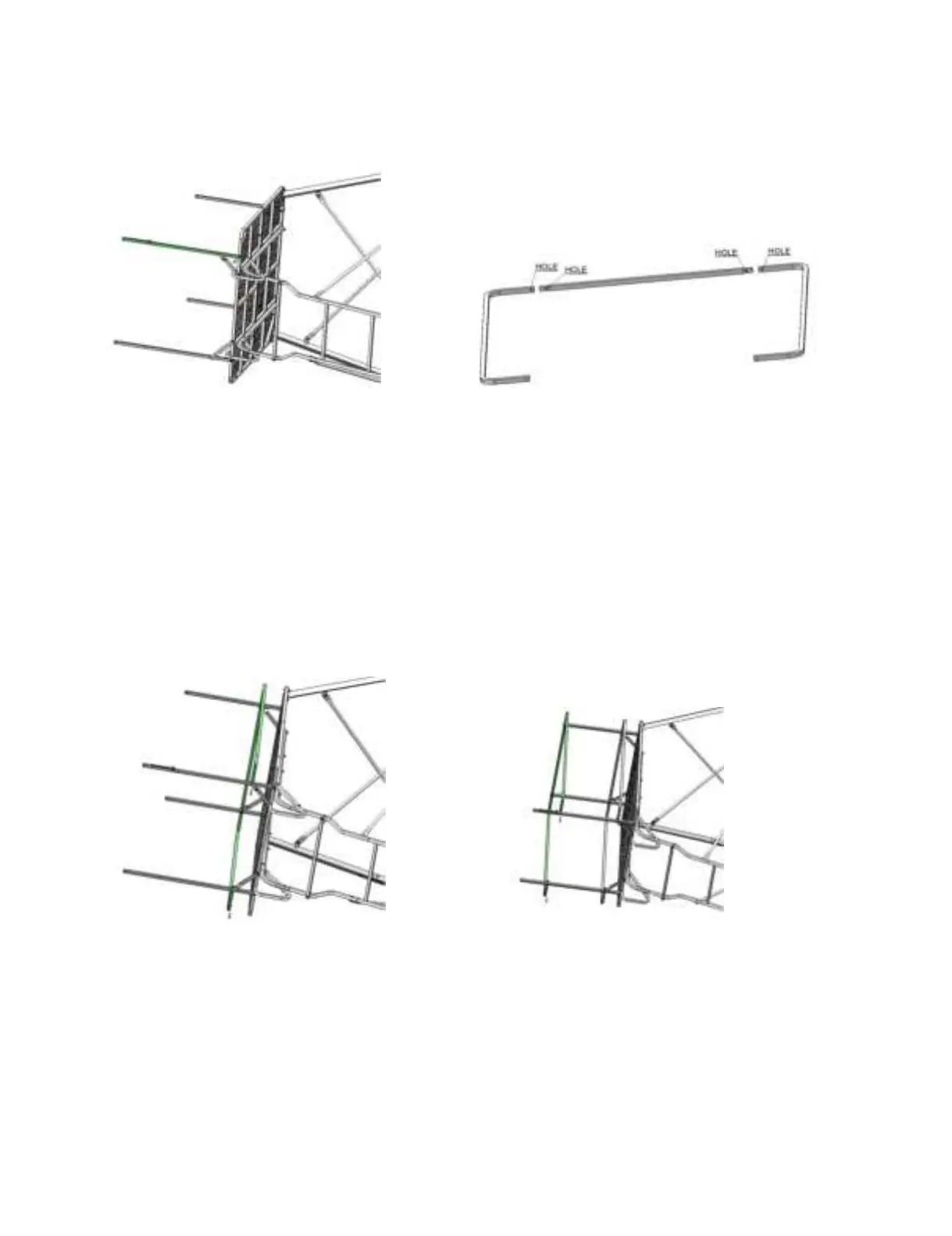

Step 16
：Attach the door upright left rail (TS305.22) to the platform by using one 1/4"-20×2" bolt (48153B) and
one 1/4" lock nut(48752B). Leave these hand tight for now. (Figure 17)
Step 17：Insert one shooting rail bar(TS305.13) into the two shooting rail connectors (TS305.12). Repeat this
step for the other shooting rail. Leave these hand tight for now. (Figure 18)
Figure 17 Figure 18
Step 18
： Attach the assembled shooting rail to the two platform vertical rails (TS305.11),the door upright rail
(TS305.16) and the door upright left rail (TS305.22) by using four 1/4"-20×2-1/4" bolts (48271B) and four 1/4"
lock nuts (48752B). Leave these hand tight for now. (Figure 19)
Step 19
： Attach the assembled shooting rail to the two platform vertical rails (TS305.11),the door upright rail
(TS305.16) and the door upright left rail (TS305.22) by using four 1/4"-20×2" bolts (48153B) and four 1/4" lock
nuts(48752B). Leave these hand tight for now. (Figure 20)
Figure 19 Figure 20
