Guide Gear TS305 - Assembly Steps Continuation (11-15); Frame and Rail Assembly

7 of 15

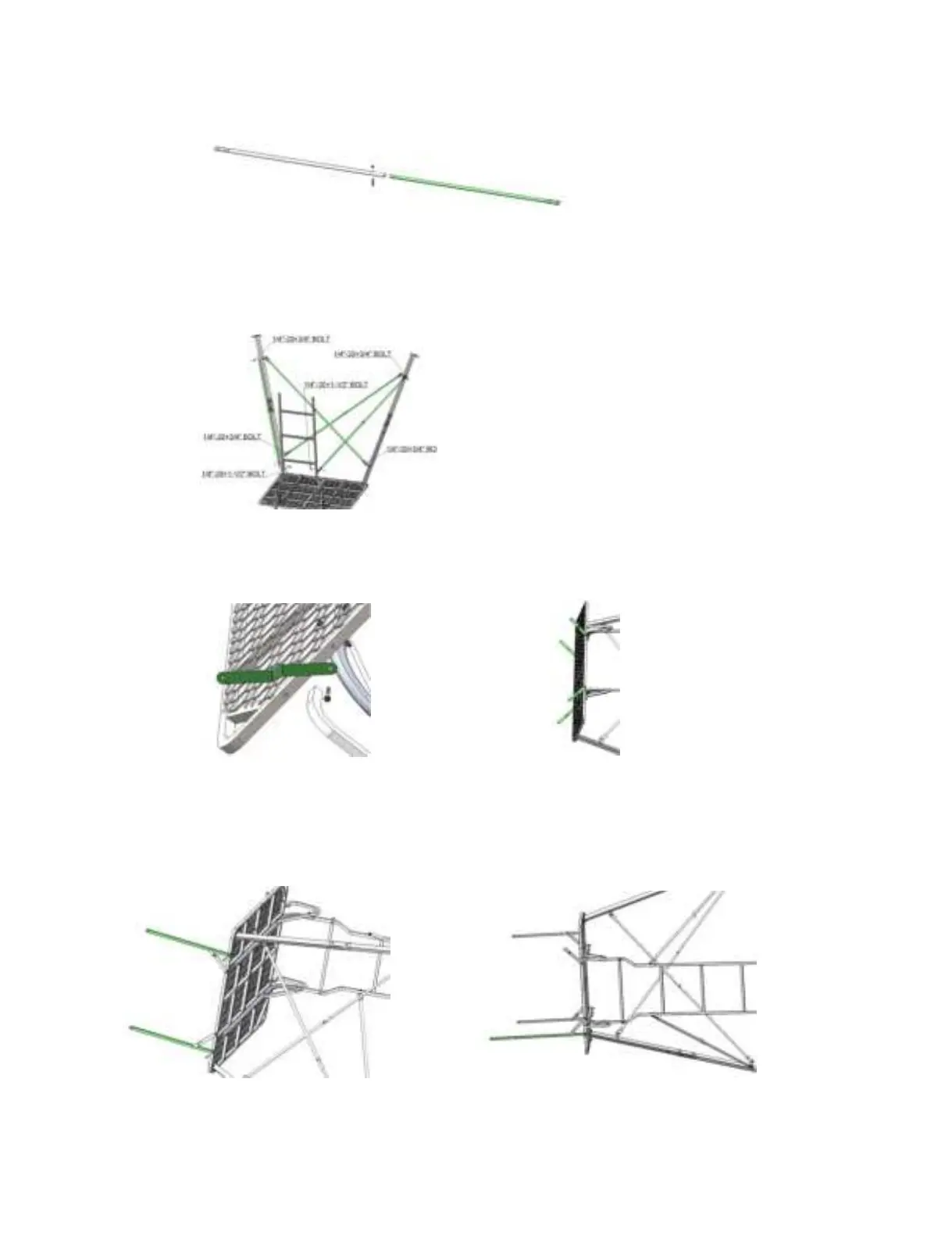

Step 11: Insert the one lower cross brace(TS305.04) into the one upper cross brace(TS305.03) by using one
1/4"-20×1-1/2" bolt (48240B) and one 1/4" lock nut(48752B). Repeat this step for other three cross braces.
Leave these hand tight for now (Figure 11).
Figure 11
Step 12: Attach the four cross braces to the ladder section (TS305.02) and the leg by using two 1/4"-20×1-1/2"
bolts (48240B), six 1/4"-20×3/4" bolts (48220B) and eight 1/4" lock nuts(48752B). Leave these hand tight for
now (Figure 12).
Figure 12
Step 13: Attach the four flat iron supports (TS305.14) to the platform by using four 1/4"-20×1-1/2" bolts (48240B)
and four 1/4" lock nuts (48752B). Leave these hand tight for now (Figure 13 & 14).
Figure 13 Figure 14
Step 14: Attach the two platform vertical rails (TS305.11) to the platform by using two 1/4"-20×2" bolts (48153B)
and two 1/4" lock nuts (48752B). Leave these hand tight for now (Figure 15).
Step 15: Attach the door upright rail (TS305.16) to the platform by using one 1/4"-20×2" bolt (48153B) and one
1/4" lock nut (48752B). Leave these hand tight for now. (Figure 16)
Figure 15 Figure 16
