Guild BBS08G - Blade Guide and Support Bearing Adjustment

Customer Helpline 0333 3201989
13
Assembly Instructions

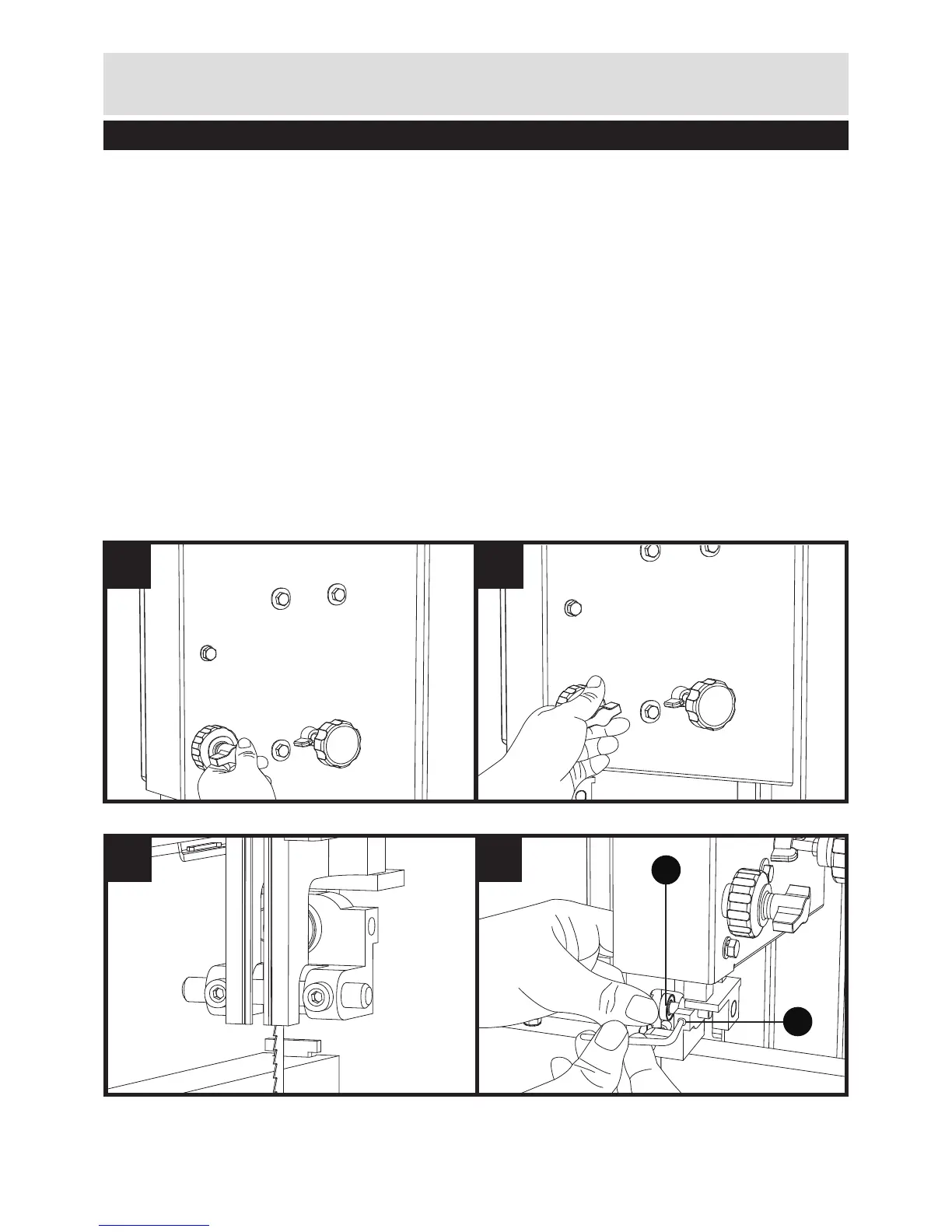

4� Adjusting the Upper Blade Guide (11) (See Fig D1-D3)
Undo the fixing handle (20).
Turn the setting handle (19) to lower the Blade Guide (11) as close as possible to the
workpiece to be cut. The gap should be approx 2-3 mm.
Re-tighten the Fixing Handle (20).
Check the setting before each cut and re-adjust if necessary.
5� Setting the blade guide (See Fig C-F)
Whenever you change the blade you must reset both the Support Bearings (30 + 31) and the
Guide Pins (28+29).
Undo the Hood Closure (13) with the screwdriver from outside and open the Side Cover (12).
(See Fig C)
5�1� Upper Support Bearing (30) (See Fig E)
Lower the upper guide to a proper height (Refer to step4)
Undo the Screw (32) in a counterclockwise direction. (See Fig D3)
Move the Support Bearing(30) so that it is no longer touching the blade (26). There should
be a maximum gap of 0.5 mm.
Re-tighten the screw (32).
C
A3 A4
A5 F3
B1 B2
G
J K
N1 N2
O
P
Q
D3
D1 D2
L MA1 A2
I1 I2
H1 H2
F1 F2
E
18
27
2
1
30
32
33
31
28
34
28
29 29
35
11
36
37
17
b
a
24
21
15
26
24
15
c
d
