Assembly Instructions

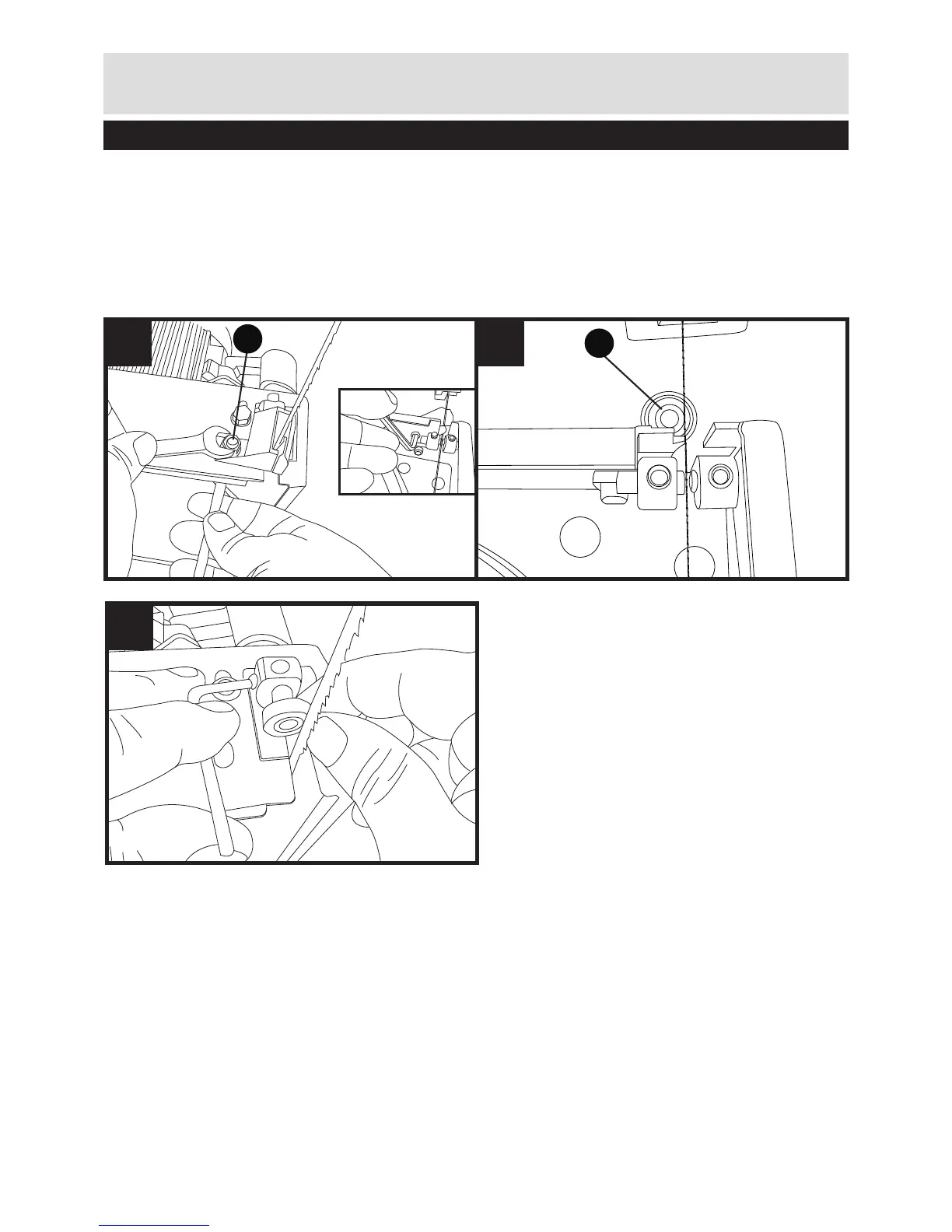

4�2� Adjusting the Lower Support Bearing (31) (See Fig F1-F3)
Lower the upper guide to a proper height (Refer to step4)
Dismantle the Saw Table (15).
Undo the Screw (33). (See Fig F1,F2)
Adjust in the same way that the upper support bearing was adjusted. (See Fig F3)
The blade (26) is only supported by the Support Bearings (30 + 31) during cutting. When idle
the blade should not touch the ball bearing.
