Assembly Instructions

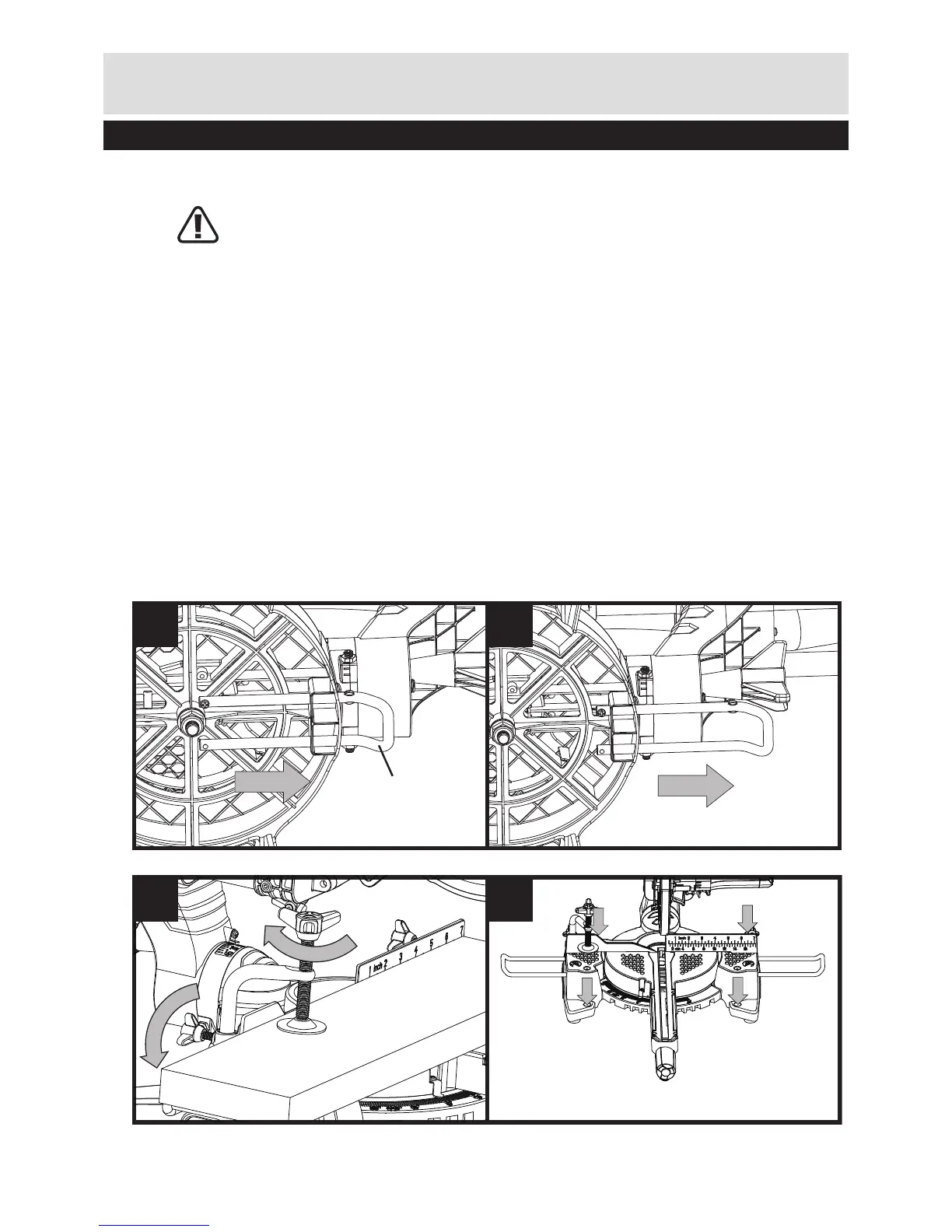

3. THE SUPPORT STAND (SEE FIG B2, B3)
Pull the support stand to its extreme, as shown in Fig B2, B3.
WARNING: Always keep the support stand at its extreme out position when using
the product.
4. WORK CLAMP (SEE FIG C)
1) The work clamp can be fitted on either side of the saw and is fully adjustable to suit the
size of the workpiece.
2) Do not operate the saw without clamping the workpiece.
3) Make sure that the work clamp securing screws are tightened.
5. MOUNTING HOLES (SEE FIG D)
Before use, the saw can be fixed to a firm, level surface with the 4 mounting bolts (not
supplied).
Four holes are provided in the base of the saw to enable it to be fixed to a bench, or
other supporting surface.
To mount the saw, proceed as follows:
1) Locate and mark where the saw is to be mounted.
2) Drill 4 holes through the surface.
3) Place the sliding mitre saw on the surface aligning holes in base with holes drilled in
the surface. Install bolts, washers and hex nuts.
