Operating Instructions

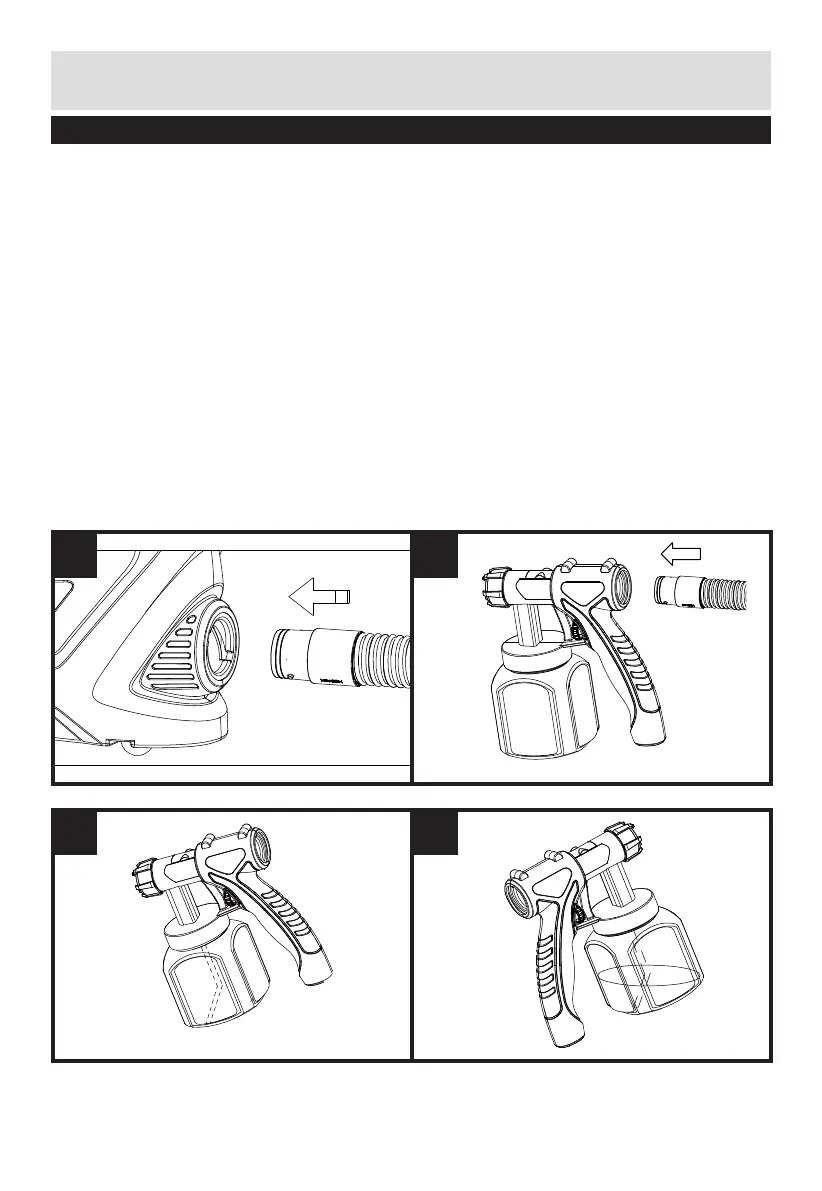

4. CONNECT THE AIR HOSE TO THE TOOL.

1) Insert the air hose end to the guide at side of device ﬁrmly. (See Fig. B1)

2) Insert another side of air hose to the connector of gun side ﬁrmly. (See Fig. B2)

5. THE RISER

1) Unscrew the container of the spray gun.

2) Assemble the riser correctly according to different situation to reduce the liquid in the

container as much as possible.

Spraying with underlying objects

- rotating riser forward. (SEE FIG. C1)

NOTE: Don’t tilt it at a large angle.

Spray job with overhead objects

- rotating riser backwards. (SEE FIG. C2)

Note: Don’t tilt it at a large angle.

3) Place one paper under the container. Pour the prepared coating material into the container.

4) After you pour liquid into the container, screw the container back into the spray gun. And

tighten it.
