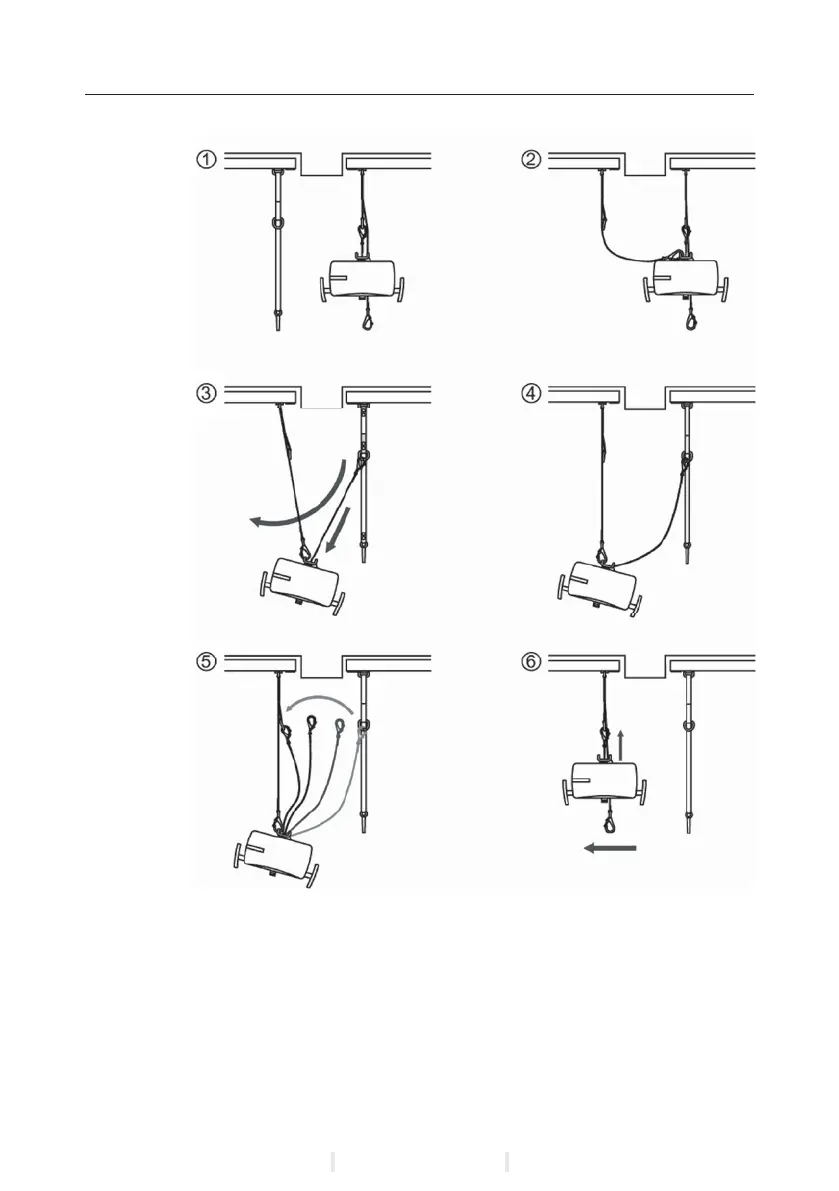

1.07 Swing - Kit.
1. Place the two Swing-Kit transfer straps as close to each other as possible.
DH 1000 is mounted on the oval hook of one of the transfer straps.
2. The free Swing-Kit strap is hook on to the loop bracket on top of DH 1000.
3. Lower DH 1000 while it smoothly swings into the adjoining room, as the load
is gradually transferred from the DH 1000 lifting strap to the Swing strap.
4. After the Swing is completed, the lifting strap is no longer loaded.
5. Hook the unloaded lifting strap on to the oval hook of the loaded Swing strap.
6. The transfer is completed and the DH 1000 is ready for use.
