19
6.00 Technical specications

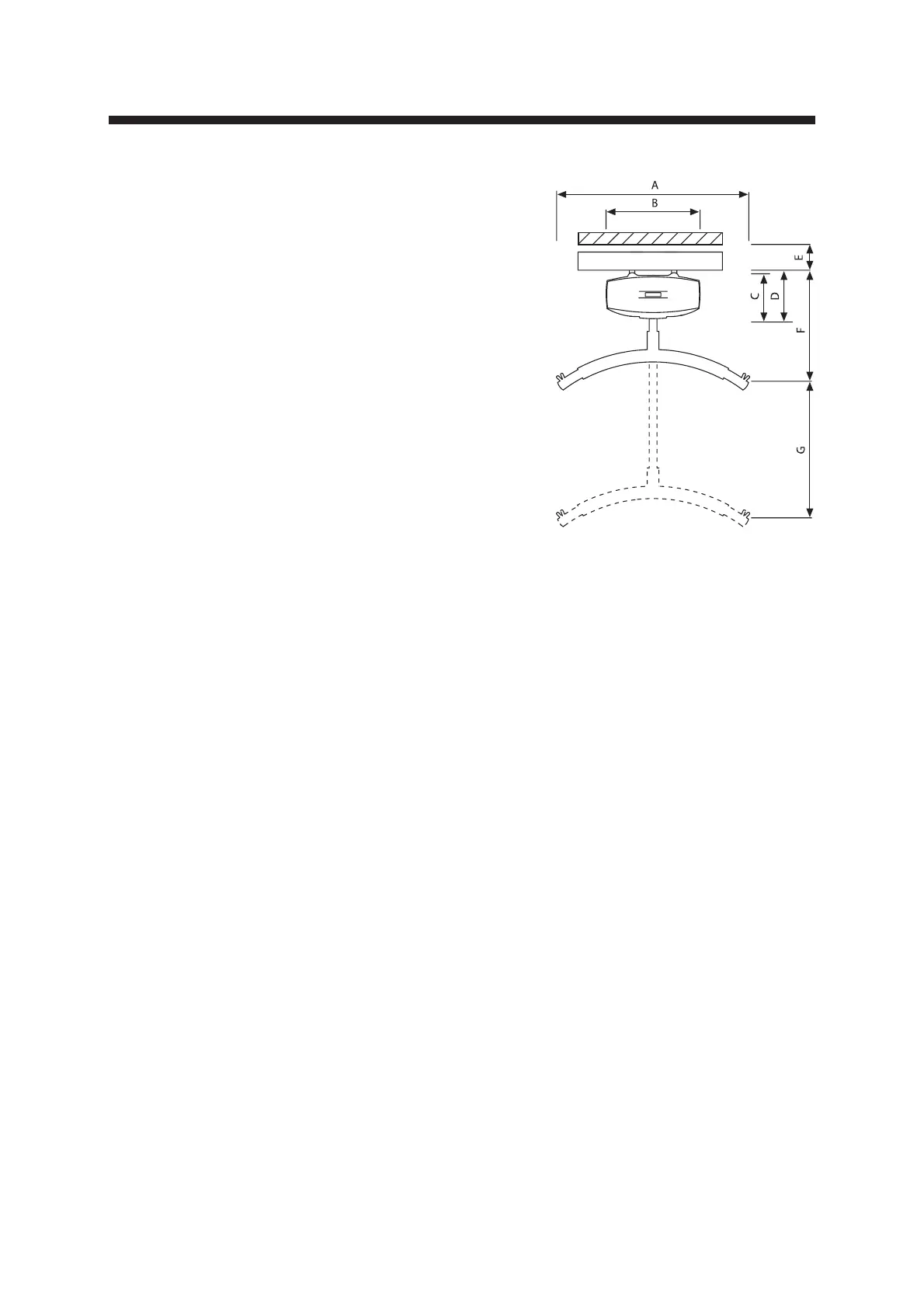

Dimensions
A 595 mm 23¾”
B 300 mm 12”
C 148 mm 6”
D 160 mm 6½”
E, min. 82 mm 2½”
F, min. 370 mm 15”
G 1850 mm 73”
Depth of Hoist 197 mm 8”
GH2, GH2+2 and GH2+2R
Max. load ....................................200 kg......440 lbs.
Max. number of lifts in series (AC) . . . . . . . . . . . . . . . 92 with 85 kg/1000 mm
92 with 187 lbs./40”
36 with 200 kg/1000 mm
36 with 440 lbs./40”
Max. number of lifts in series (DC) . . . . . . . . . . . . . . . 72 with 85 kg/1000 mm
72 with 187 lbs./40”
32 with 200 kg/1000 mm
32 with 440 lbs./40”
Lifting speed:
with 85 kg load / 187 lbs. ..................1680 mm/min......66”/min
with 200 kg load / 440 lbs. .................1200 mm/min...... 47”/min
with max. 5 kg load / max. 11 lbs. ...........3300 mm/min.....130”/min
(Dual-speed)
GH2+2 and GH2+2R
Speed on straight rail at full load . . . . . . . . . . . . . . 15 cm/sec........6”/sec.
Soft start/stop
GH2 HD
Max. load ....................................250 kg......550 lbs.
Max. number of lifts in series (AC) . . . . . . . . . . . . . . . 92 with 85 kg/1000 mm
92 with 187 lbs./40”
32 with 250 kg/1000 mm
32 with 550 lbs./40”
Max. number of lifts in series (DC) . . . . . . . . . . . . . . . 72 with 85 kg/1000 mm
72 with 187 lbs./40”
28 with 250 kg/1000 mm
28 with 550 lbs./40”
