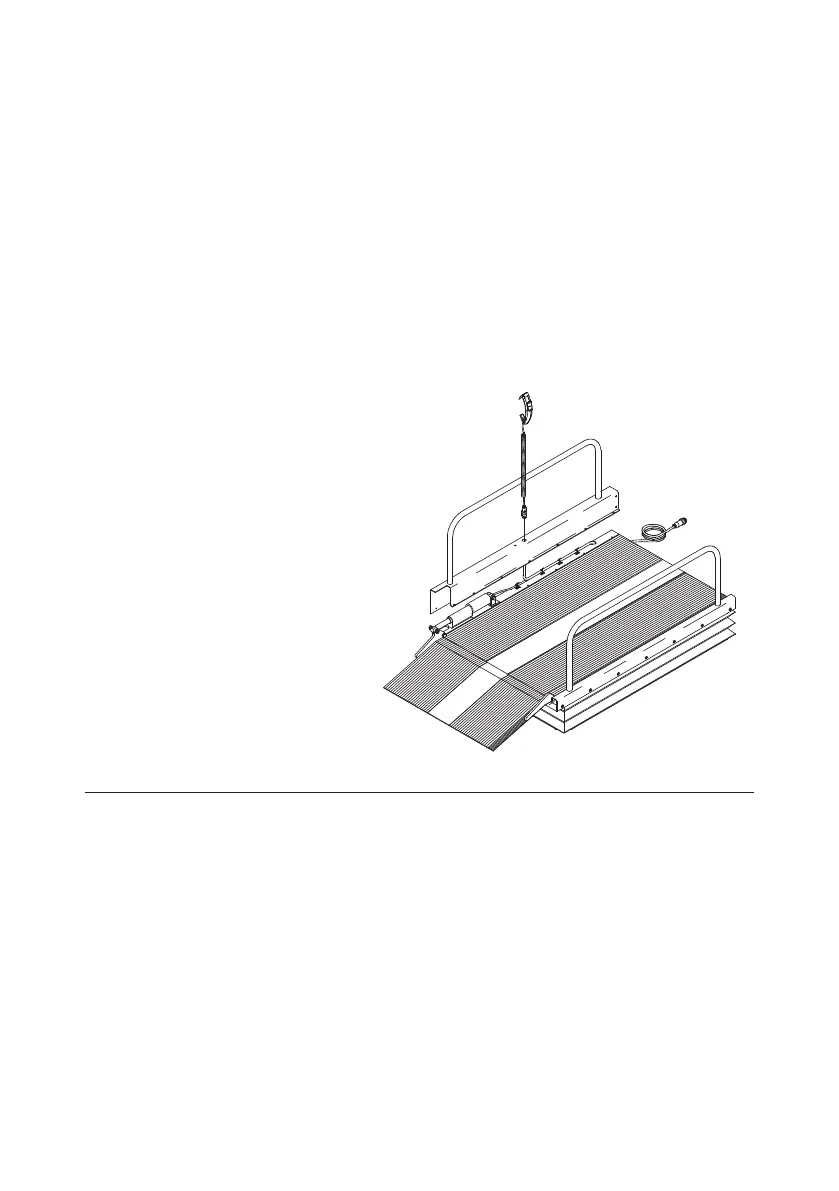

Safety edge/railing, right side (actuator side)
1. Unscrew the mounting screws which are premounted from the factory on
the upper plate.
2. Mount the safety edge/railing on the upper plate and tighten the screws
again.
End caps
1. Insert end caps in the ends of the lower safety edge.
Hand switch
1. Hang the hand switch on the railing.
2. Connect the plug to the corresponding female plug in the safety edge.
3. Tighten the union nut and switch on the current.
As the noise level of the lifting
platform is minimal, no steps
should be taken to reduce the
noise level further during the
installation.
1.07 Assembly – Recessed Lifting Platform
If the lifting platform is recessed, it must be assembled by the Guldmann
Service Team or by an engineer authorised/instructed by Guldmann.
The assembly must follow the mounting drawings/assembly instructions.
The assembly instructions shall be given to the engineer by the manufacturer
or the distributor.
