Balanced earphone connection
In order to achieve the best driving performance, it is recommended to use an independent
pair of wires (positive and negative phase) for each channel to drive the headphones in
a balanced manner. When connecting balanced headphones, avoid midpoint or common ground
connections.
H16 headphone amplifier provides three different interfaces to connect balanced
headphones. The specific pin definitions are as follows:

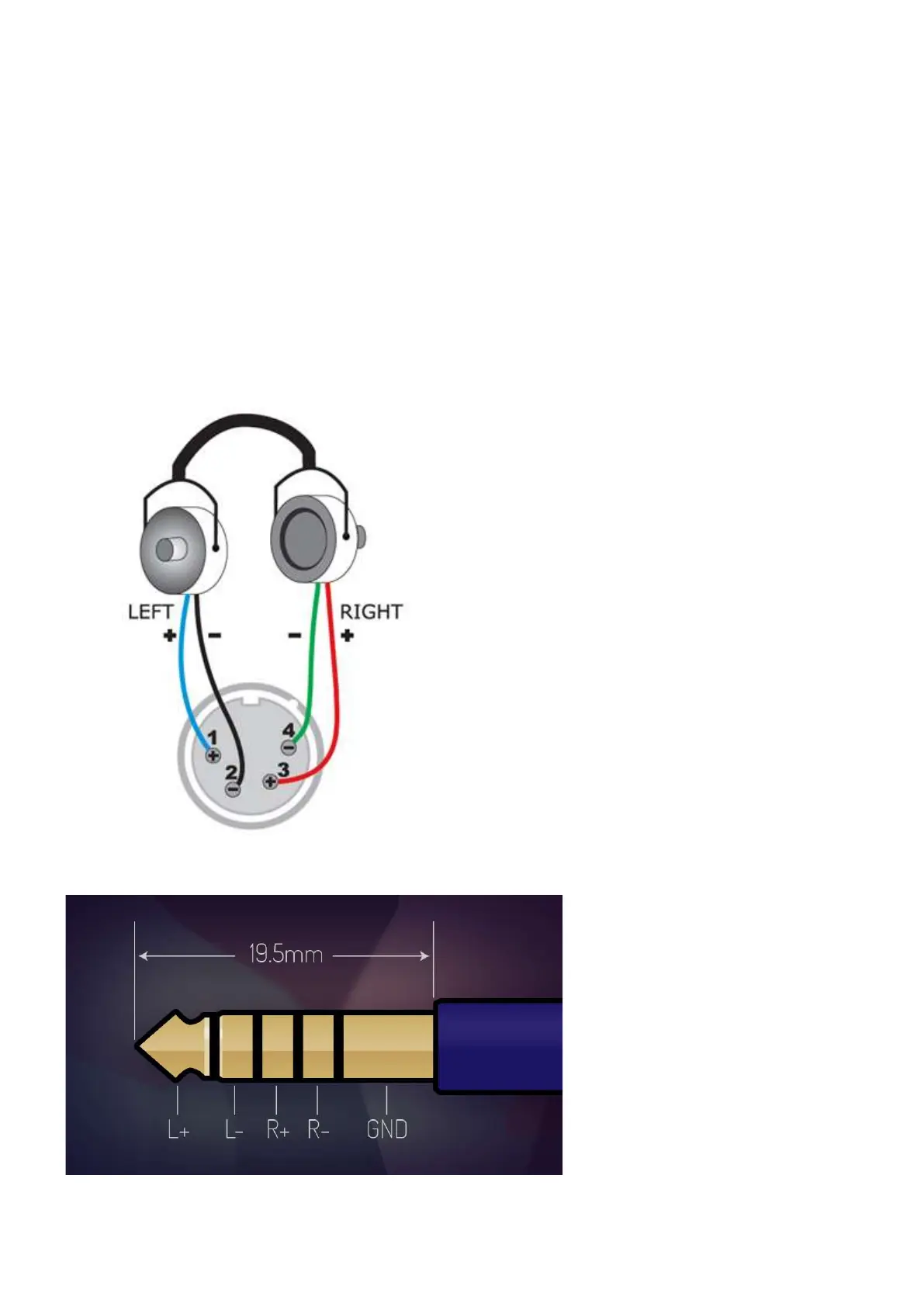

Use a single four-pin XLR connector (male). For example: Neutrik NC4MC-B connector.
The signal connection is as follows:
Pin 1= Left+ Pin 3= Right+
Pin 2= Left- Pin 4= Right-
Use 4.4 balanced connector
