LIRA
™
2.4
JUNCTION BOX DIAGRAM: NON-DIMMING
WARNING
Ensure power supply is turned OFF before making any connections. Connecting the luminaire while the power is turned
ON may result in equipment damage.
Connect Class 2, 24VDC output to power conductors of ELV LIRA luminaire : red(+), black(-).
NOTE: LIRA luminaires require 24VDC Class 2 power supply. Total load shall not exceed power rating of PDB-ELV/PS-ELV and should be under 100W to
remain Class 2. If PSU is other than Class 2, provisions must be made to create Class 2 outputs.

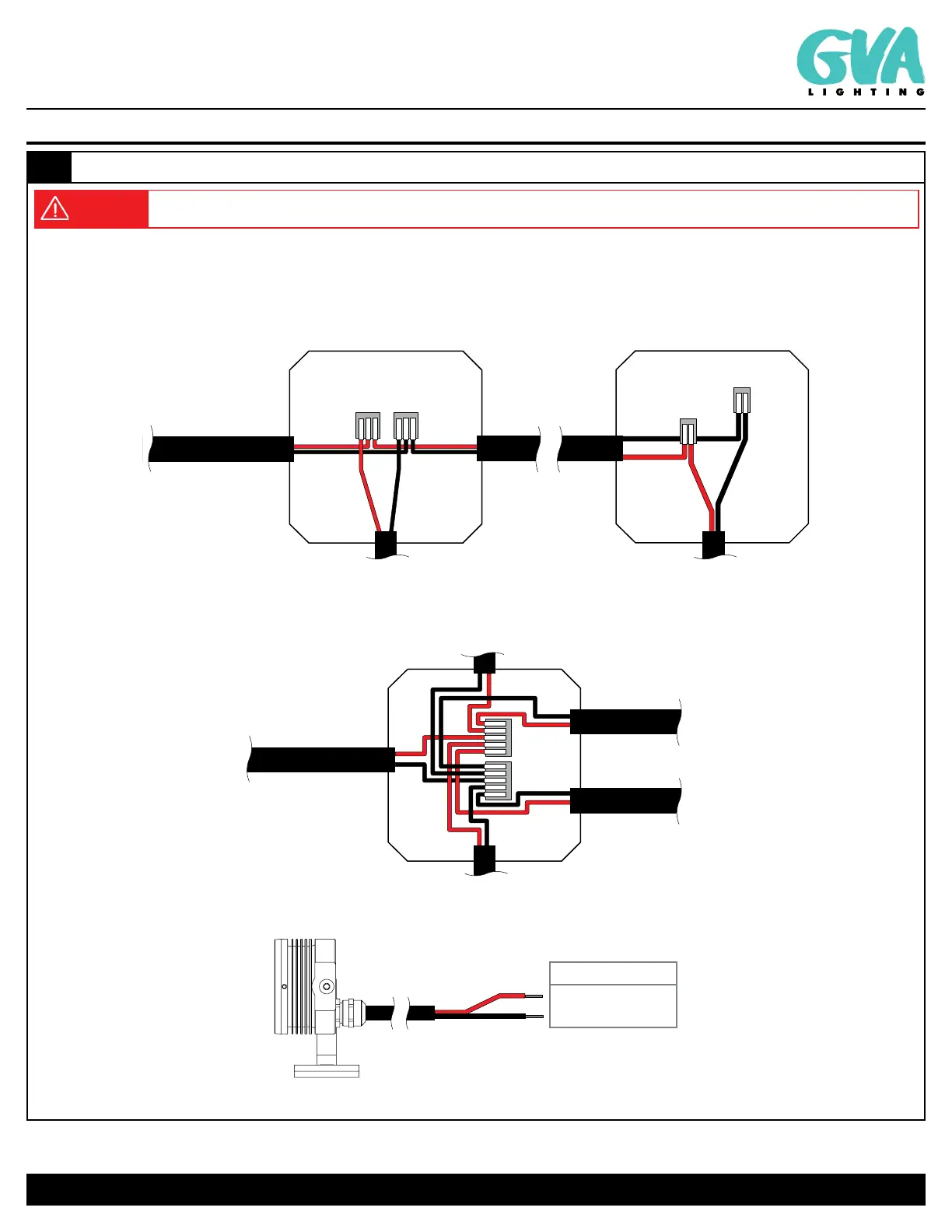

2.4.A Junction Box Wiring Diagram: Non-Dimming Bus
(supplied by others)
(supplied by others)
24VDC INPUT CABLE
(from PS, supplied by others)
24VDC OUTPUT CABLE
(supplied by others)
24VDC OUTPUT
24VDC OUTPUT
2.4.B Junction Box Wiring Diagram: Non-Dimming Radial/ Star
24VDC INPUT CABLE
(from PS, supplied by others)
24VDC OUTPUT
24VDC OUTPUT
(to ND luminaire)
24VDC OUTPUT
(to ND luminaire)
(to DMX luminaire)
2.4.C Luminaire Connections: Non-Dimming
INPUT/OUTPUT
RED = 24VDC
BLACK = 24VDC
