LIRA
™
2.5

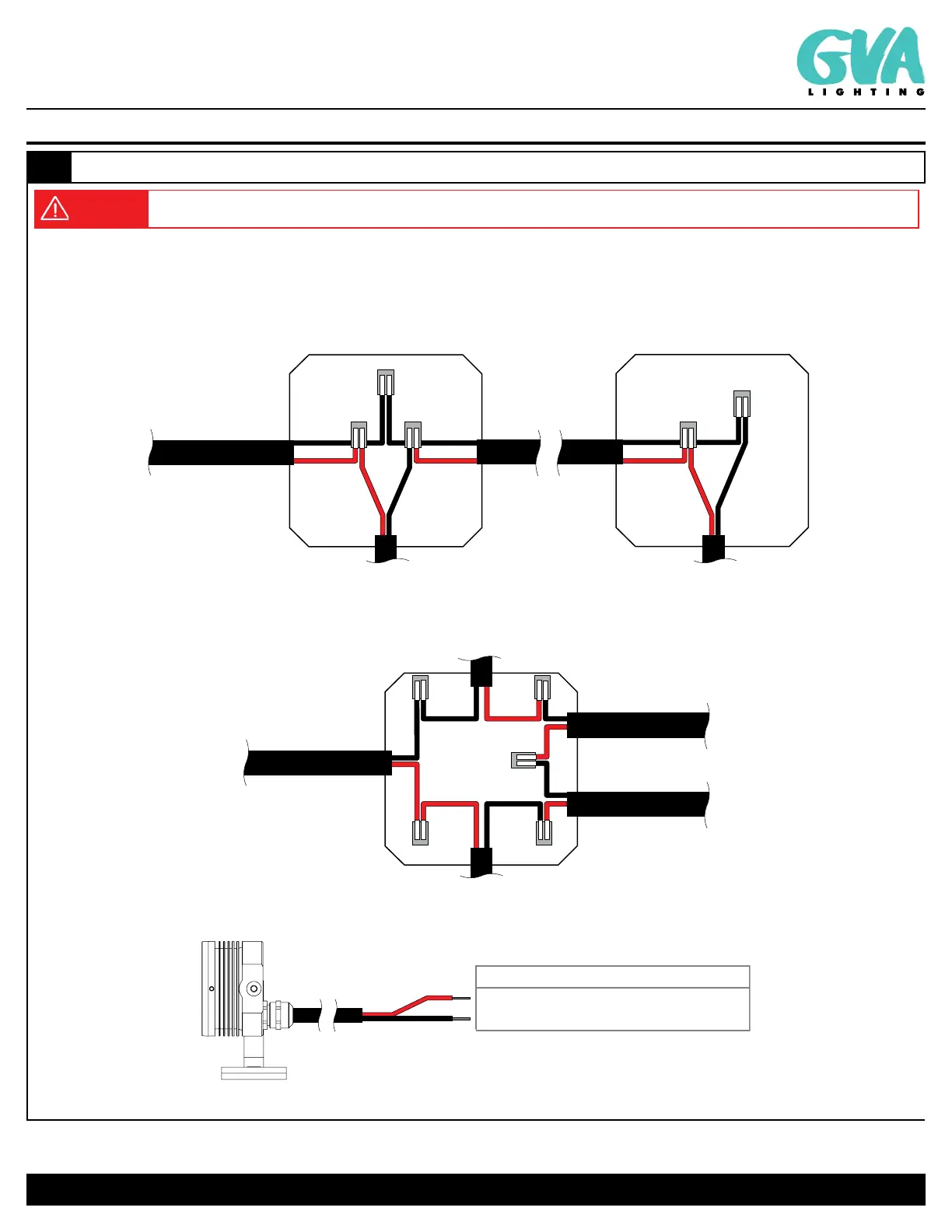

JUNCTION BOX DIAGRAM: CONSTANT CURRENT
WARNING
Ensure power supply is turned OFF before making any connections. Connecting the luminaire while the power is turned
ON may result in equipment damage.
Connect Class 2, 12V Constant Current output to power conductors of LIRA luminaire : red(+), black(-).
NOTE: LIRA Constant Current Luminaires require at lease 12VDC constant current, maximum 60VDC, Class 2 power supply with Class 2
outputs. If PSU is other than Class 2, provisions must be made to create Class 2 outputs.
2.5.A Junction Box Wiring Diagram: Constant Current Bus
FIRST JUNCTION BOX
(supplied by others)
LAST JUNCTION BOX
(supplied by others)
12VDC CC INPUT CABLE
(from PS, supplied by others)
12VDC CC
OUTPUT CABLE
(supplied by others)
12VDC CC OUTPUT
(to CC luminaire)
12VDC CC OUTPUT
(to CC luminaire)
2.5.B Junction Box Wiring Diagram: Constant Current Radial/ Star
12V CC INPUT CABLE
(from PS, supplied by others)
12VDC CC OUTPUT
(to CC luminaire)
12VDC CCOUTPUT
(to CC luminaire)
12VDC CC OUTPUT
(to CC luminaire)
12VDC CC OUTPUT
(to CC luminaire)
2.5.C Luminaire Connections: Constant Current
INPUT/OUTPUT
RED = +12VDC CONSTANT CURRENT
BLACK = -12VDC CONSTANT CURRENT
