GPT-9000/9000A Series Quick Start Guide
20
Z E R 0 I R G B A CW D CW
E
F R E Q = 0 H z 6
0
3 01
A
G B V = V MT I E = 0 0 3 . 2 SR
. 0 m ΩER F =# 0 00
0 0 . 0 m ΩIH ES = 3T
MM A UN N A_2M A N U = * * * - 0 0
m Ω
READY status
AER
D
Y

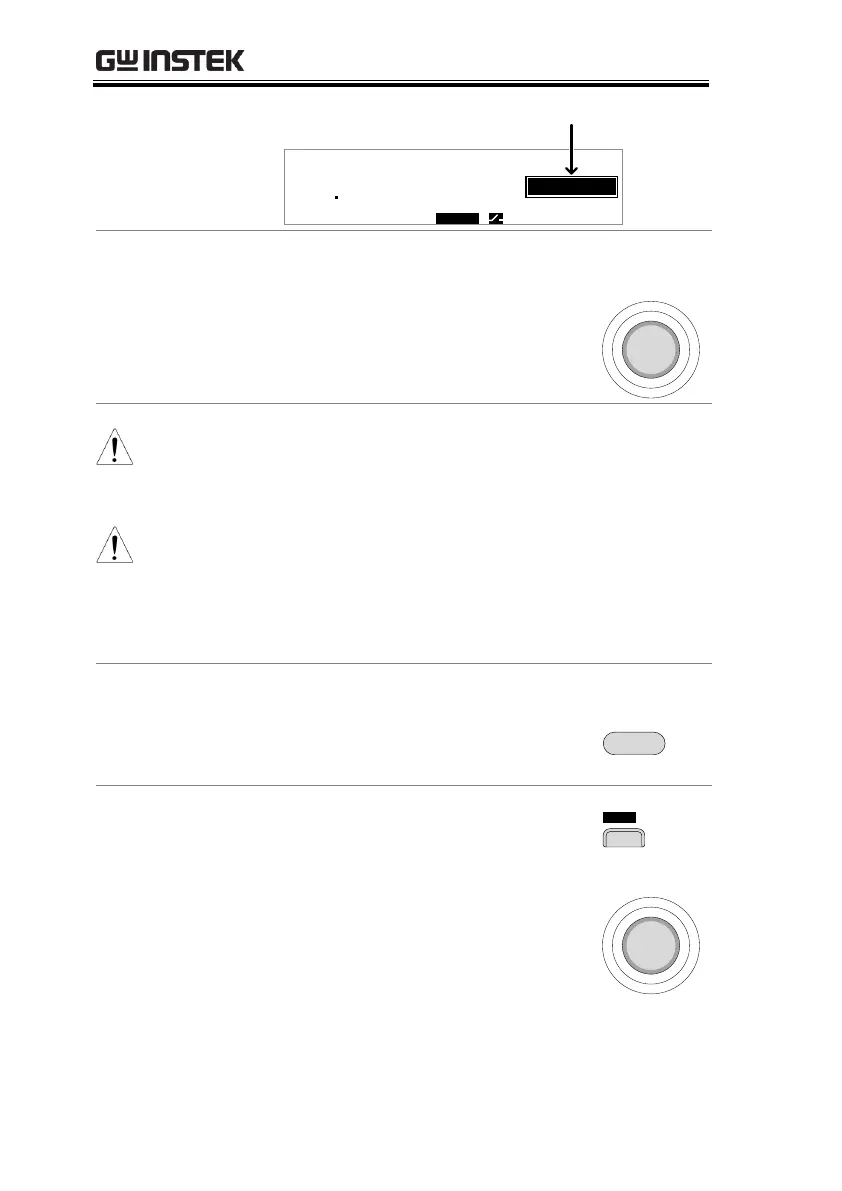

Start Testing
Press the START button to begin testing.
The tester will go into TEST status.
If Double Action is active, the START button must
be pressed 500ms after the STOP button was
pressed to be able to start testing.
If INTERLOCK is set to ON and the interlock key is
not connected to the SIGNAL I/O port,
INTERLOCK OPEN will be displayed on the screen,
preventing the test from starting. See page 26 for
the Common Utility settings.
Return to VIEW Status
Press the MANU/AUTO key when in READY status
to return to VIEW status.
ZERO function (GB test only)
Short the SOURCE H/L & SENSE H/L terminals using
the GLT-115 alligator clips.
In the READY status, press the ZERO soft-key.
Press the START button to perform the zeroing.
The tester will go into the ZERO status.
When finished the tester will return to the VIEW status
and the REF# will be set as measured resistance from
the zeroing.
To Next Page
