SFG-2000 Series User Manual
22

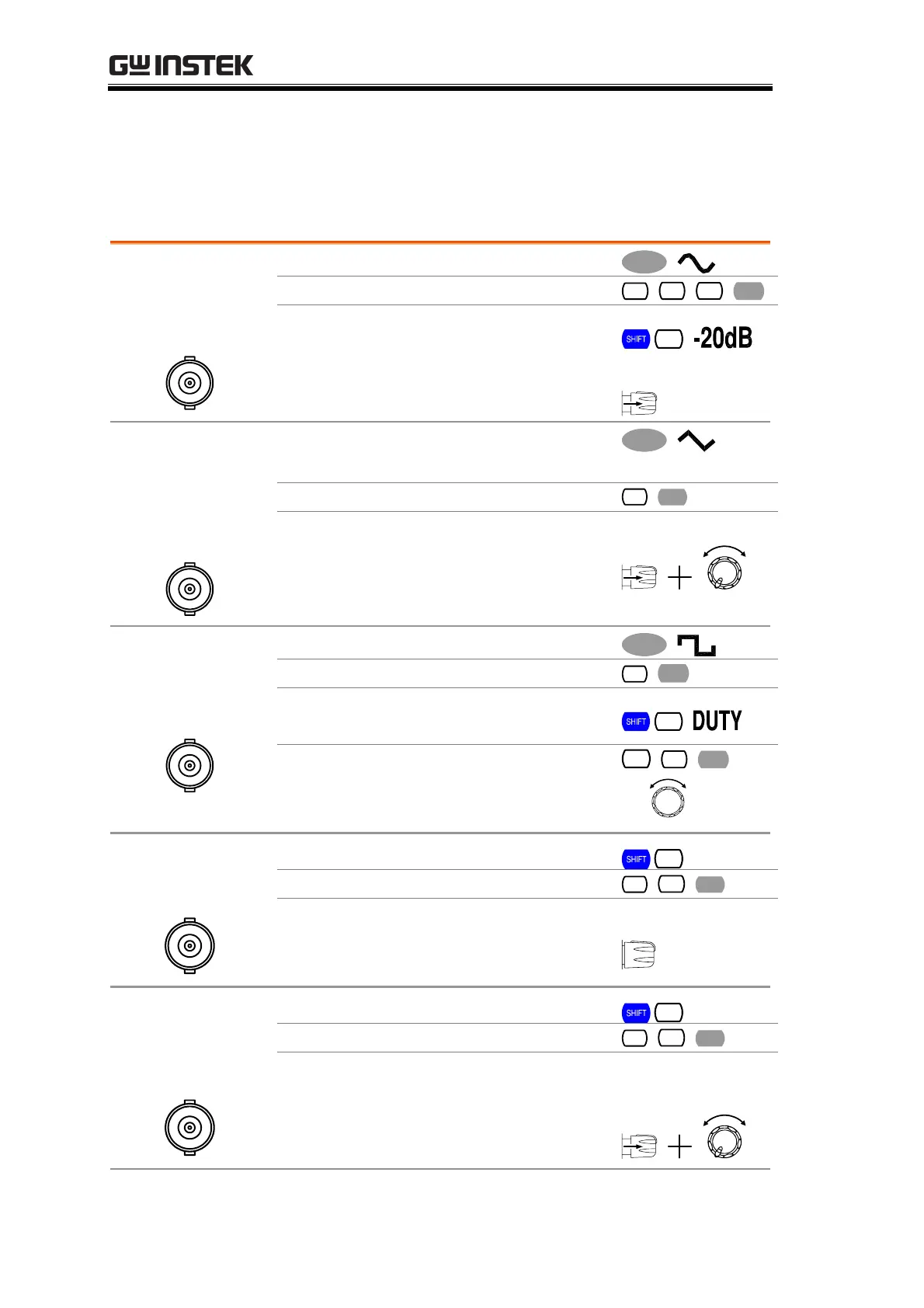

Operation Shortcuts
Here are the collections of operation example shortcuts.
1. Press Wave key and select Sine
WAVE
2. Press 2 + 5 + 0 + Hz/% key
2
5
0
Hz/%
Sine wave 250Hz,
−20dB amplitude
OUTPUT
50 Ω
3. Press Shift + 8 key (−20dB)
...Or pull Amplitude knob
−20dB
8
or AMPL ADJ
1. Press Wave key and select
Triangle
WAVE
2. Press 8 + kHz key
8
kHz
Triangle wave
8kHz,
+2V Offset
OUTPUT
50 Ω
3. Pull Offset knob (ADJ) and
Rotate
OFFSET ADJ
1. Press Wave key and select Square
WAVE
2. Press 1 + MHz key
1
MHz
3. Press Shift + 7 key (Duty)
DUTY
7
Square Wave
1MHz, 45% duty
OUTPUT
50 Ω
4. Press 4 + 5 + Hz/% key
...Or Rotate the Scroll knob
4
5
Hz/%
or
1. Press Shift + 9 key (TTL)
TTL
9
TTL
2. Press 1 + 0 + kHz key
1
0
kHz
TTL Output 10kHz
TTL/CMOS
OUTPUT
3. Press TTL/CMOS knob (TTL)
TTL/CMOS (TTL)
1. Press Shift + 9 key (TTL)
TTL
9
TTL
2. Press 1 + 0 + kHz key
1
0
kHz
CMOS Out 10kHz,
10Vpp
TTL/CMOS
OUTPUT
3. Pull TTL/CMOS knob (CMOS)
and rotate
TTL/CMOS
(CMOS)
