BELT ADJUSTMENT

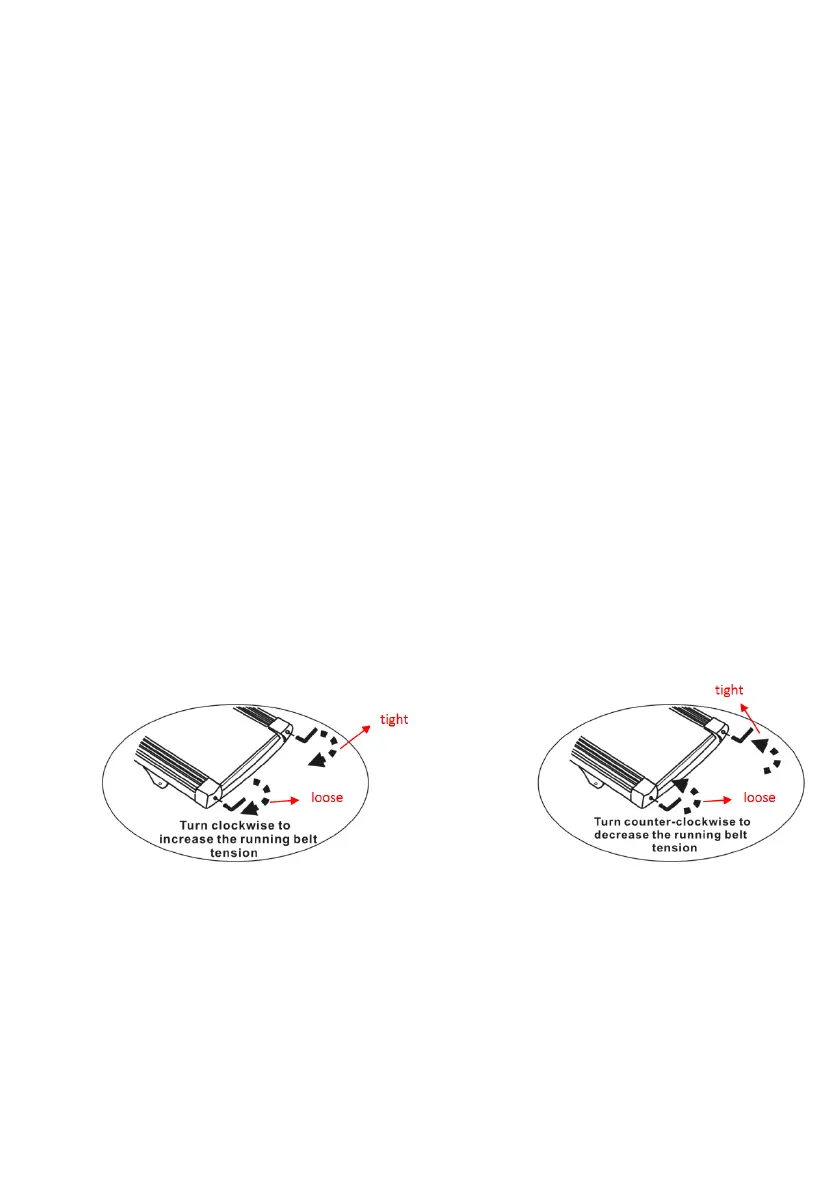

-Clockwise rotation tightens the bolt.

-Counterclockwise rotation loosens the bolt.

-The running belt will shift towards the looser side.

①If the running belt shifts to the left:

This indicates that the left side is too loose.

Adjust the left bolt clockwise to tighten the left side.

Alternatively, adjust the right screw counterclockwise to loosen the right side.

②If the running belt shifts to the right:

This indicates that the right side is too loose.

Adjust the right bolt clockwise to tighten the right side.

Alternatively, adjust the left screw counterclockwise to loosen the left side.

Remember to make small adjustments at a time and test the belt alignment after each

adjustment. Find the proper balance where the belt remains centered during operation.
